Model # DW140 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DW140 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

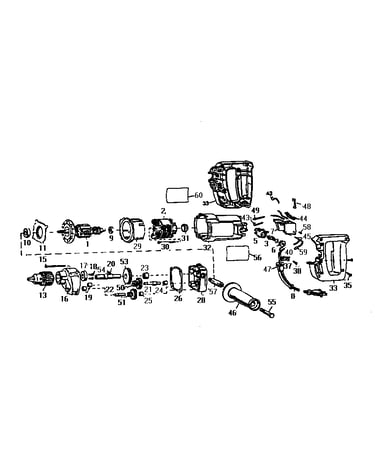

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Craftsman Gear 450492-00
#50

Unit parts diagram

Craftsman gear

Part #450492-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Screw, #6-19 X 5/8-in 330013-03
#38

Unit parts diagram

Power tool screw, #6-19 x 5/8-in

Part #330013-03

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 330003-09
#10

Unit parts diagram

Power tool bearing

Part #330003-09

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp 86634-00
#37

Unit parts diagram

Cord clamp

Part #86634-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 330005-01
#47

Unit parts diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 445217-02
#31

Unit parts diagram

Sleeve

Part #445217-02

The manufacturer no longer makes this part, and there's no substitute part

Gasket 450485-00
#26

Unit parts diagram

Gasket

Part #450485-00

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Motor Brush Cap 448084-01
#6

Unit parts diagram

Reciprocating saw motor brush cap

Part #448084-01

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Gear And Pinion 449489-02
#21

Unit parts diagram

Craftsman gear and pinion

Part #449489-02

The manufacturer no longer makes this part, and there's no substitute part

Key 7027-00
#54

Unit parts diagram

Key

Part #7027-00

The manufacturer no longer makes this part, and there's no substitute part
