Model # NULS125AK03 Official ICP condensing gas furnace

Here are the diagrams and repair parts for Official ICP NULS125AK03 condensing gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Capacitor 602974
#6

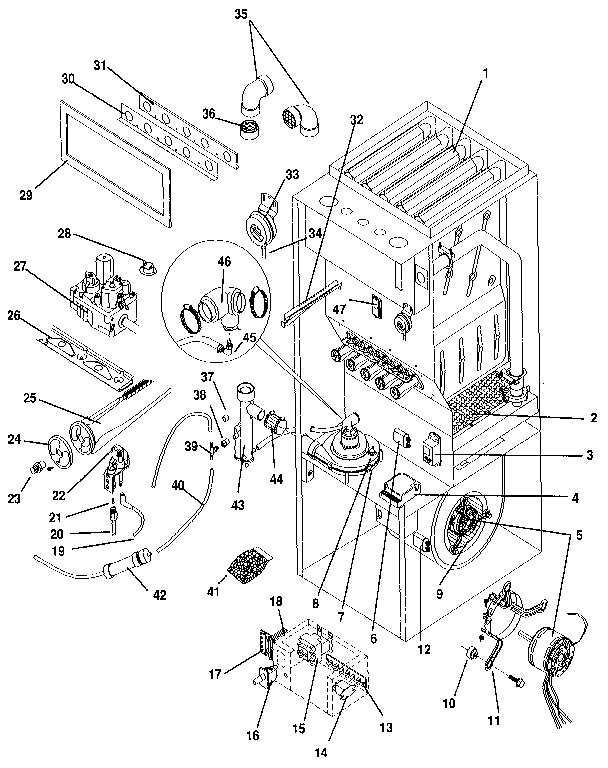

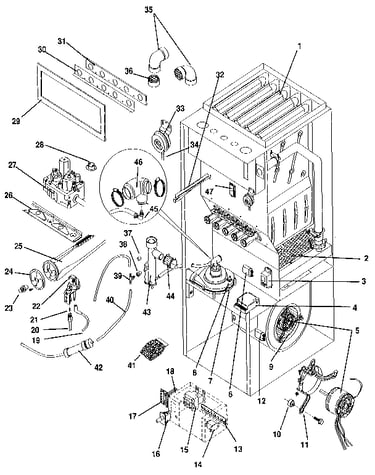

Functional replacement parts diagram

Capacitor

Part #602974

Replaced by #12005

?
Manufacturer substitution
This part replaces 602974. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Furnace Fan Control Relay 1000742
#14

Functional replacement parts diagram

Furnace fan control relay

Part #1000742

$35.62 |
14% OFF Phone Price : $41.62
In Stock
Furnace Blower 1005568
#7

Functional replacement parts diagram

Furnace blower

Part #1005568

Replaced by #1011350

?
Manufacturer substitution
This part replaces 1005568. Substitute parts can look different from the original.
$636.16 |
$12.00 OFF Phone Price : $648.16
In Stock
Igniter Pilo 1007576
#22

Functional replacement parts diagram

Igniter pilo

Part #1007576

The manufacturer no longer makes this part, and there's no substitute part

Dpdt Relay 96467
#15

Functional replacement parts diagram

Dpdt relay

Part #96467

The manufacturer no longer makes this part, and there's no substitute part

Prssr Tap 1005606
#14

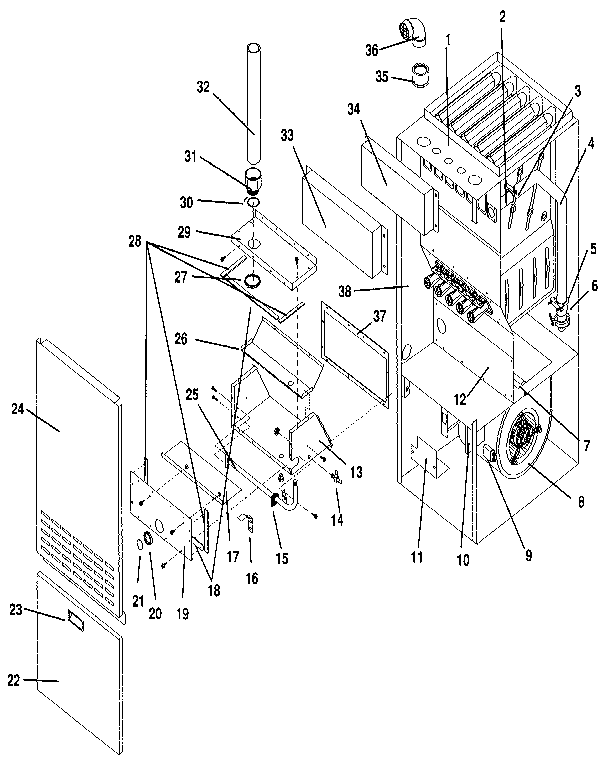

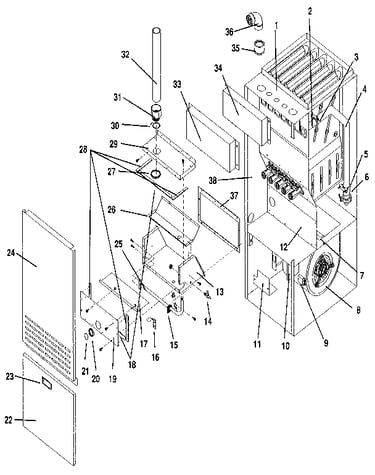

Non-functional replacement parts diagram

Prssr tap

Part #1005606

This item is not returnable
$3.46
In Stock
Gasket 1000467
#29

Functional replacement parts diagram

Gasket

Part #1000467

$9.03
In Stock
Prssr Swtch 1005605
#33

Functional replacement parts diagram

Prssr swtch

Part #1005605

$106.32
In Stock
Adapter 1000471
#2

Non-functional replacement parts diagram

Adapter

Part #1000471

$65.24
In Stock
Furnace Burner Roll-out Limit Switch 522559
#28

Functional replacement parts diagram

Furnace burner roll-out limit switch

Part #522559

$31.84 |
16% OFF Phone Price : $37.84
In Stock
