Model # ARHF24-U01A/P69568-2C Official Amana condensing unit - arhf series

Here are the diagrams and repair parts for Official Amana ARHF24-U01A-P69568-2C condensing unit - arhf series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Wire Joint A0317601
#17

Preform coil assembly diagram

Wire joint

Part #A0317601

Replaced by #WPA0317601

?
Manufacturer substitution
This part replaces A0317601. Substitute parts can look different from the original.
This item is not returnable
$6.29
In Stock
Screw M0211003
#15

Preform coil assembly diagram

Screw

Part #M0211003

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0211003. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Cord Clip M0104101
#36

Preform coil assembly diagram

Cord clip

Part #M0104101

Replaced by #WPM0104106

?
Manufacturer substitution
This part replaces M0104101. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Gasket, Control Box B1379401
#10

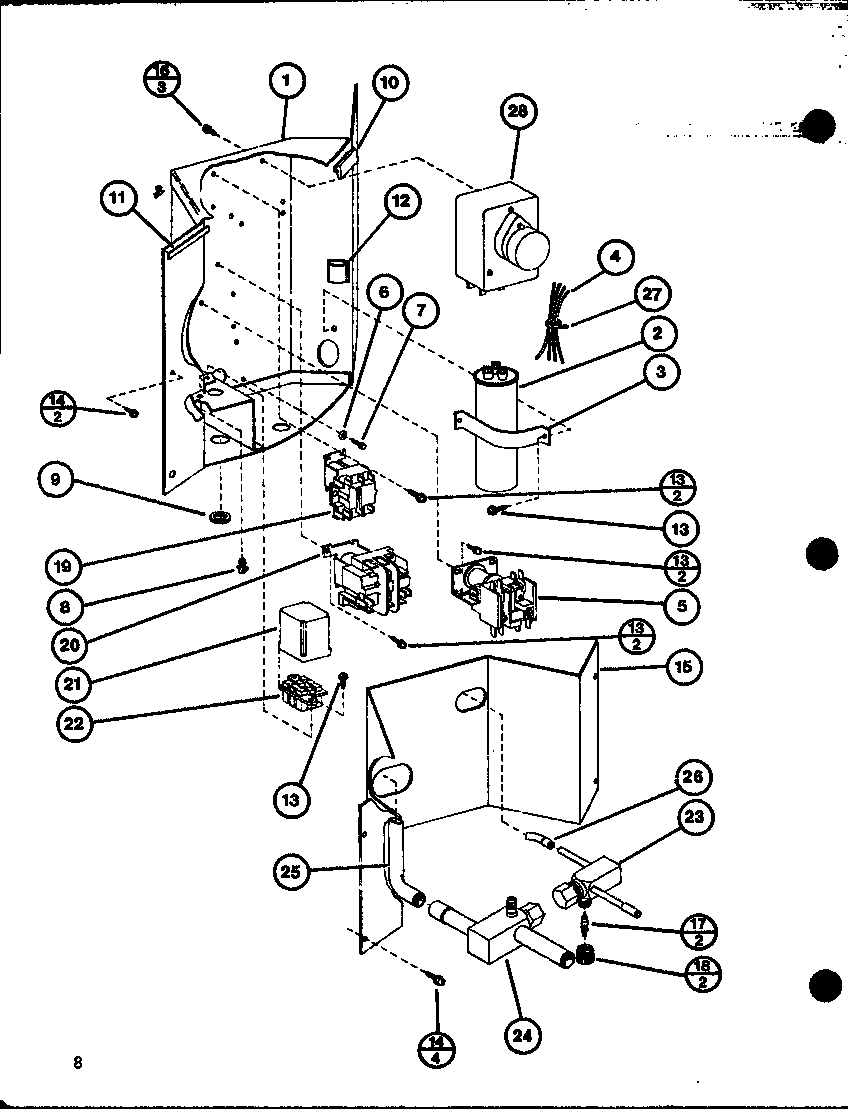

Control box diagram

Gasket, control box

Part #B1379401

The manufacturer no longer makes this part, and there's no substitute part

Heater Retainer B1389901
#8B

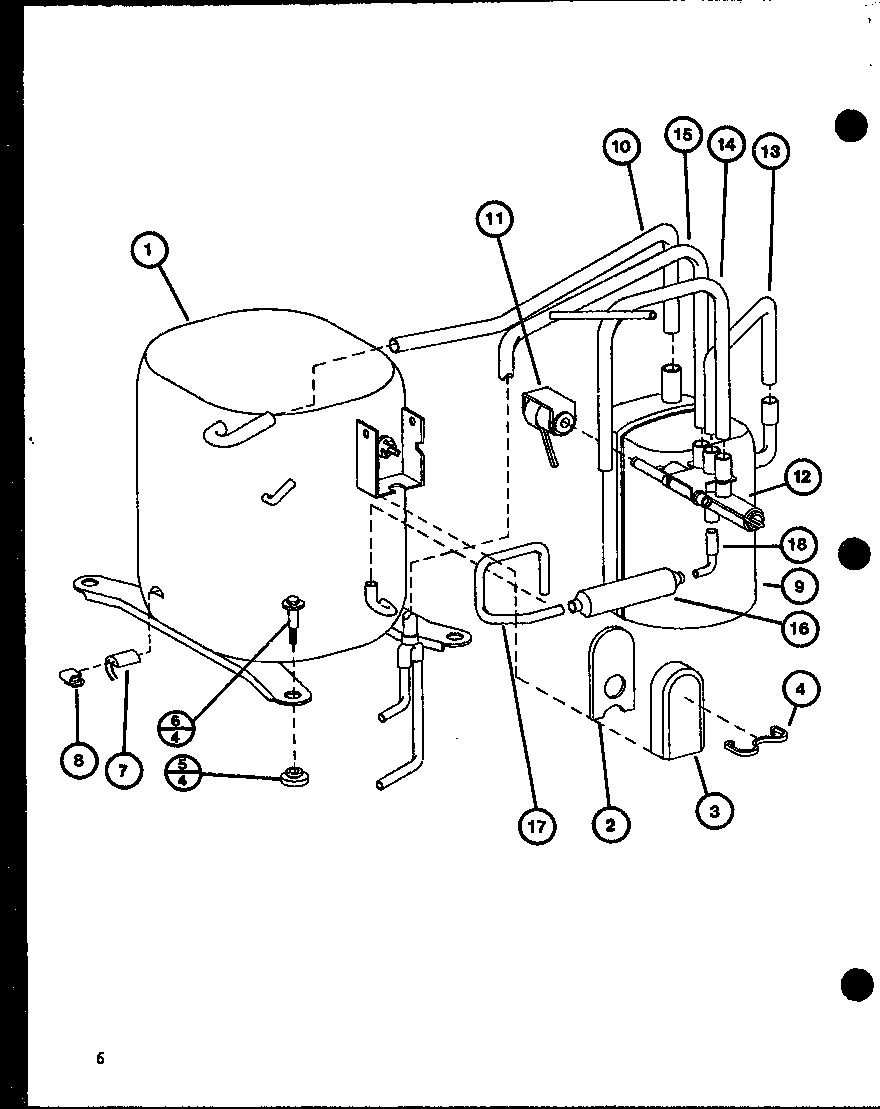

Compressor diagram

Heater retainer

Part #B1389901

The manufacturer no longer makes this part, and there's no substitute part

Screw M0228029
#16

Control box diagram

Screw

Part #M0228029

The manufacturer no longer makes this part, and there's no substitute part

Strainer B4768804
#10A

Preform coil assembly diagram

Strainer

Part #B4768804

The manufacturer no longer makes this part, and there's no substitute part

Compressor, 208/230 V., 60 Hz, 10, Copeland Crf2-0250-pf D6852501
#1C

Compressor diagram

Compressor, 208/230 v., 60 hz, 10, copeland crf2-0250-pf

Part #D6852501

The manufacturer no longer makes this part, and there's no substitute part

Gasket A3410801
#2A

Compressor diagram

Gasket

Part #A3410801

The manufacturer no longer makes this part, and there's no substitute part

Brace - Ign. Control M0104102
#12

Control box diagram

Brace - ign. control

Part #M0104102

The manufacturer no longer makes this part, and there's no substitute part
