Ryobi
Power Sander

Model # SU-6200 Official Ryobi sander

Here are the diagrams and repair parts for Official Ryobi SU-6200 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Switch 6550249
#14

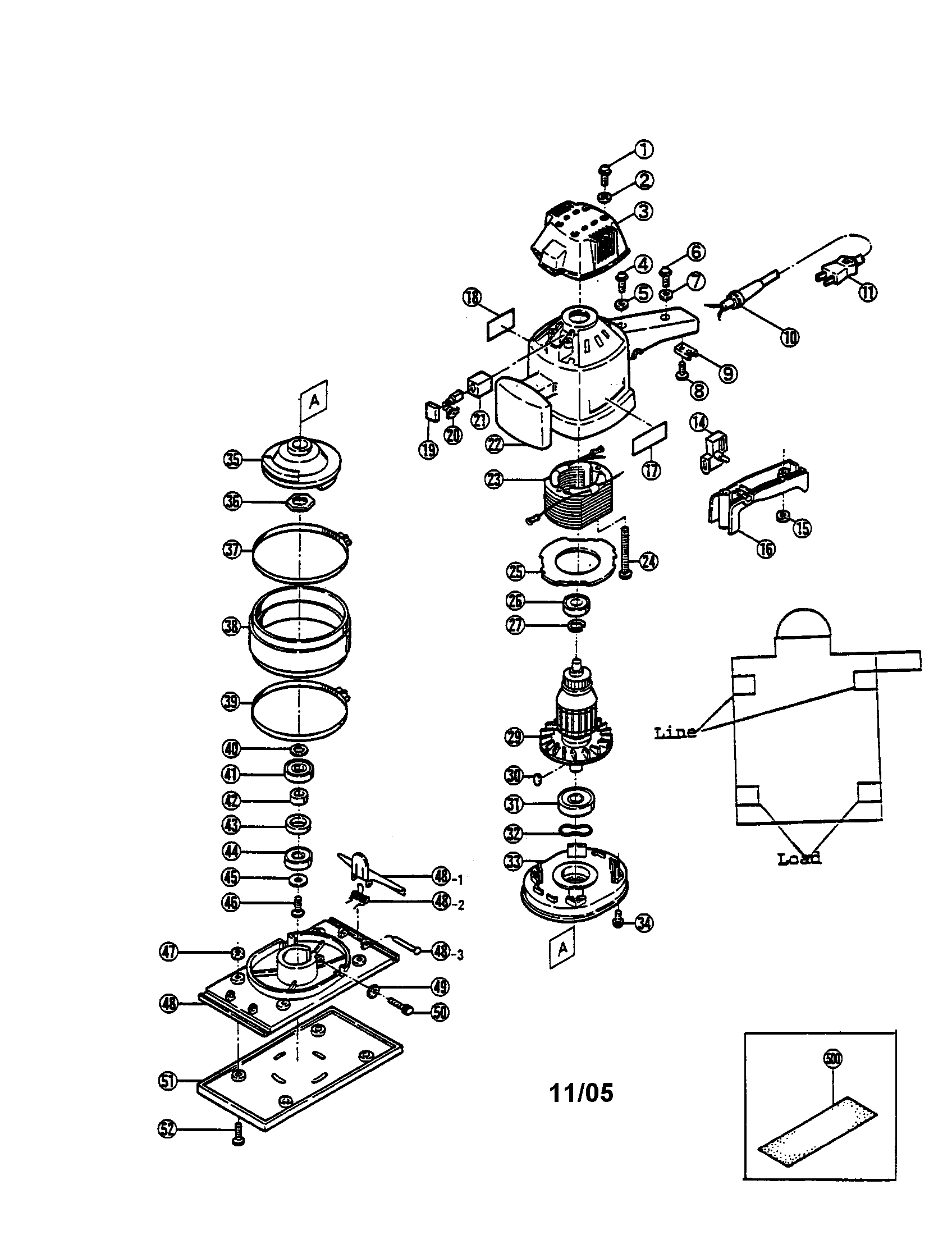

Sander diagram

Switch

Part #6550249

The manufacturer no longer makes this part, and there's no substitute part

Washer 9560400
Washer

Part #9560400

The manufacturer no longer makes this part, and there's no substitute part

Key 6100084
#30

Sander diagram

Key

Part #6100084

The manufacturer no longer makes this part, and there's no substitute part

Guard Assembly (see Page 6)) N/P
#500

Sander diagram

Guard assembly (see page 6))

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Screw 9060414
#8

Sander diagram

Screw

Part #9060414

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 9310400
#15

Sander diagram

Hex nut

Part #9310400

The manufacturer no longer makes this part, and there's no substitute part

Pan Screw 9020418
#1

Sander diagram

Pan screw

Part #9020418

The manufacturer no longer makes this part, and there's no substitute part

Bowl Assembly 6080431
#48

Sander diagram

Bowl assembly

Part #6080431

The manufacturer no longer makes this part, and there's no substitute part

Clamp Shaft 6100083
#48-3

Sander diagram

Clamp shaft

Part #6100083

The manufacturer no longer makes this part, and there's no substitute part

Holder 6570022
#21

Sander diagram

Holder

Part #6570022

The manufacturer no longer makes this part, and there's no substitute part
