Model # KDL-55NX810 Official Sony led television

Here are the diagrams and repair parts for Official Sony KDL-55NX810 led television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Scrw M5x20 345281501
#4

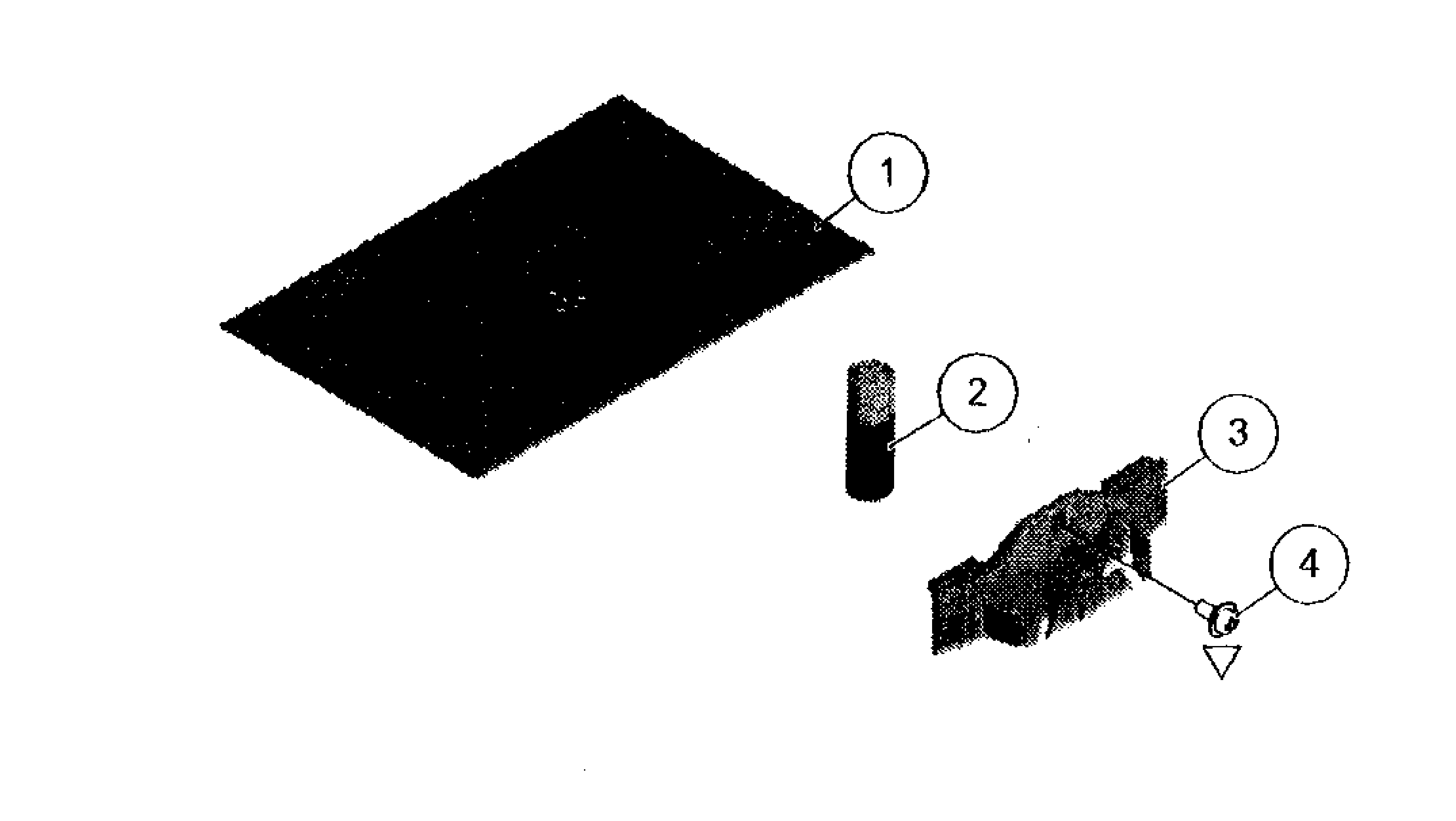

Stand diagram

Scrw m5x20

Part #345281501

The manufacturer no longer makes this part, and there's no substitute part

Power Sw 179834811
#57

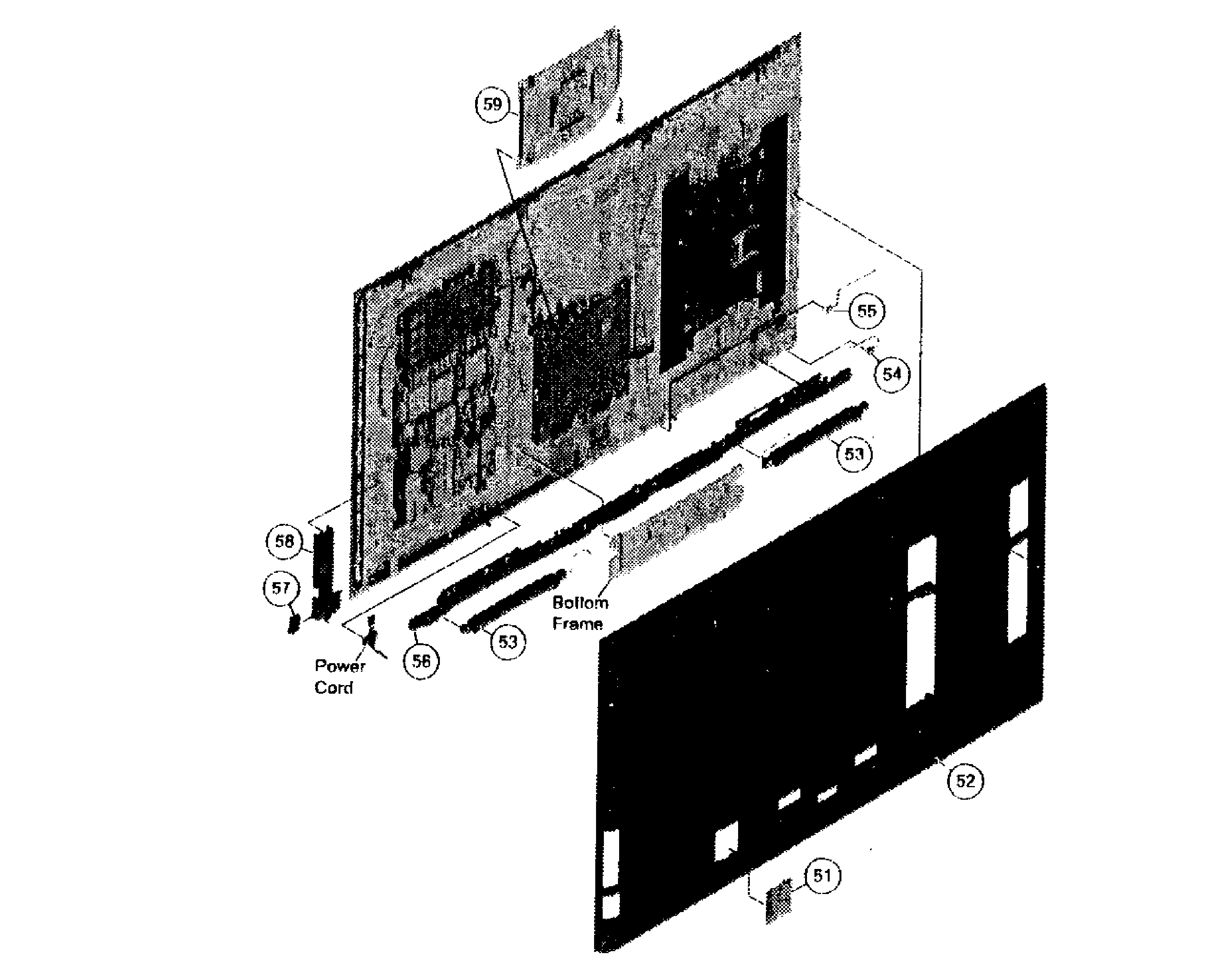

Cabinet parts diagram

Power sw

Part #179834811

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker Assembly 185846911
#53

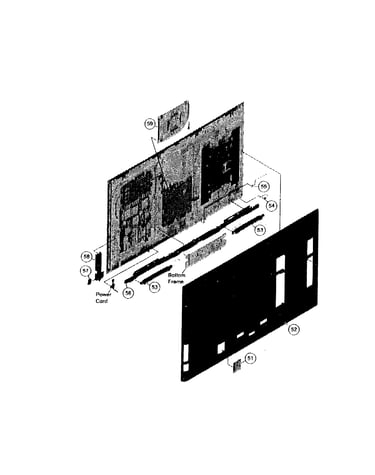

Cabinet parts diagram

Television speaker assembly

Part #185846911

The manufacturer no longer makes this part, and there's no substitute part

Cable 8p 191010181
#206

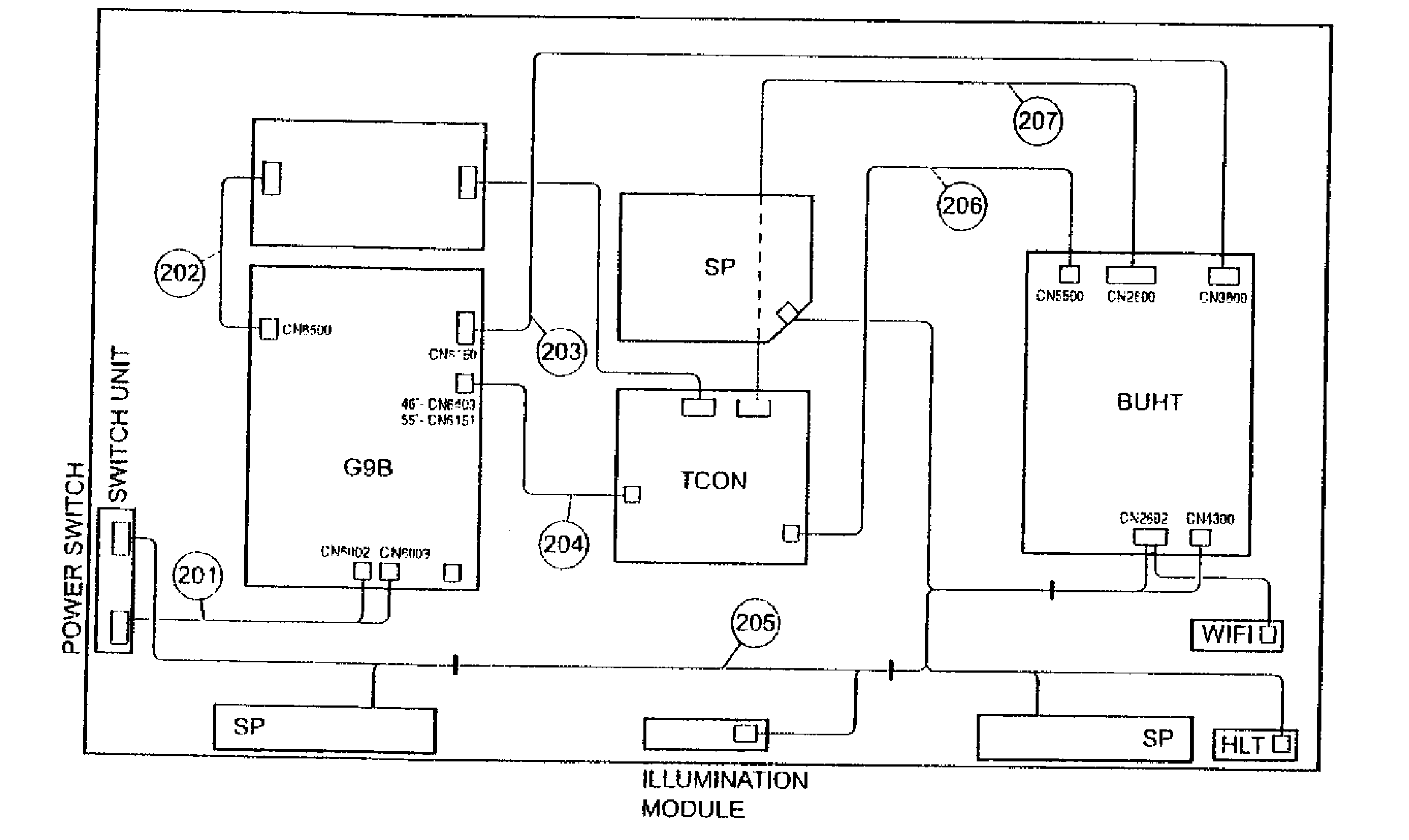

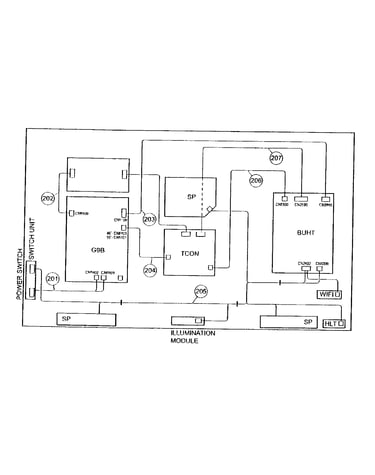

Connectors diagram

Cable 8p

Part #191010181

The manufacturer no longer makes this part, and there's no substitute part

Hlt Pcb A1782538A
#105

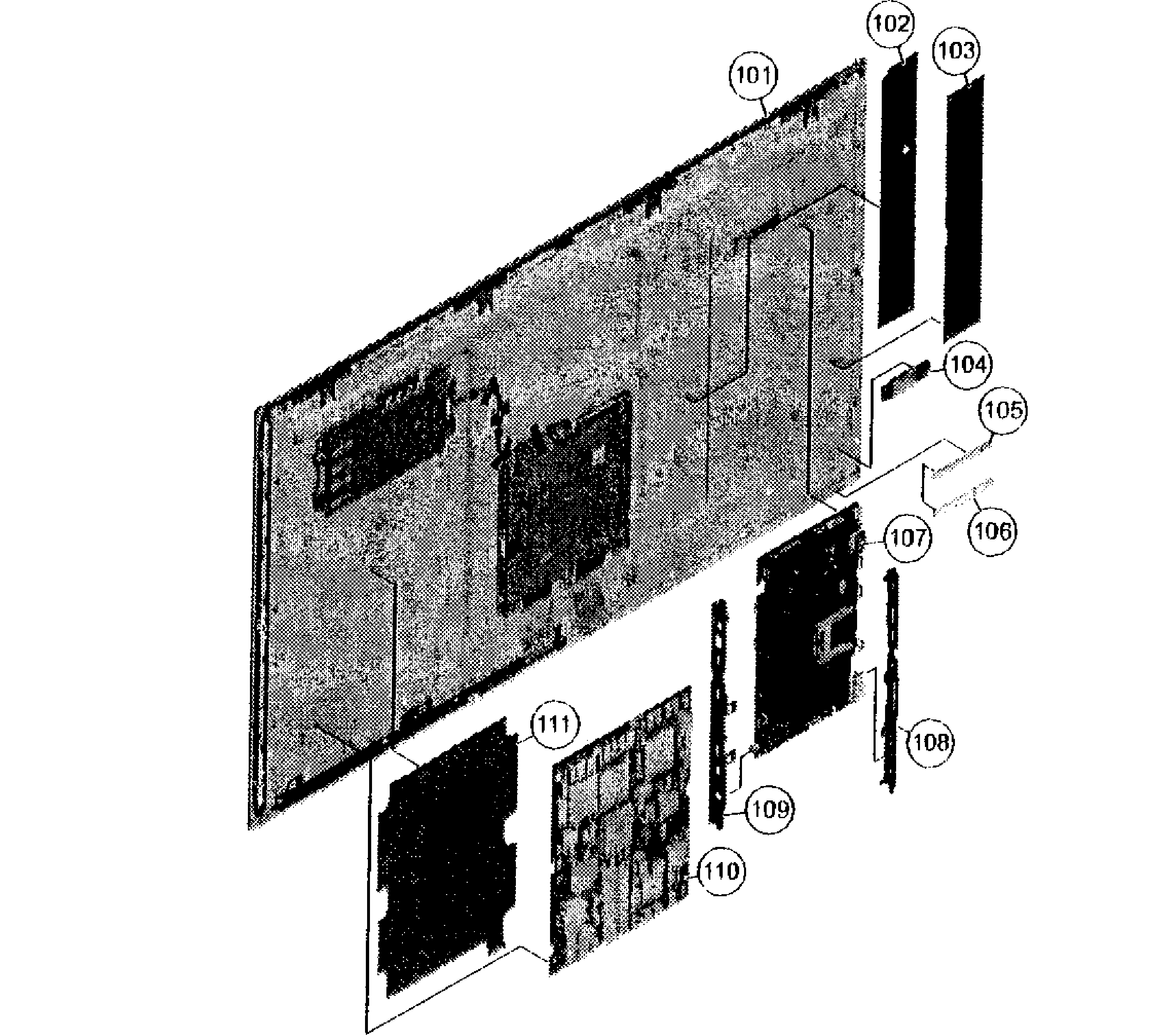

Lcd assy diagram

Hlt pcb

Part #A1782538A

The manufacturer no longer makes this part, and there's no substitute part

Insulation Sheet 418869001
#111

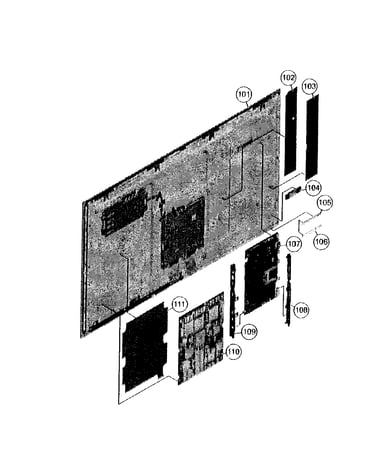

Lcd assy diagram

Insulation sheet

Part #418869001

The manufacturer no longer makes this part, and there's no substitute part

Scotch Tape 763245224
#NI

Stand diagram

Scotch tape

Part #763245224

The manufacturer no longer makes this part, and there's no substitute part

Kit Belt X23481403
#NI

Stand diagram

Kit belt

Part #X23481403

The manufacturer no longer makes this part, and there's no substitute part

Screw Bag X25483101
#NI

Stand diagram

Screw bag

Part #X25483101

The manufacturer no longer makes this part, and there's no substitute part

Tape,white 760003196
#NI

Stand diagram

Tape,white

Part #760003196

The manufacturer no longer makes this part, and there's no substitute part
