Model # 143993504 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 143993504 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Troybilt Lawn & Garden Equipment Engine Air Filter 35066
#245

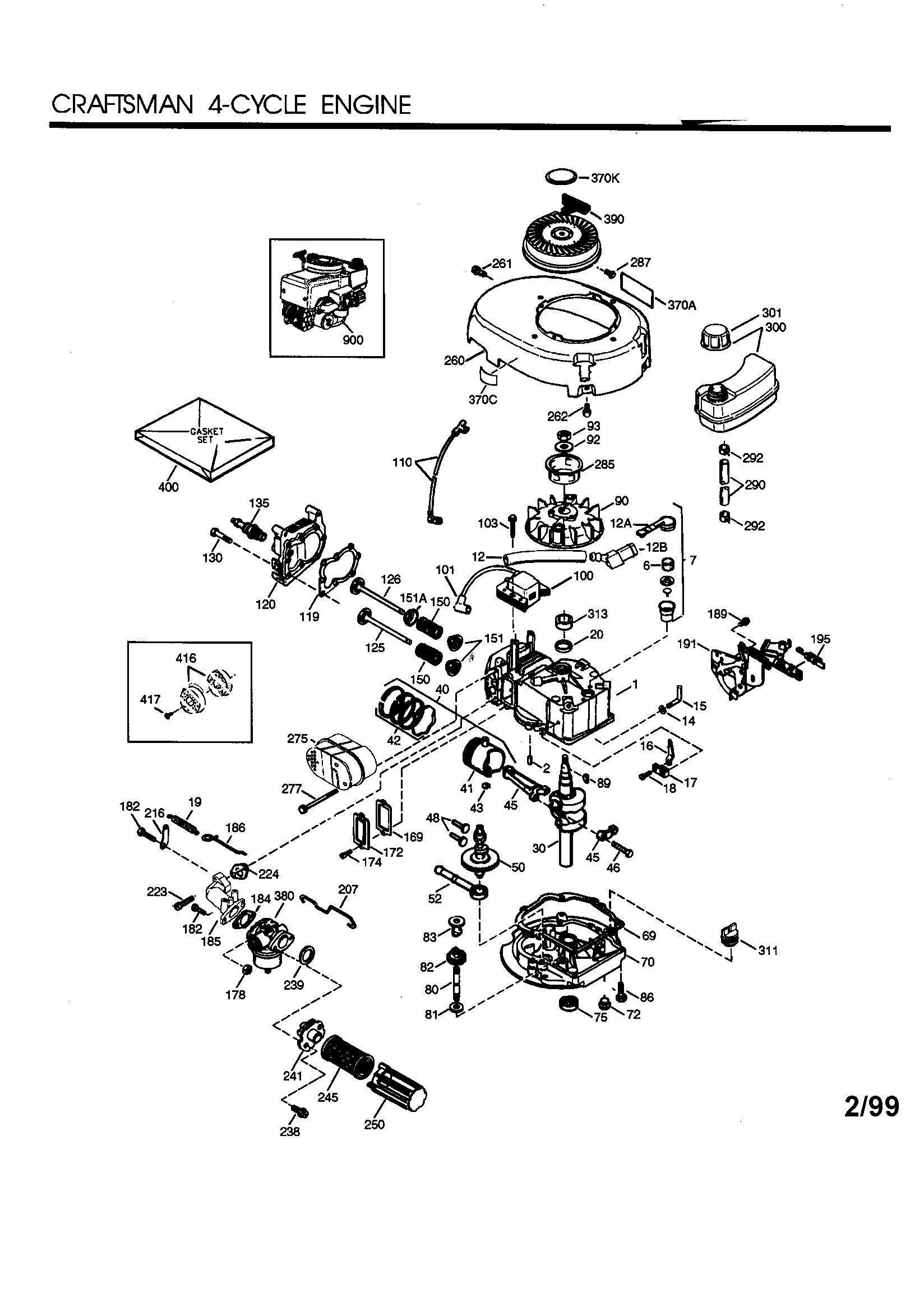

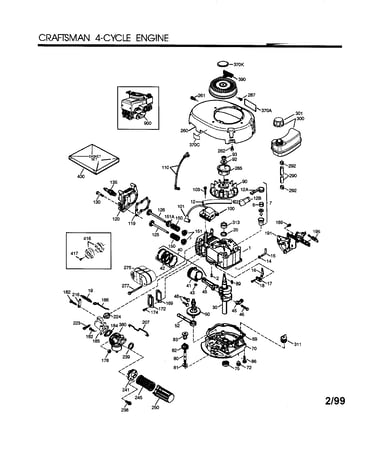

Craftsman 4-cycle engine diagram

Troybilt lawn & garden equipment engine air filter

Part #35066

BEST SELLER
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Lawn Mower O-ring 631028
#29

Carburetor 640174 diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Carburetor Primer Bulb (replaces 49-085) 36045A
#35

Carburetor 640174 diagram

Lawn & garden equipment engine carburetor primer bulb (replaces 49-085)

Part #36045A

BEST SELLER
This item is not returnable
$6.74 |
13% OFF Phone Price : $7.74
In Stock
Troybilt Lawn & Garden Equipment Engine Carburetor Gasket (replaces 27141) 26756
#184

Craftsman 4-cycle engine diagram

Troybilt lawn & garden equipment engine carburetor gasket (replaces 27141)

Part #26756

BEST SELLER
This item is not returnable
$3.64 |
22% OFF Phone Price : $4.64
In Stock
Starter 590737
Starter

Part #590737

Replaced by #590785

?
Manufacturer substitution
This part replaces 590737. Substitute parts can look different from the original.
BEST SELLER
$29.58 |
17% OFF Phone Price : $35.58
Back Order
Starter 590694
#0

Starter 590694 (71/143) diagram

Starter

Part #590694

Replaced by #590785

?
Manufacturer substitution
This part replaces 590694. Substitute parts can look different from the original.
BEST SELLER
$29.58 |
17% OFF Phone Price : $35.58
Back Order
Lawn & Garden Equipment Engine Recoil Starter Housing 590695A
#11

Starter 590694 (71/143) diagram

Lawn & garden equipment engine recoil starter housing

Part #590695A

Replaced by #590785

?
Manufacturer substitution
This part replaces 590695A. Substitute parts can look different from the original.
BEST SELLER
$29.58 |
17% OFF Phone Price : $35.58
Back Order
Lawn & Garden Equipment Engine Recoil Starter Rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032) 590535
Lawn & garden equipment engine recoil starter rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032)

Part #590535

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Carburetor Float Bowl Washer (replaces 49-084) 27110A
#44

Carburetor 640174 diagram

Lawn & garden equipment engine carburetor float bowl washer (replaces 49-084)

Part #27110A

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Line 34357
#290

Craftsman 4-cycle engine diagram

Line

Part #34357

Replaced by #29774

?
Manufacturer substitution
This part replaces 34357. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
