Gibson
Room Air Conditioner

Model # GAC105P1A1 Official Gibson air conditioner

Here are the diagrams and repair parts for Official Gibson GAC105P1A1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

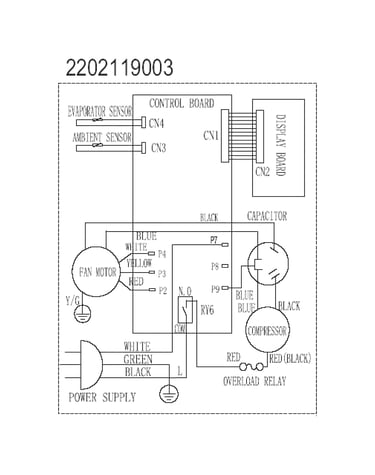

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |
Remote Control 5304461506
#3

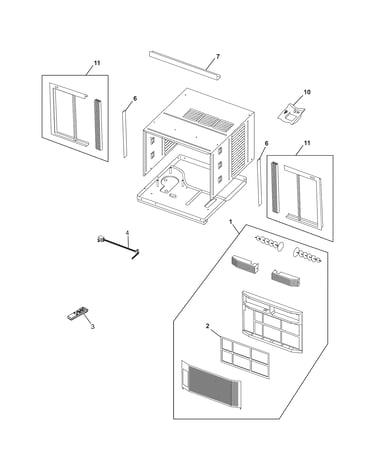

Recommended spare parts diagram

Remote control

Part #5304461506

The manufacturer no longer makes this part, and there's no substitute part

Window Filter 5304462059
#11

Recommended spare parts diagram

Window filter

Part #5304462059

The manufacturer no longer makes this part, and there's no substitute part

Hardware Kit 5304458023
#10

Recommended spare parts diagram

Hardware kit

Part #5304458023

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 5304455561
#4

Recommended spare parts diagram

Power cord

Part #5304455561

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Track Rail 5304436549
#7

Recommended spare parts diagram

Room air conditioner track rail

Part #5304436549

The manufacturer no longer makes this part, and there's no substitute part

Front Assembly 5304461509
#1

Recommended spare parts diagram

Front assembly

Part #5304461509

The manufacturer no longer makes this part, and there's no substitute part

Filter 5304461705
#2

Recommended spare parts diagram

Filter

Part #5304461705

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Accordion Rail 5304436547
#6

Recommended spare parts diagram

Room air conditioner accordion rail

Part #5304436547

The manufacturer no longer makes this part, and there's no substitute part
