Model # CH5060VKA1 Official ICP heat pump

Here are the diagrams and repair parts for Official ICP CH5060VKA1 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

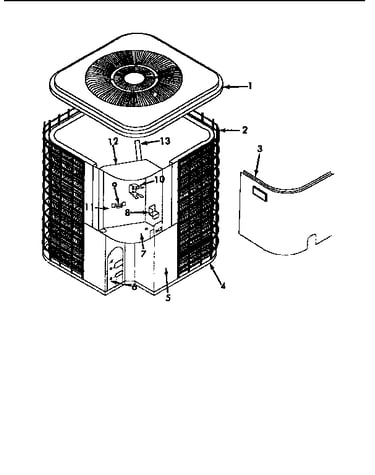

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Contactor 1050839
#8

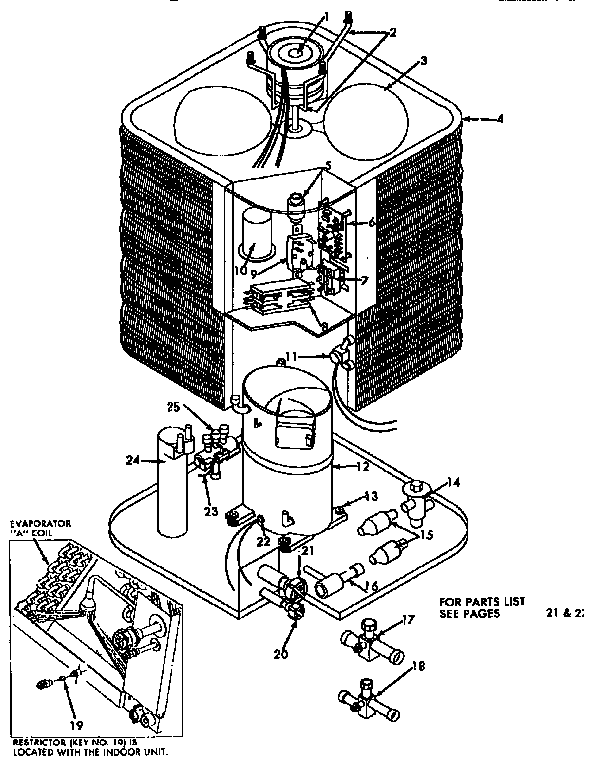

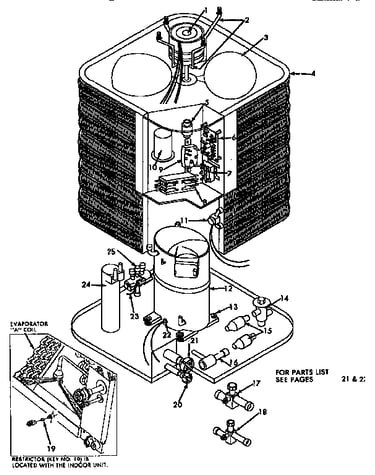

Functional parts diagram

Contactor

Part #1050839

Replaced by #94-394

?
Manufacturer substitution
This part replaces 1050839. Substitute parts can look different from the original.
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Dpdt Relay 96467
#7

Functional parts diagram

Dpdt relay

Part #96467

The manufacturer no longer makes this part, and there's no substitute part

Sensor 1053015
#11

Functional parts diagram

Sensor

Part #1053015

Replaced by #1172766

?
Manufacturer substitution
This part replaces 1053015. Substitute parts can look different from the original.
$28.80 |
17% OFF Phone Price : $34.80
In Stock
Fan Motor 1052820
#1

Functional parts diagram

Fan motor

Part #1052820

$521.22
In Stock
Check Valve 1052910
#16

Functional parts diagram

Check valve

Part #1052910

$84.67
In Stock
Heater 708849
#22

Functional parts diagram

Heater

Part #708849

Replaced by #1053477

?
Manufacturer substitution
This part replaces 708849. Substitute parts can look different from the original.
$152.12
In Stock
Motor Mount 1052968
#2

Functional parts diagram

Motor mount

Part #1052968

Replaced by #1081813

?
Manufacturer substitution
This part replaces 1052968. Substitute parts can look different from the original.
$463.42
In Stock
Revers Valve 1051296
#25

Functional parts diagram

Revers valve

Part #1051296

Replaced by #V10-414080-170

?
Manufacturer substitution
This part replaces 1051296. Substitute parts can look different from the original.
$366.15
In Stock
Spst Relay 1053004
#9

Functional parts diagram

Spst relay

Part #1053004

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 1050856
#10

Functional parts diagram

Capacitor

Part #1050856

Replaced by #STD379455

?
Manufacturer substitution
This part replaces 1050856. Substitute parts can look different from the original.
$40.49
In Stock
