Model # NUOD112DG02 Official ICP oil-fired furnace

Here are the diagrams and repair parts for Official ICP NUOD112DG02 oil-fired furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

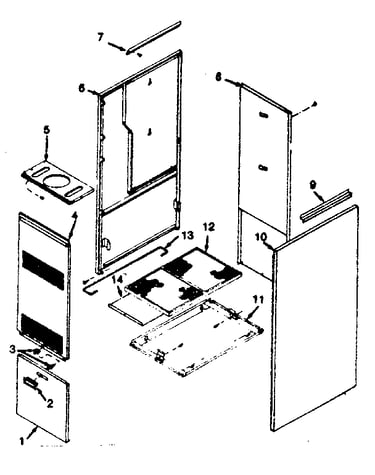

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 114 parts |

#NI

All parts diagram

Fan relay

Part #92840

The manufacturer no longer makes this part, and there's no substitute part

#13

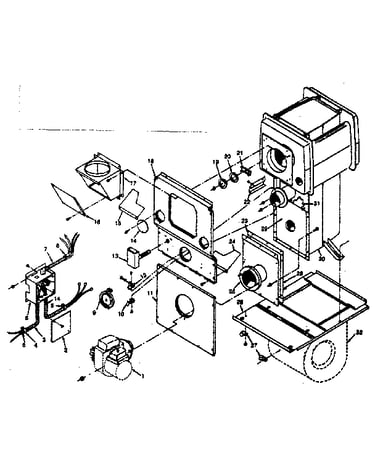

Functional replacement parts diagram

Control

Part #91800

The manufacturer no longer makes this part, and there's no substitute part

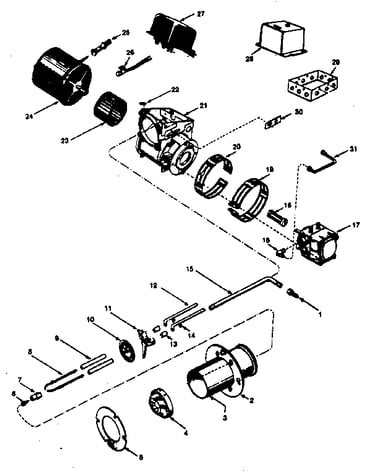

Burner assembly diagram

Nozzle

Part #64605

The manufacturer no longer makes this part, and there's no substitute part

#18

Burner assembly diagram

Coupling

Part #610466

$31.62

In Stock

Qty

#10B

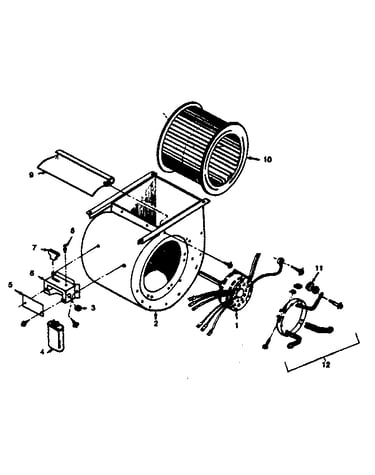

Blower assembly diagram

Furnace blower fan wheel

Part #601210

$194.16

In Stock

Qty

Furnace Blower Fan Motor Mounting Kit 609227

#12

Blower assembly diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60

In Stock

Qty

Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587

#10A

Blower assembly diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |

8% OFF Phone Price : $142.20

In Stock

Qty

#23

Functional replacement parts diagram

Gasket

Part #602104

Replaced by #1007882

$93.62

In Stock

Qty

#NI

All parts diagram

Transformer

Part #608260

The manufacturer no longer makes this part, and there's no substitute part

#28

Functional replacement parts diagram

Gasket

Part #602105

Replaced by #1007882

$93.62

In Stock

Qty
