Model # CLD-D703 Official Pioneer cd player

Here are the diagrams and repair parts for Official Pioneer CLD-D703 cd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Plate VNE1102
#24

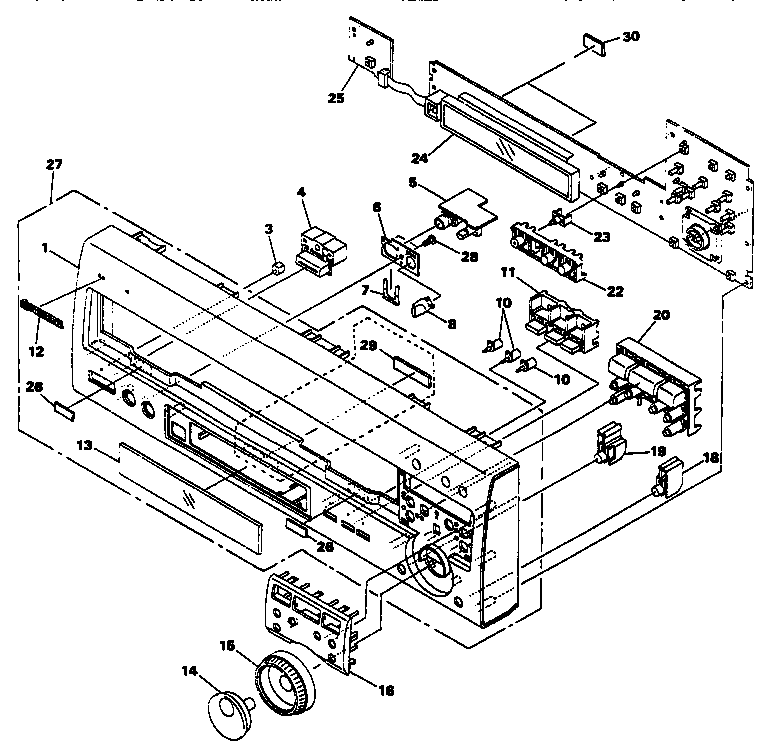

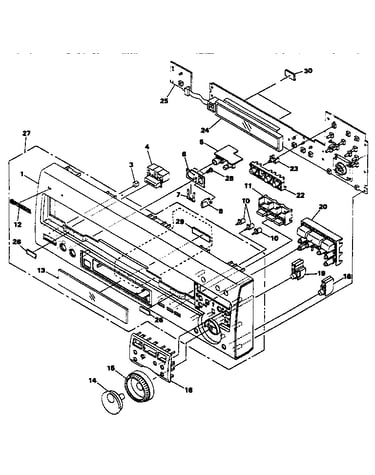

Front panel section diagram

Plate

Part #VNE1102

The manufacturer no longer makes this part, and there's no substitute part

Pioneer Cushion (spo VEC1331
#20

Front panel section diagram

Pioneer cushion (spo

Part #VEC1331

The manufacturer no longer makes this part, and there's no substitute part

Loc-1:front Panel VNK2637
#1

Front panel section diagram

Loc-1:front panel

Part #VNK2637

The manufacturer no longer makes this part, and there's no substitute part

Remote VXX2031

#NI

All parts diagram

Remote

Part #VXX2031

The manufacturer no longer makes this part, and there's no substitute part

Loc-3:owners Manual VRB1108

#NI

All parts diagram

Loc-3:owners manual

Part #VRB1108

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly VWG1516
#14

Front panel section diagram

Pcb assembly

Part #VWG1516

The manufacturer no longer makes this part, and there's no substitute part

Loc-11:l Key VNK2361
#3

Front panel section diagram

Loc-11:l key

Part #VNK2361

The manufacturer no longer makes this part, and there's no substitute part

Lens VNK2316
#13

Front panel section diagram

Lens

Part #VNK2316

The manufacturer no longer makes this part, and there's no substitute part

Loc-10:led Lens VNK1755
#2

Front panel section diagram

Loc-10:led lens

Part #VNK1755

The manufacturer no longer makes this part, and there's no substitute part

Lens PNW2019
#19

Front panel section diagram

Lens

Part #PNW2019

The manufacturer no longer makes this part, and there's no substitute part
