Gibson
Room Air Conditioner

Model # GAL103K1A1 Official Gibson air conditioner

Here are the diagrams and repair parts for Official Gibson GAL103K1A1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

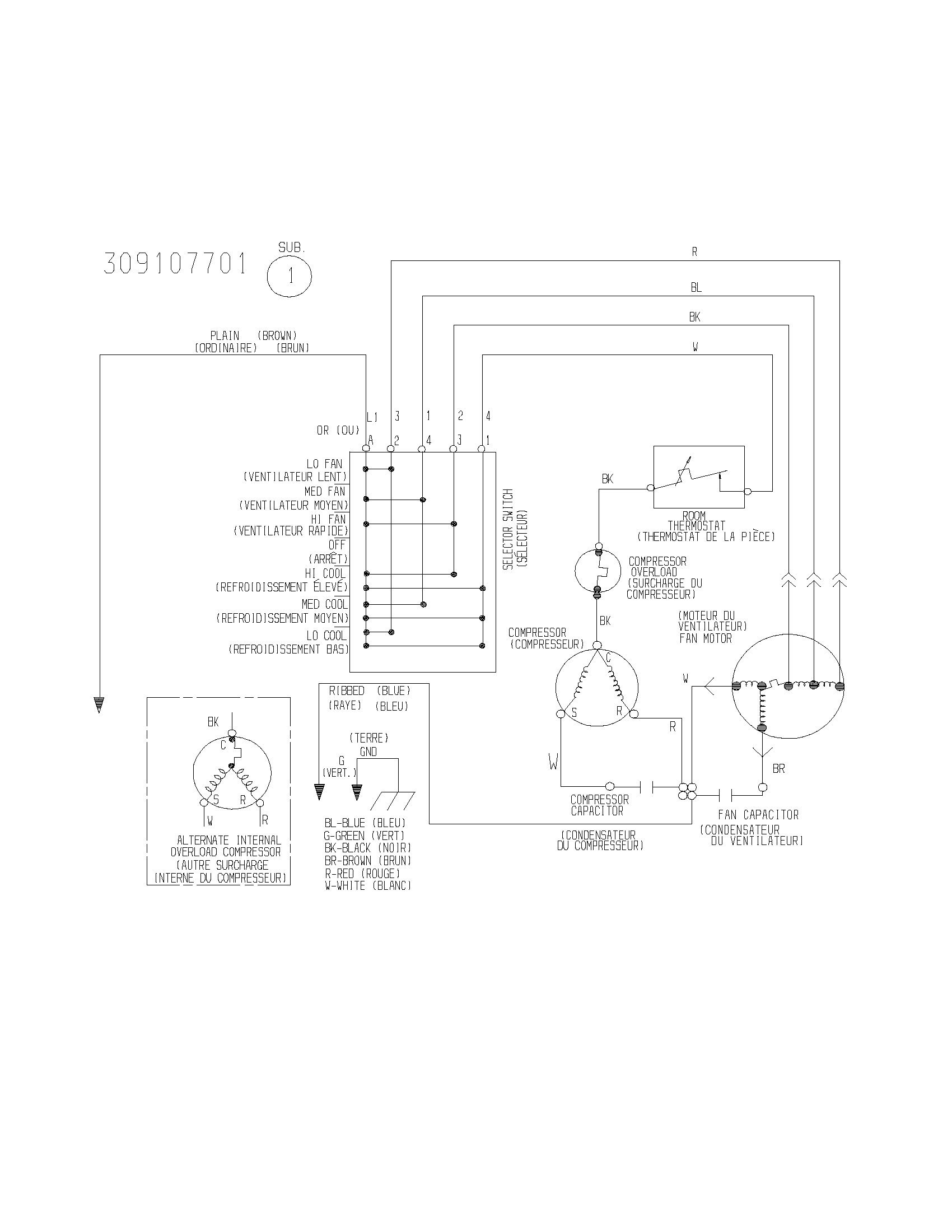

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Bracket Screw 3015312
#14

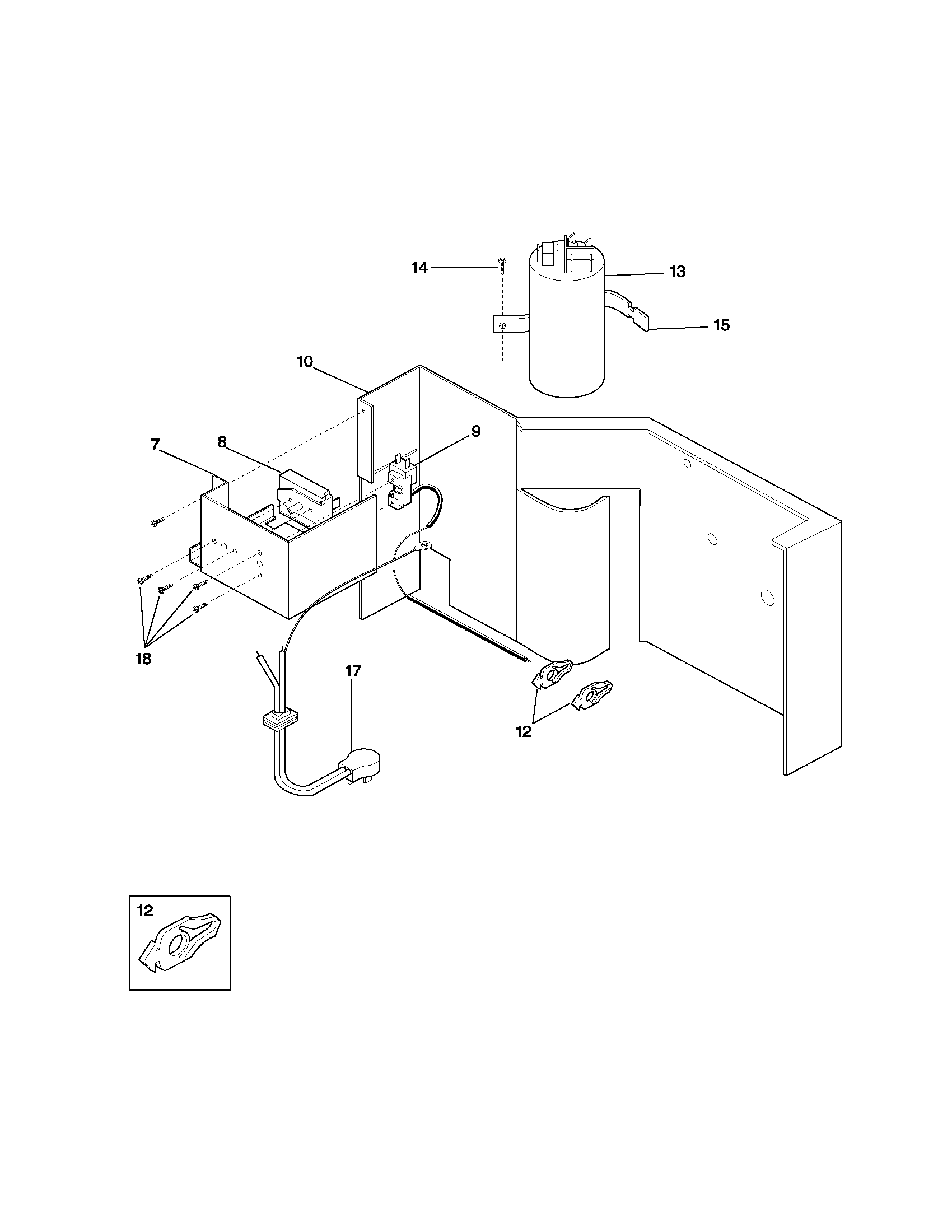

Controls diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Room Air Conditioner Screw 5303015427
#7

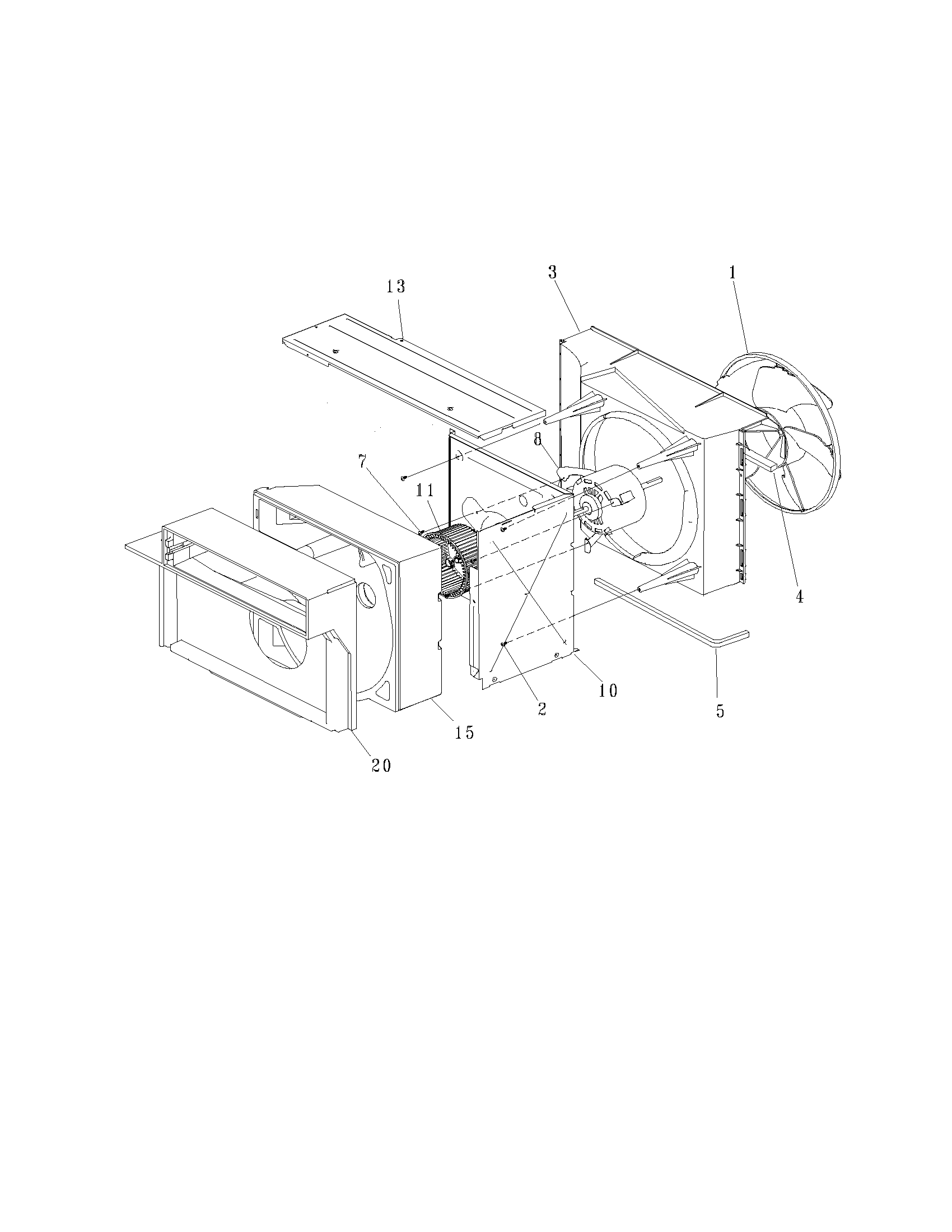

Air handling diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Frame-fron 309607305
#NI

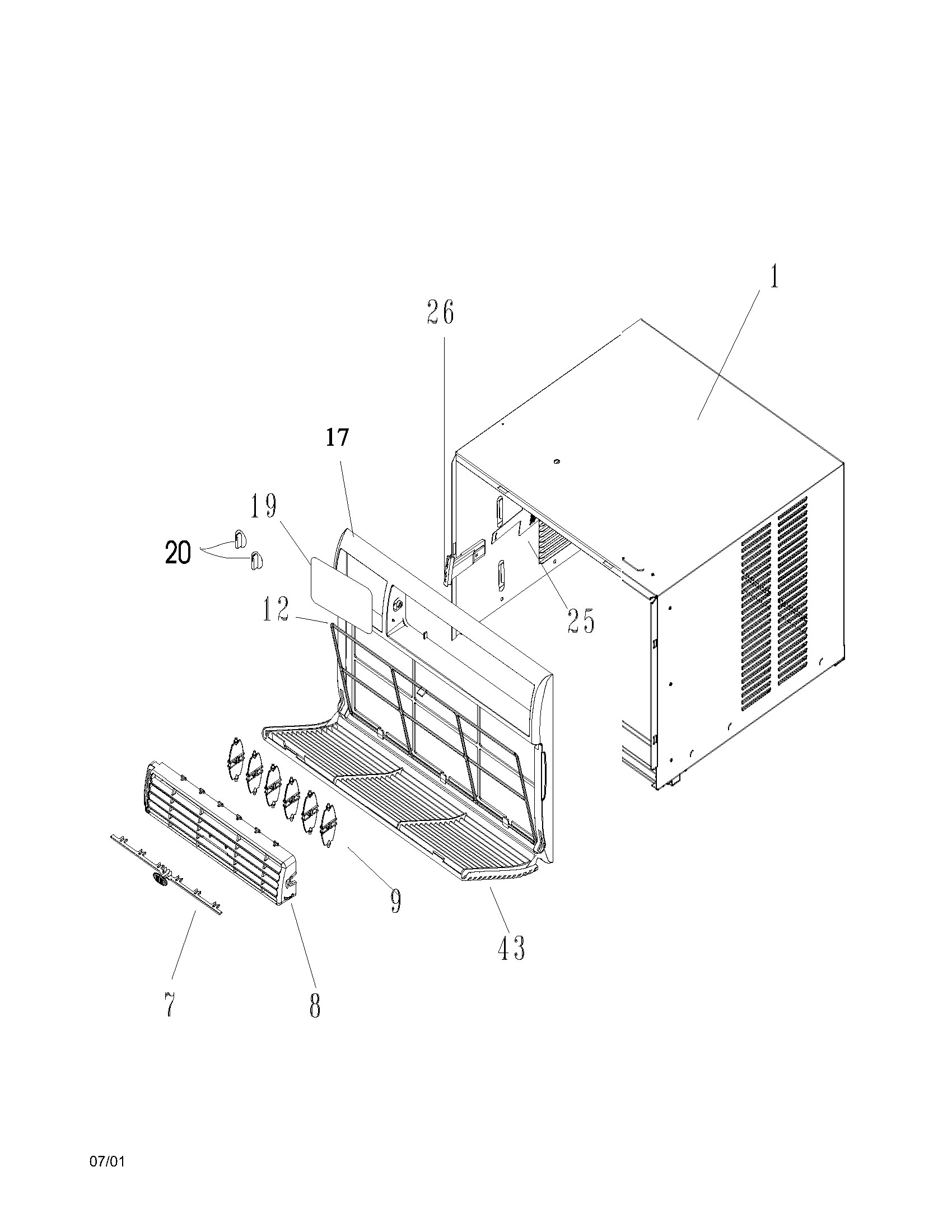

Wrapper diagram

Frame-fron

Part #309607305

$11.75
In Stock
Room Air Conditioner Screw 5304410881
#29

Wrapper diagram

Room air conditioner screw

Part #5304410881

This item is not returnable
$4.77
In Stock
Foam Strip 5304407729
#1

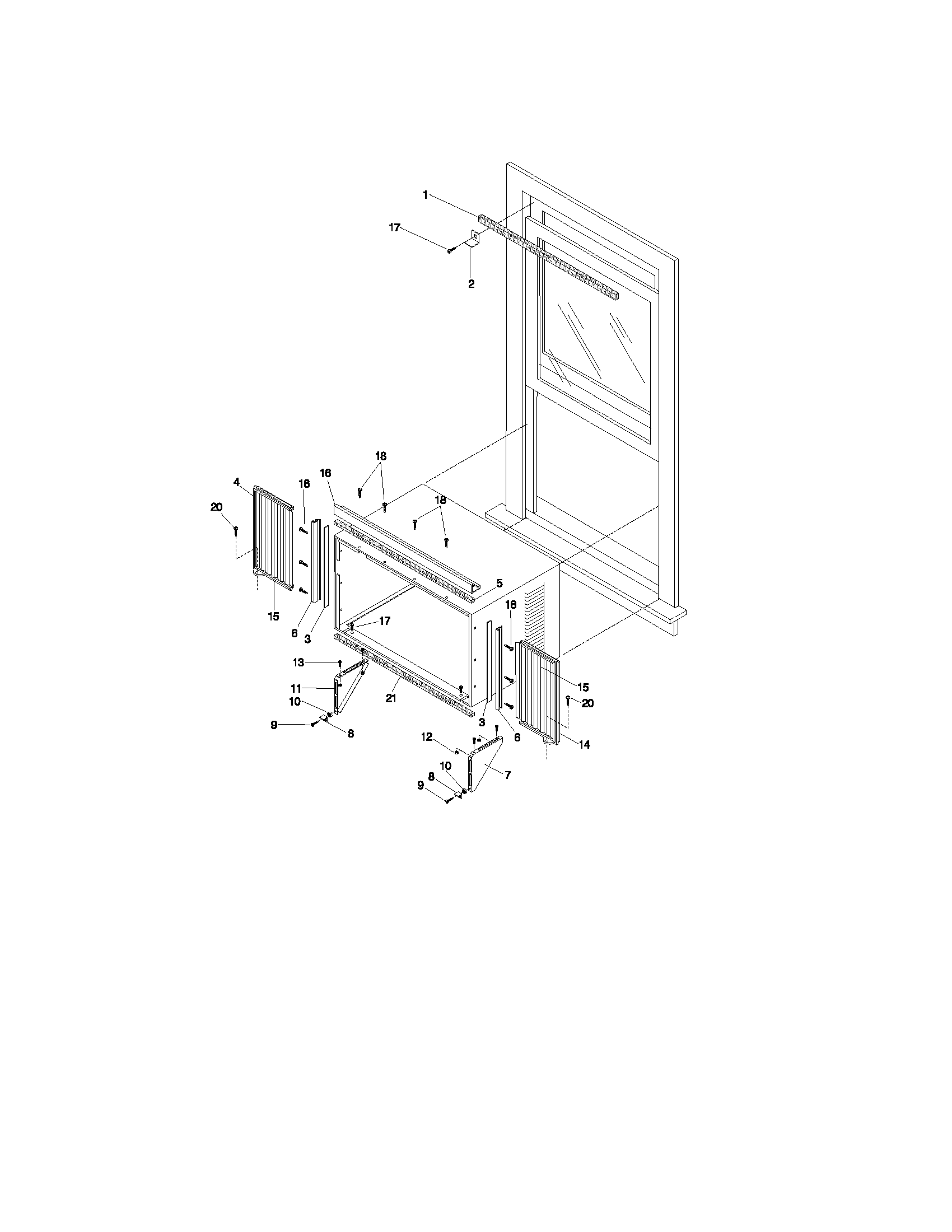

Window mounting diagram

Foam strip

Part #5304407729

$25.17
In Stock
Capacitor 5303318963
#13

Controls diagram

Capacitor

Part #5303318963

Replaced by #5303291523

?
Manufacturer substitution
This part replaces 5303318963. Substitute parts can look different from the original.
$123.82
In Stock
Nut-hex 3017023
#12

Window mounting diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Screw 3202975
#2

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Front Clip 309100401
#28

Wrapper diagram

Front clip

Part #309100401

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 5303002600
#20

Controls diagram

Sleeve

Part #5303002600

The manufacturer no longer makes this part, and there's no substitute part
