Model # HAC430GKA4 Official ICP condensing unit

Here are the diagrams and repair parts for Official ICP HAC430GKA4 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Press Switch 1087039
#17

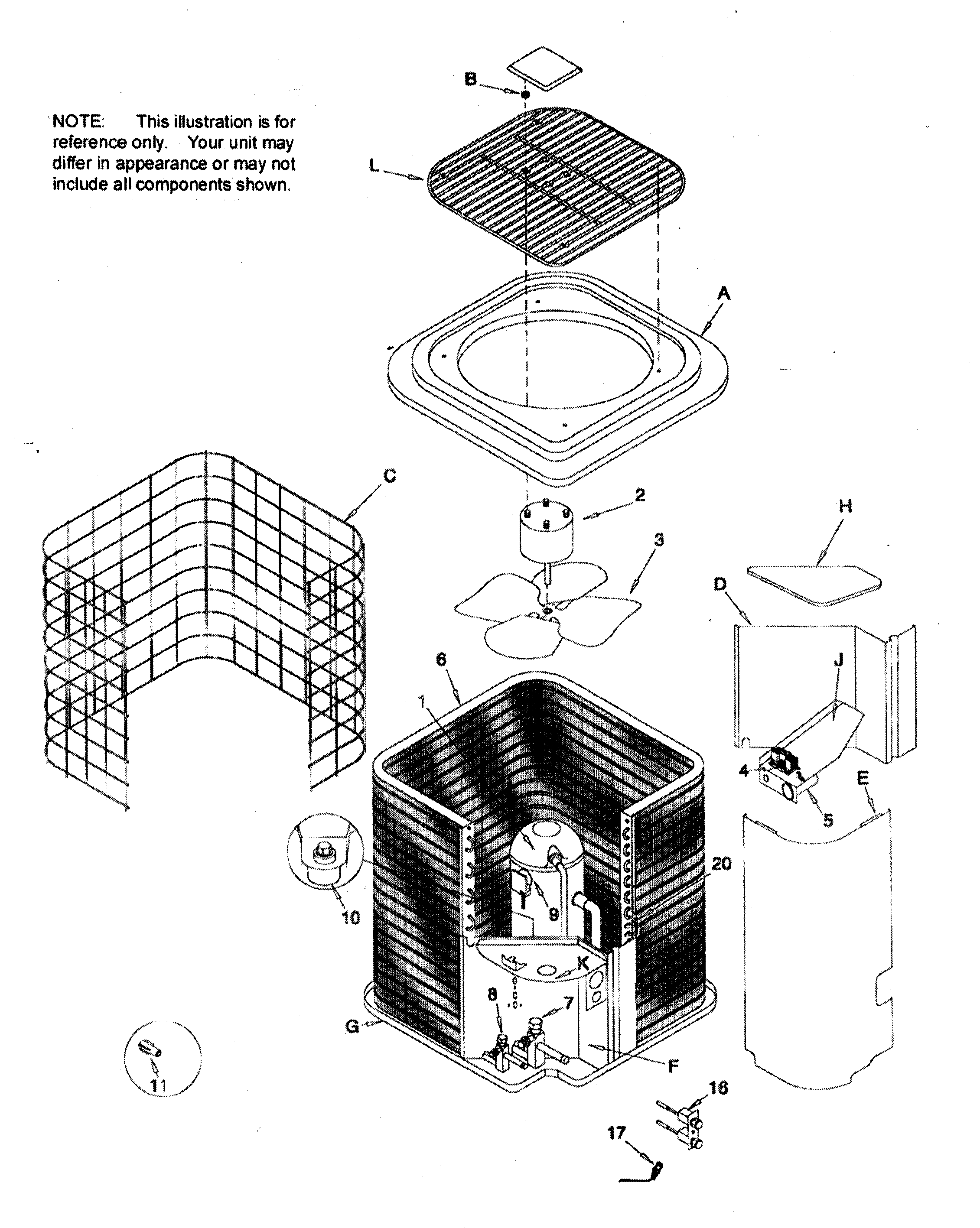

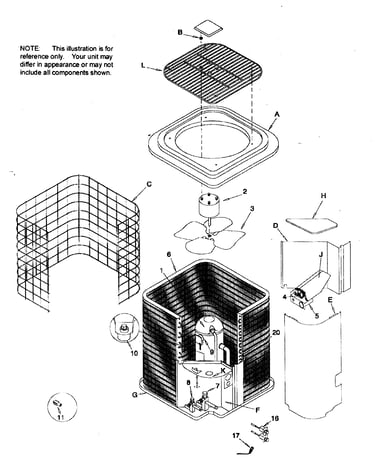

Condensing unit diagram

Press switch

Part #1087039

$26.91
In Stock
Grille 1086062
#L

Condensing unit diagram

Grille

Part #1086062

$739.83
In Stock
Fan Blade 1086518
#3

Condensing unit diagram

Fan blade

Part #1086518

$108.97
In Stock
Valve 1085989
#8

Condensing unit diagram

Valve

Part #1085989

$73.29
In Stock
Central Air Conditioner Refrigerant Suction Line Service Valve 1085991
#7

Condensing unit diagram

Central air conditioner refrigerant suction line service valve

Part #1085991

$107.04
In Stock
Plug Wire 1081940
#9

Condensing unit diagram

Plug wire

Part #1081940

Replaced by #1083654

?
Manufacturer substitution
This part replaces 1081940. Substitute parts can look different from the original.
$54.17 |
10% OFF Phone Price : $60.17
In Stock
Contactor 1050699
#4

Condensing unit diagram

Contactor

Part #1050699

Replaced by #94-388

?
Manufacturer substitution
This part replaces 1050699. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Panel 1086345
#F

Condensing unit diagram

Panel

Part #1086345

The manufacturer no longer makes this part, and there's no substitute part

Compressor ZR24K3PFV130
#1

Condensing unit diagram

Compressor

Part #ZR24K3PFV130

The manufacturer no longer makes this part, and there's no substitute part

Bottom Box 1087990
#K

Condensing unit diagram

Bottom box

Part #1087990

The manufacturer no longer makes this part, and there's no substitute part
