Model # T9MPT050F12B1 Official ICP 90+ 2-stage & multispeed blower gas furnace

Here are the diagrams and repair parts for Official ICP T9MPT050F12B1 90+ 2-stage & multispeed blower gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Capacitor 1171729
#7

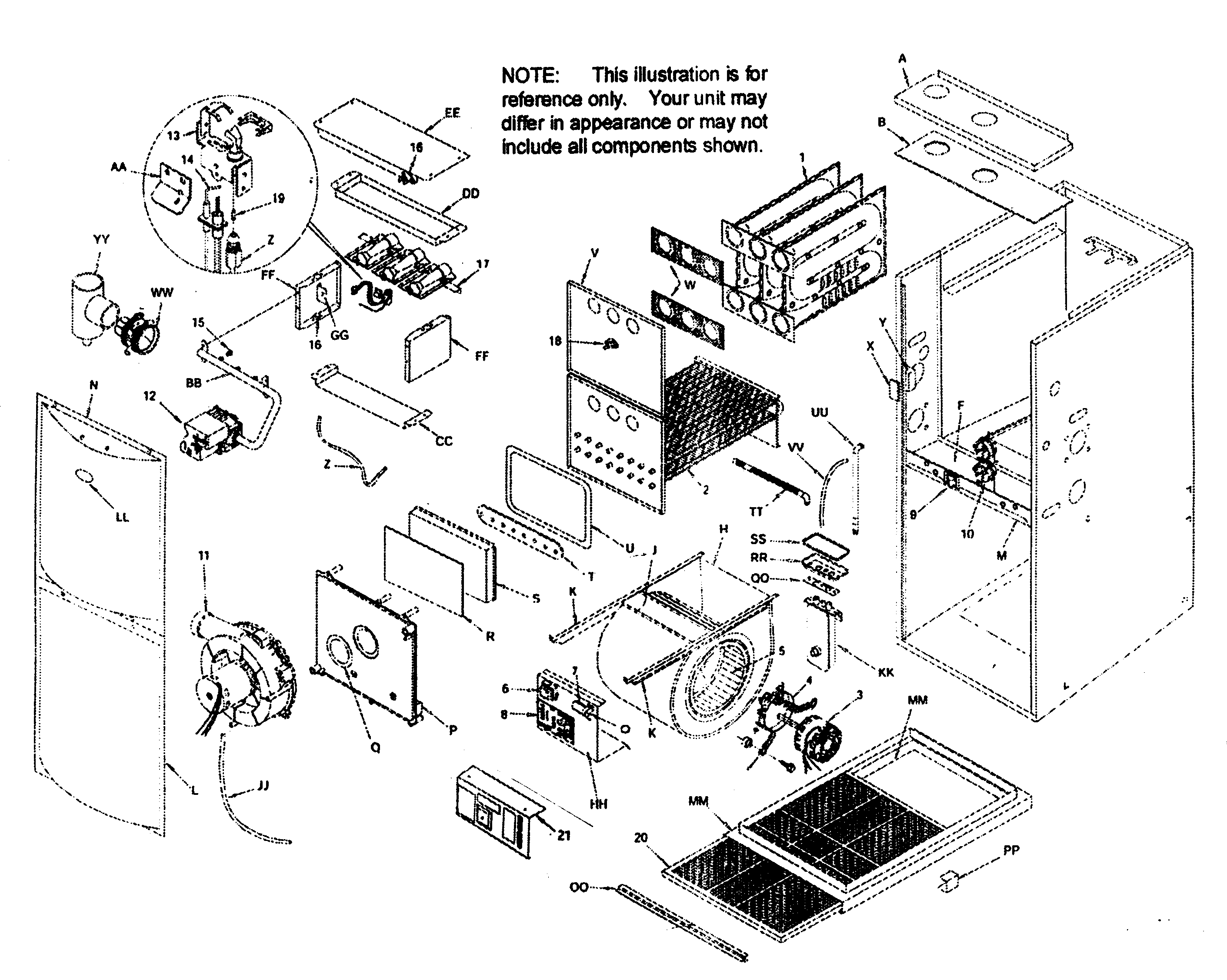

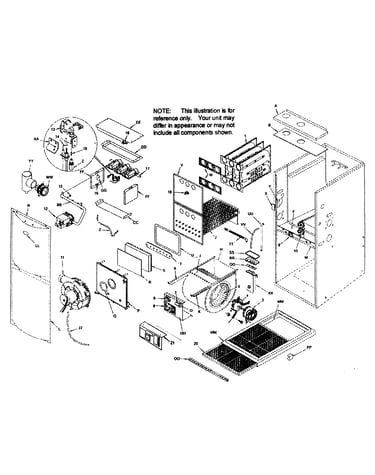

Furnace diagram

Capacitor

Part #1171729

Replaced by #12908

?
Manufacturer substitution
This part replaces 1171729. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Furnace Temperature Limit Switch 1013102
#16

Furnace diagram

Furnace temperature limit switch

Part #1013102

$15.62 |
11% OFF Phone Price : $17.62
In Stock
Furnace Door Switch 1171981
#9

Furnace diagram

Furnace door switch

Part #1171981

$16.66
In Stock
Furnace Blower Fan Motor (replaces 1172488) 1009052
#3

Furnace diagram

Furnace blower fan motor (replaces 1172488)

Part #1009052

$493.80 |
$12.00 OFF Phone Price : $505.80
In Stock
Transition 1014046
#P

Furnace diagram

Transition

Part #1014046

Replaced by #1172228

?
Manufacturer substitution
This part replaces 1014046. Substitute parts can look different from the original.
$79.83 |
7% OFF Phone Price : $85.83
In Stock
Furnace Blower Fan Wheel 1013011
#5

Furnace diagram

Furnace blower fan wheel

Part #1013011

$165.19 |
7% OFF Phone Price : $177.19
In Stock
Coupling 1012284
#NI

Furnace diagram

Coupling

Part #1012284

$10.31
In Stock
Exhaust Gasket 1014425
#Q

Furnace diagram

Exhaust gasket

Part #1014425

$22.23
In Stock
Furnace Burner Enclosure, Upper 1013702
#EE

Furnace diagram

Furnace burner enclosure, upper

Part #1013702

$220.69
In Stock
Gasket 1171987
#SS

Furnace diagram

Gasket

Part #1171987

$27.76
In Stock
