Model # 42PM1M-UCAUSRLJR Official LG plasma television

Here are the diagrams and repair parts for Official LG 42PM1M-UCAUSRLJR plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

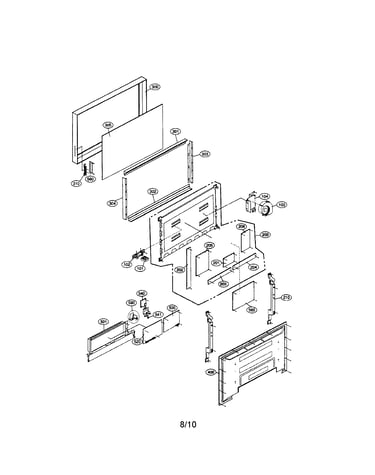

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Pcb Y-sus EBR31872801
#205

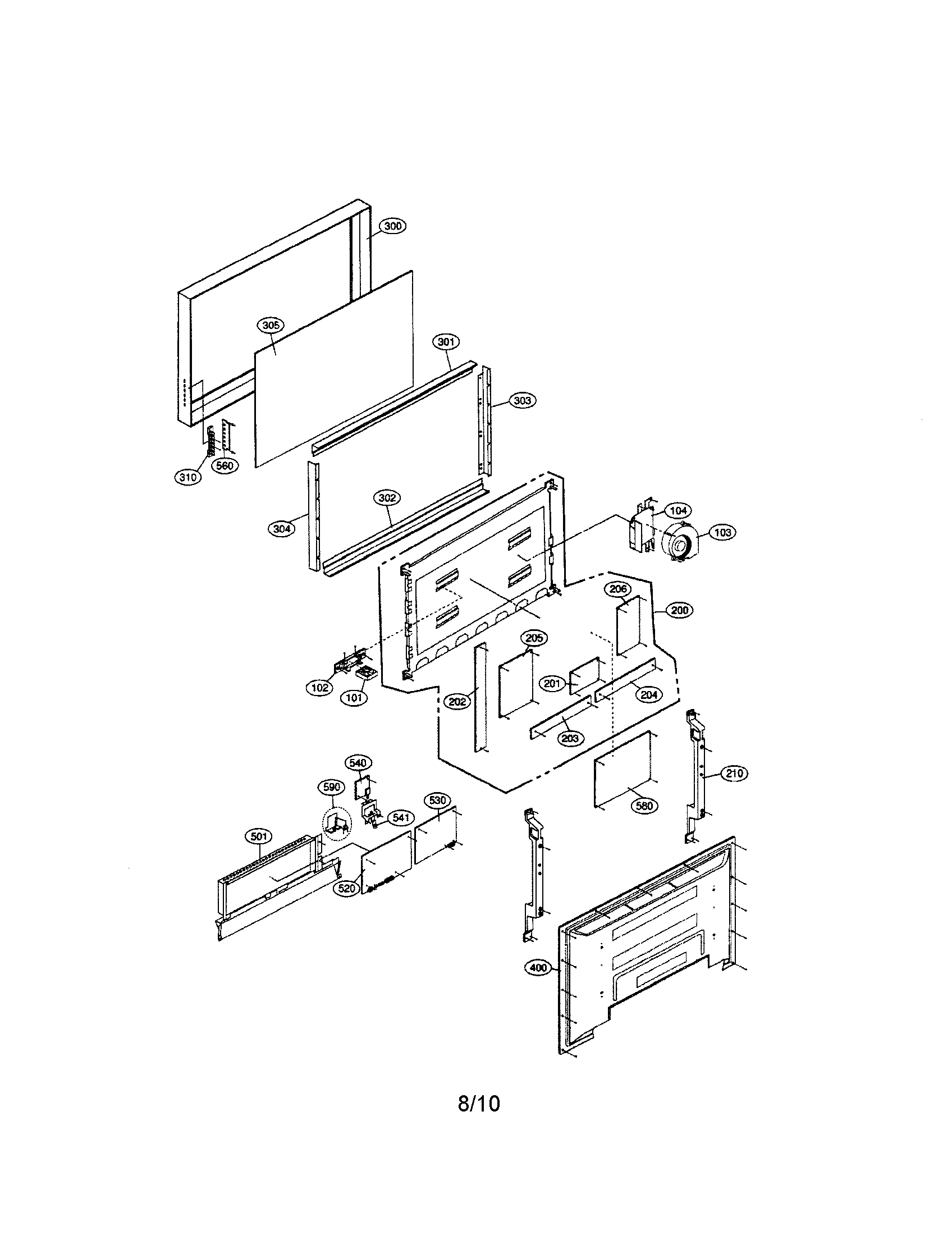

Plasma tv diagram

Pcb y-sus

Part #EBR31872801

$202.55
In Stock
Pcb Control 6871QCH077D
#201

Plasma tv diagram

Pcb control

Part #6871QCH077D

$170.92
In Stock
Cover 3550V00426A
#501

Plasma tv diagram

Cover

Part #3550V00426A

This item is not returnable
$4.51
In Stock
Pcb Assembly EBR31493401
#206

Plasma tv diagram

Pcb assembly

Part #EBR31493401

$170.92
In Stock
Pcb X-righ 6871QRH077A
#204

Plasma tv diagram

Pcb x-righ

Part #6871QRH077A

$86.20
In Stock
Ac Cord 6410VUH005E

#NI03

All parts diagram

Ac cord

Part #6410VUH005E

Replaced by #6410TUW008A

?
Manufacturer substitution
This part replaces 6410VUH005E. Substitute parts can look different from the original.
$14.64 |
12% OFF Phone Price : $16.64
In Stock
Back Cover Assembly 3809V0050B
#400

Plasma tv diagram

Back cover assembly

Part #3809V0050B

The manufacturer no longer makes this part, and there's no substitute part

Supporter 4980V00E47A
#104

Plasma tv diagram

Supporter

Part #4980V00E47A

The manufacturer no longer makes this part, and there's no substitute part

Chassis Assembly 31419SF269A
#540

Plasma tv diagram

Chassis assembly

Part #31419SF269A

The manufacturer no longer makes this part, and there's no substitute part

Button 5020V01004B
#310

Plasma tv diagram

Button

Part #5020V01004B

The manufacturer no longer makes this part, and there's no substitute part
