Eureka
Upright Vacuum

Model # 4340DTN Official Eureka vacuum cleaner

Here are the diagrams and repair parts for Official Eureka 4340DTN vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Gasket 27962
#38

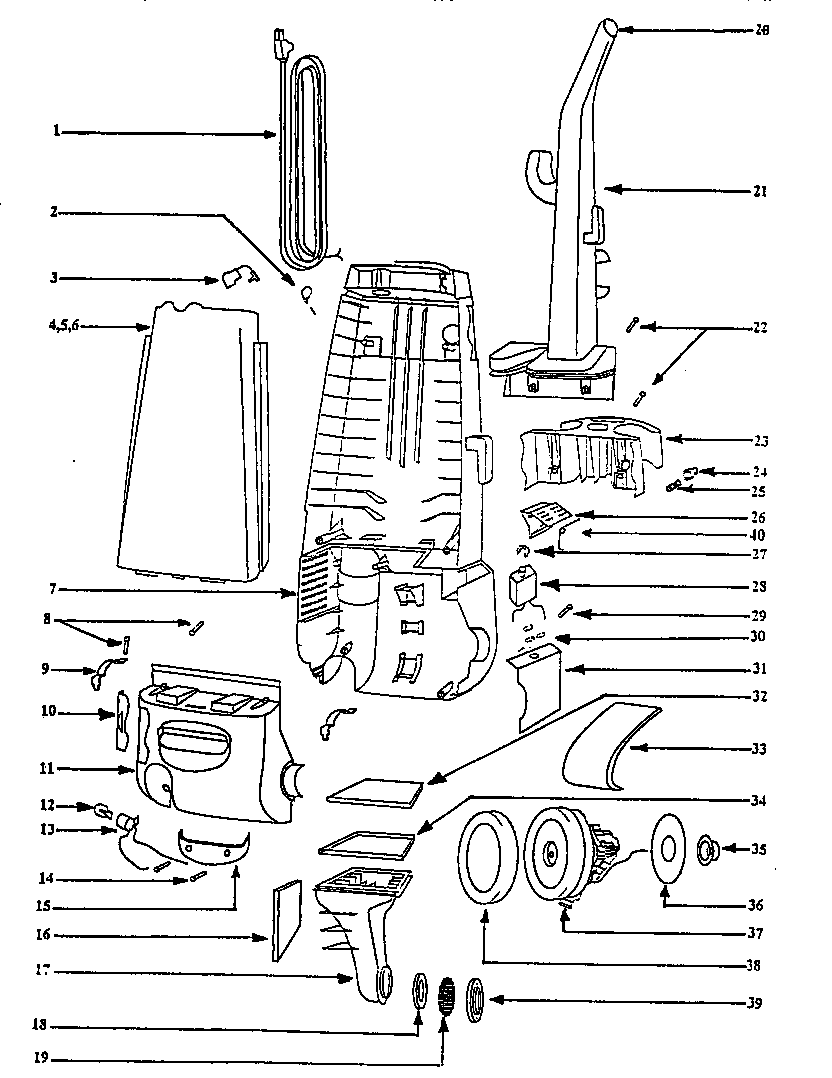

Handle and bag housing diagram

Gasket

Part #27962

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw, 10-pack 53197-1
Carpet cleaner screw, 10-pack

Part #53197-1

The manufacturer no longer makes this part, and there's no substitute part

Belt Guard 38063
#5

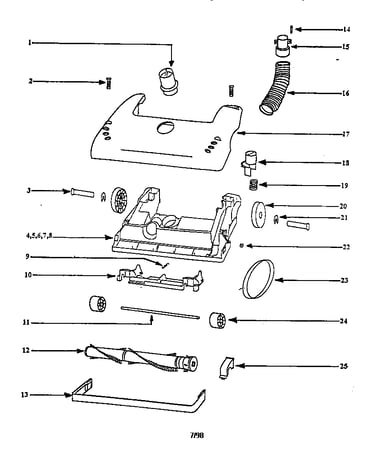

Agitator diagram

Belt guard

Part #38063

The manufacturer no longer makes this part, and there's no substitute part

Rib Brush 60079
#8

Agitator diagram

Rib brush

Part #60079

The manufacturer no longer makes this part, and there's no substitute part

Lens 15072-313N
#15

Handle and bag housing diagram

Lens

Part #15072-313N

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 58793

#NI

All parts diagram

Owner's manual

Part #58793

The manufacturer no longer makes this part, and there's no substitute part

Cover Bag 54936-23
#4

Handle and bag housing diagram

Cover bag

Part #54936-23

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter, 1-pack 38755
#16

Handle and bag housing diagram

Vacuum filter, 1-pack

Part #38755

The manufacturer no longer makes this part, and there's no substitute part

Shield 38689-2
#31

Handle and bag housing diagram

Shield

Part #38689-2

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Twist-on Wire Connector, 5-pack 60192-1
#30

Handle and bag housing diagram

Vacuum twist-on wire connector, 5-pack

Part #60192-1

The manufacturer no longer makes this part, and there's no substitute part
