Kenmore
Canister Vacuum

Model # 2082715 Official Kenmore canister vacuum

Here are the diagrams and repair parts for Official Kenmore 2082715 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |

Wand 60811
#31

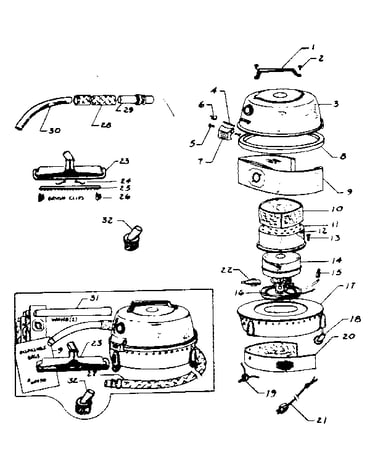

Unit parts diagram

Wand

Part #60811

The manufacturer no longer makes this part, and there's no substitute part

Lower Housing 60931E
#17

Unit parts diagram

Lower housing

Part #60931E

The manufacturer no longer makes this part, and there's no substitute part

Screw 60573
#13

Unit parts diagram

Screw

Part #60573

The manufacturer no longer makes this part, and there's no substitute part

Spring 60943
#6

Unit parts diagram

Spring

Part #60943

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 61101
#3

Unit parts diagram

Housing assembly

Part #61101

The manufacturer no longer makes this part, and there's no substitute part

Pressure Plug 60640
#12

Unit parts diagram

Pressure plug

Part #60640

The manufacturer no longer makes this part, and there's no substitute part

Shroud Motor 61100
#11

Unit parts diagram

Shroud motor

Part #61100

The manufacturer no longer makes this part, and there's no substitute part

Rug Tool 61106A
#23

Unit parts diagram

Rug tool

Part #61106A

The manufacturer no longer makes this part, and there's no substitute part

Complete Hose Ass'y. 60953F
#27

Unit parts diagram

Complete hose ass'y.

Part #60953F

The manufacturer no longer makes this part, and there's no substitute part

Coupling 61120A
#29

Unit parts diagram

Coupling

Part #61120A

The manufacturer no longer makes this part, and there's no substitute part
