Room Air Conditioner

Model # AF-S60DX Official Sharp air conditioner

Here are the diagrams and repair parts for Official Sharp AF-S60DX air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

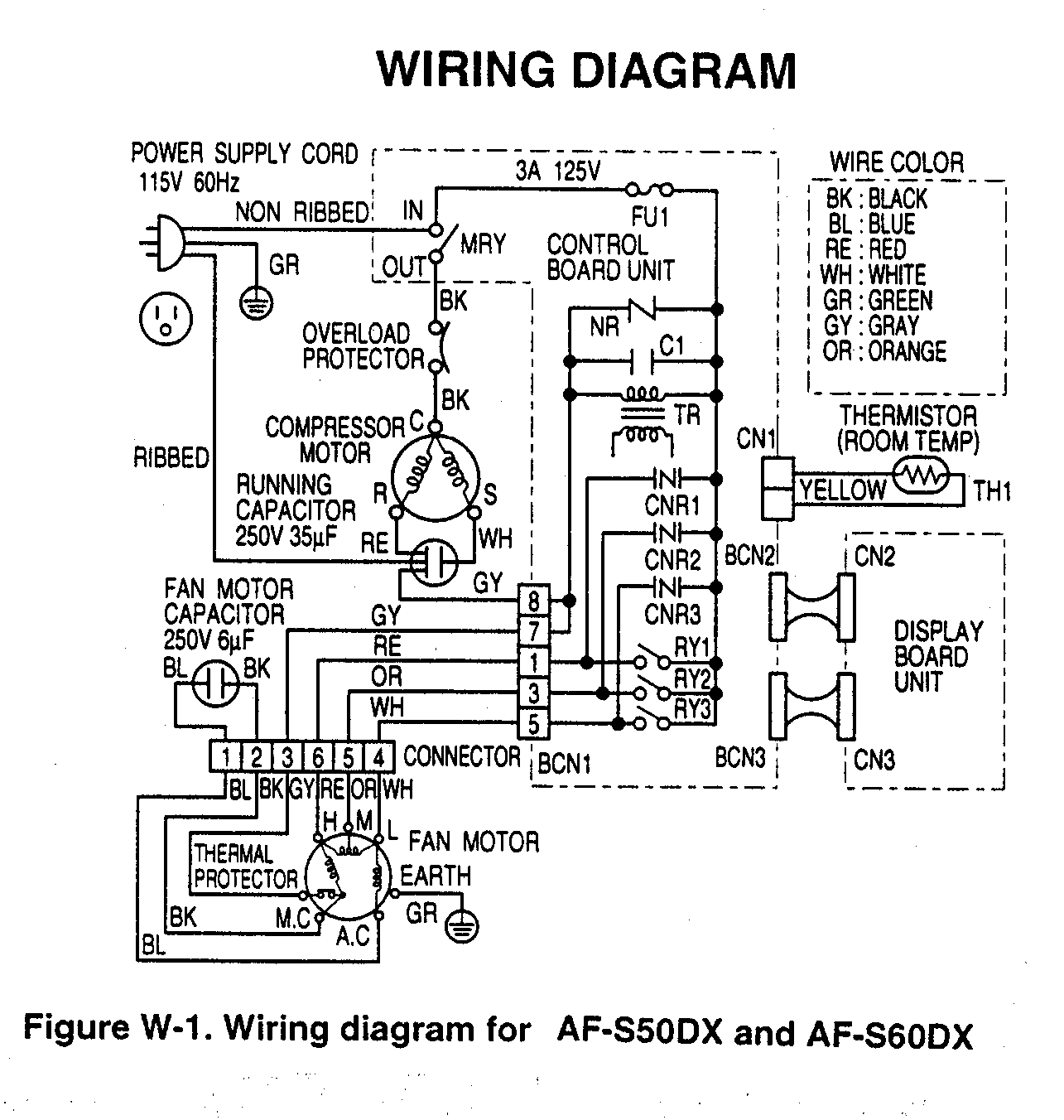

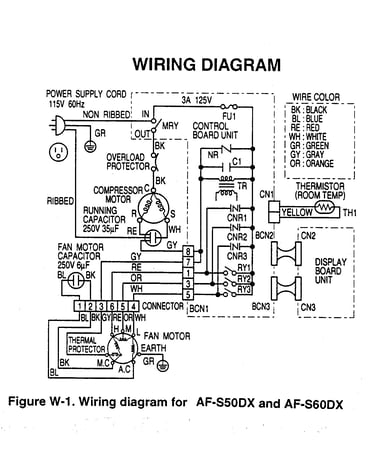

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Washer LX-WZA043JBEZ
#321

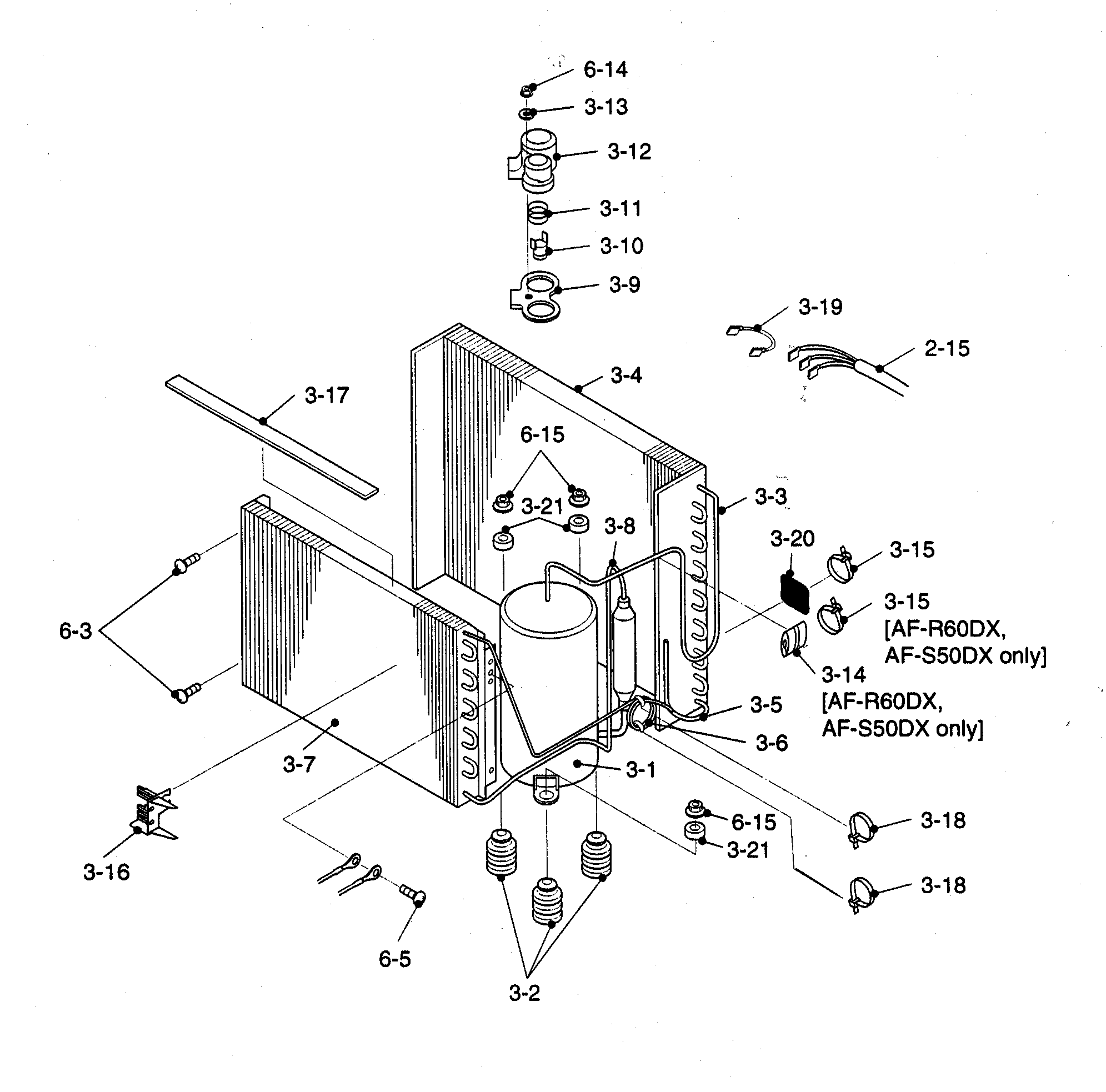

Cycle parts diagram

Washer

Part #LX-WZA043JBEZ

The manufacturer no longer makes this part, and there's no substitute part

Spring MSPR-A155JBFZ
#121

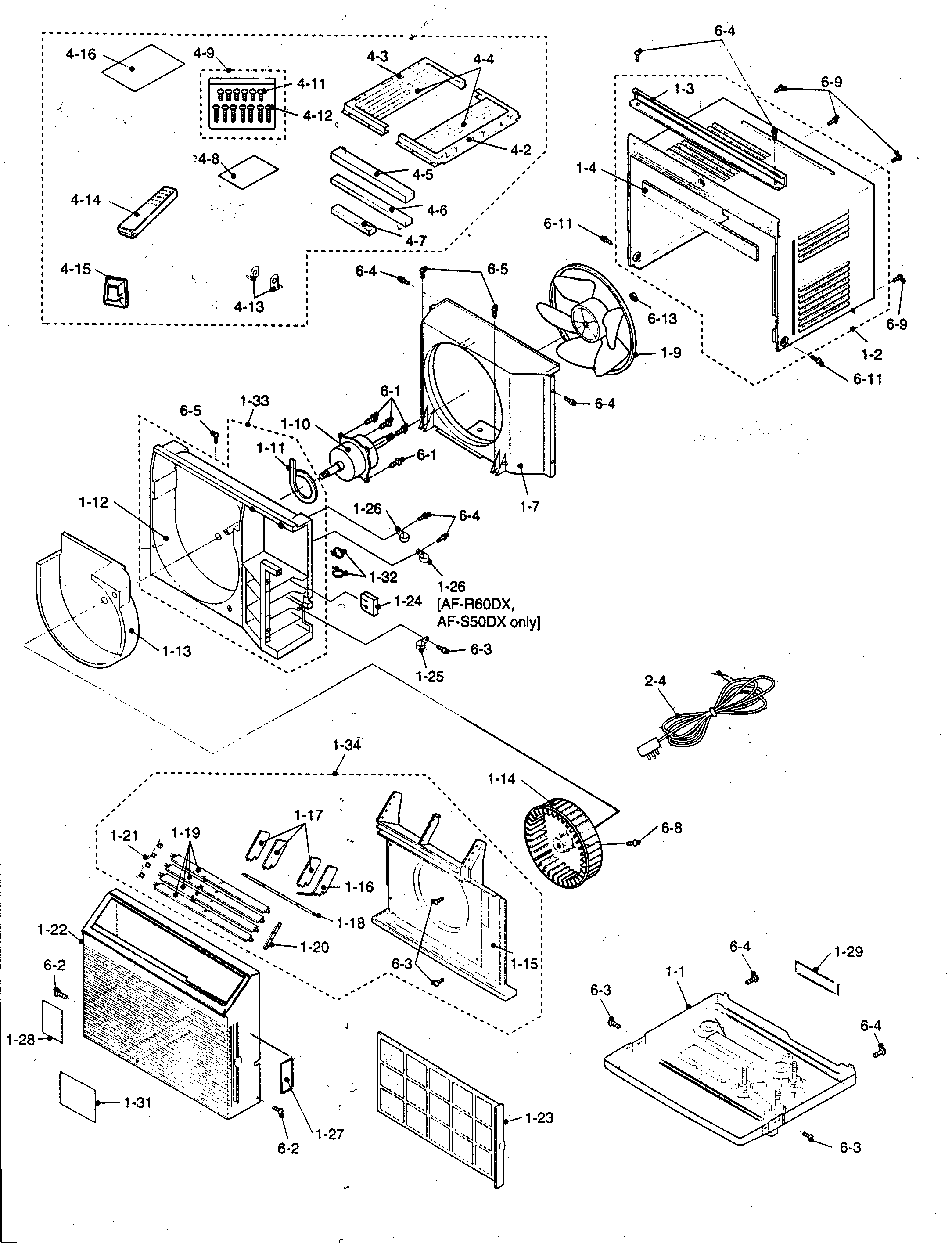

Cabinet parts diagram

Spring

Part #MSPR-A155JBFZ

The manufacturer no longer makes this part, and there's no substitute part

Condenser PCON-A500JBEZ
#34

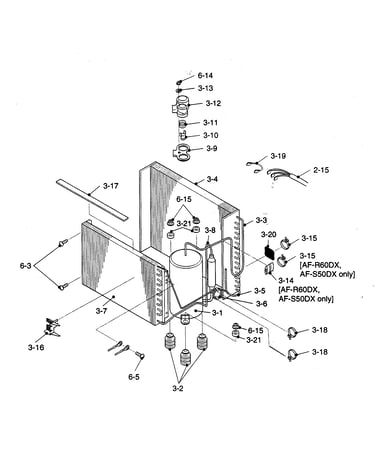

Cycle parts diagram

Condenser

Part #PCON-A500JBEZ

The manufacturer no longer makes this part, and there's no substitute part

Insulator PSEL-C416JBEZ
#124

Cabinet parts diagram

Insulator

Part #PSEL-C416JBEZ

The manufacturer no longer makes this part, and there's no substitute part

Insulator Sheet PPLT-A301JBEZ
#217

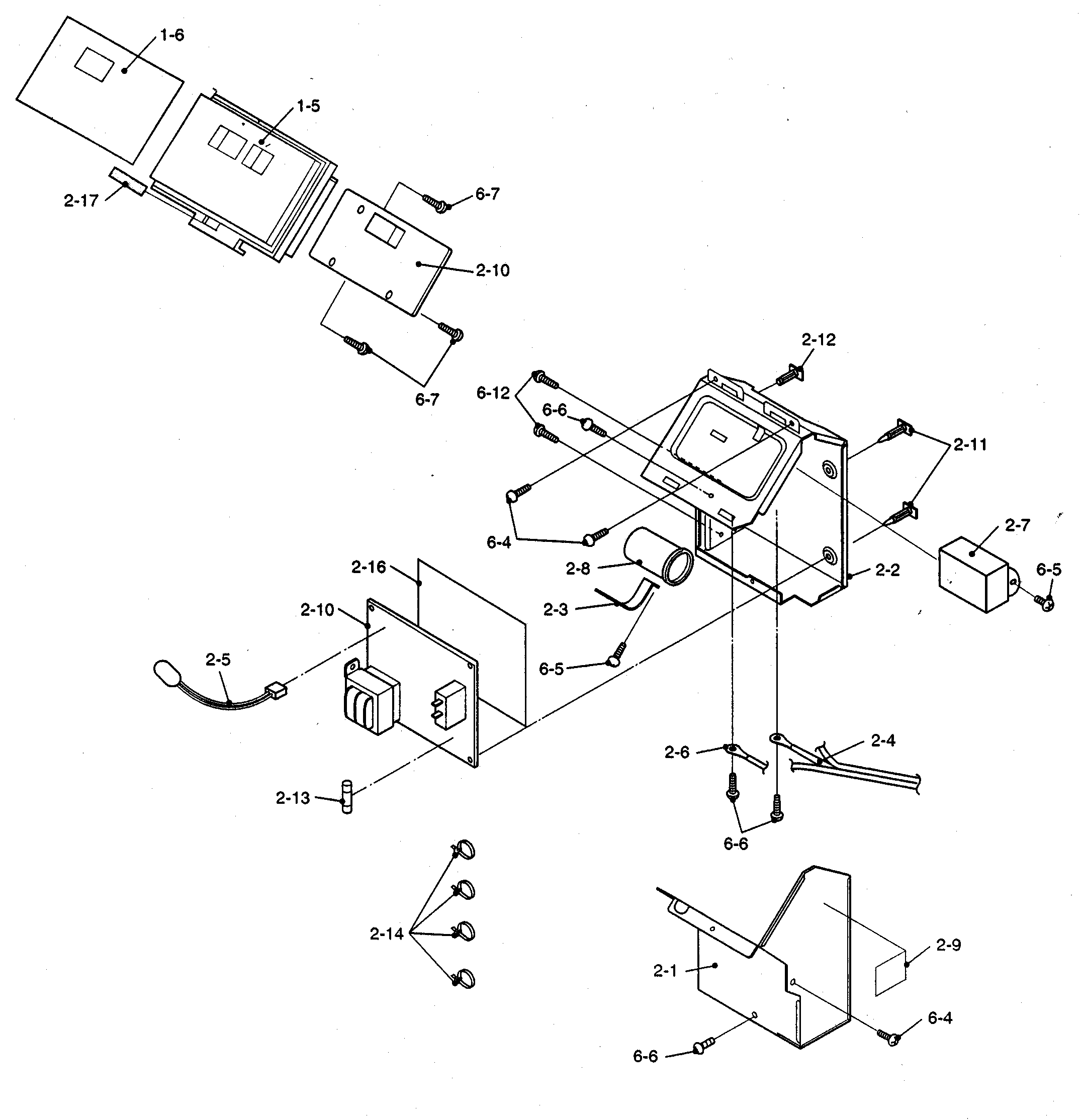

Control box parts diagram

Insulator sheet

Part #PPLT-A301JBEZ

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Insulator PSEL-C357JBEZ
#14

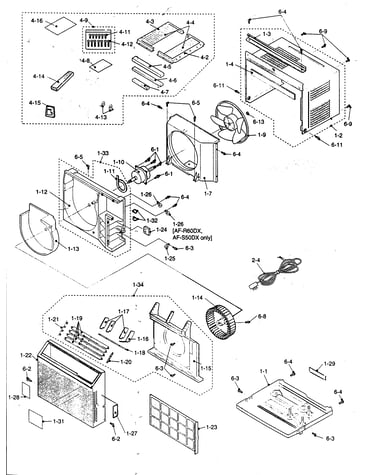

Cabinet parts diagram

Cabinet insulator

Part #PSEL-C357JBEZ

The manufacturer no longer makes this part, and there's no substitute part

Link MJNTPA090JBFE
#120

Cabinet parts diagram

Link

Part #MJNTPA090JBFE

The manufacturer no longer makes this part, and there's no substitute part

Insulator Sheet PPLT-A299JBEZ
#216

Control box parts diagram

Insulator sheet

Part #PPLT-A299JBEZ

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Clamp LBNDKA104JBWZ
#23

Control box parts diagram

Capacitor clamp

Part #LBNDKA104JBWZ

The manufacturer no longer makes this part, and there's no substitute part

Overload Relay Afs50dx RHOG-A201JBZZ
#310

Cycle parts diagram

Overload relay afs50dx

Part #RHOG-A201JBZZ

The manufacturer no longer makes this part, and there's no substitute part
