Model # 32LH40 Official LG lcd television

Here are the diagrams and repair parts for Official LG 32LH40 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Cabinet Assembly ABJ69039112
#300

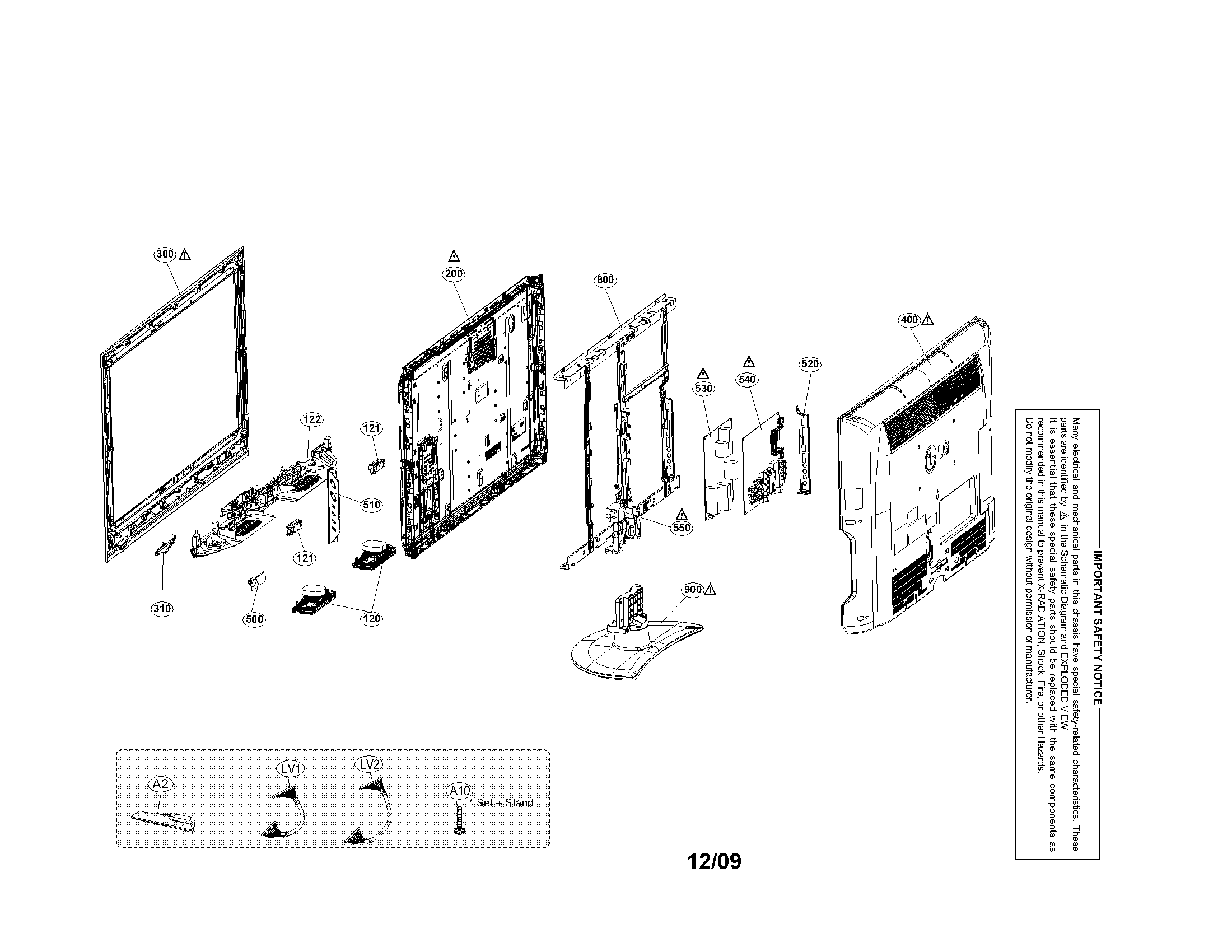

Case parts diagram

Cabinet assembly

Part #ABJ69039112

The manufacturer no longer makes this part, and there's no substitute part

Switched-mode Power Supply Board EAY58582801
#530

Case parts diagram

Switched-mode power supply board

Part #EAY58582801

The manufacturer no longer makes this part, and there's no substitute part

Bpr Assembly EBU60702204
#540

Case parts diagram

Bpr assembly

Part #EBU60702204

The manufacturer no longer makes this part, and there's no substitute part

Switch Rckr EBF58261503
#310

Case parts diagram

Switch rckr

Part #EBF58261503

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker EAB58304302
#120

Case parts diagram

Television speaker

Part #EAB58304302

The manufacturer no longer makes this part, and there's no substitute part

Pcb Asy,fr EBR59216901
#500

Case parts diagram

Pcb asy,fr

Part #EBR59216901

The manufacturer no longer makes this part, and there's no substitute part

Filter EAM60352204
#550

Case parts diagram

Filter

Part #EAM60352204

The manufacturer no longer makes this part, and there's no substitute part

Frame Assembly ADV67521717
#800

Case parts diagram

Frame assembly

Part #ADV67521717

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly EBR62344801
#510

Case parts diagram

Pcb assembly

Part #EBR62344801

The manufacturer no longer makes this part, and there's no substitute part

Lcd Module EAJ59164101
#200

Case parts diagram

Lcd module

Part #EAJ59164101

The manufacturer no longer makes this part, and there's no substitute part
