Model # U5172-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5172-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Retainer Cover 37258161
#16

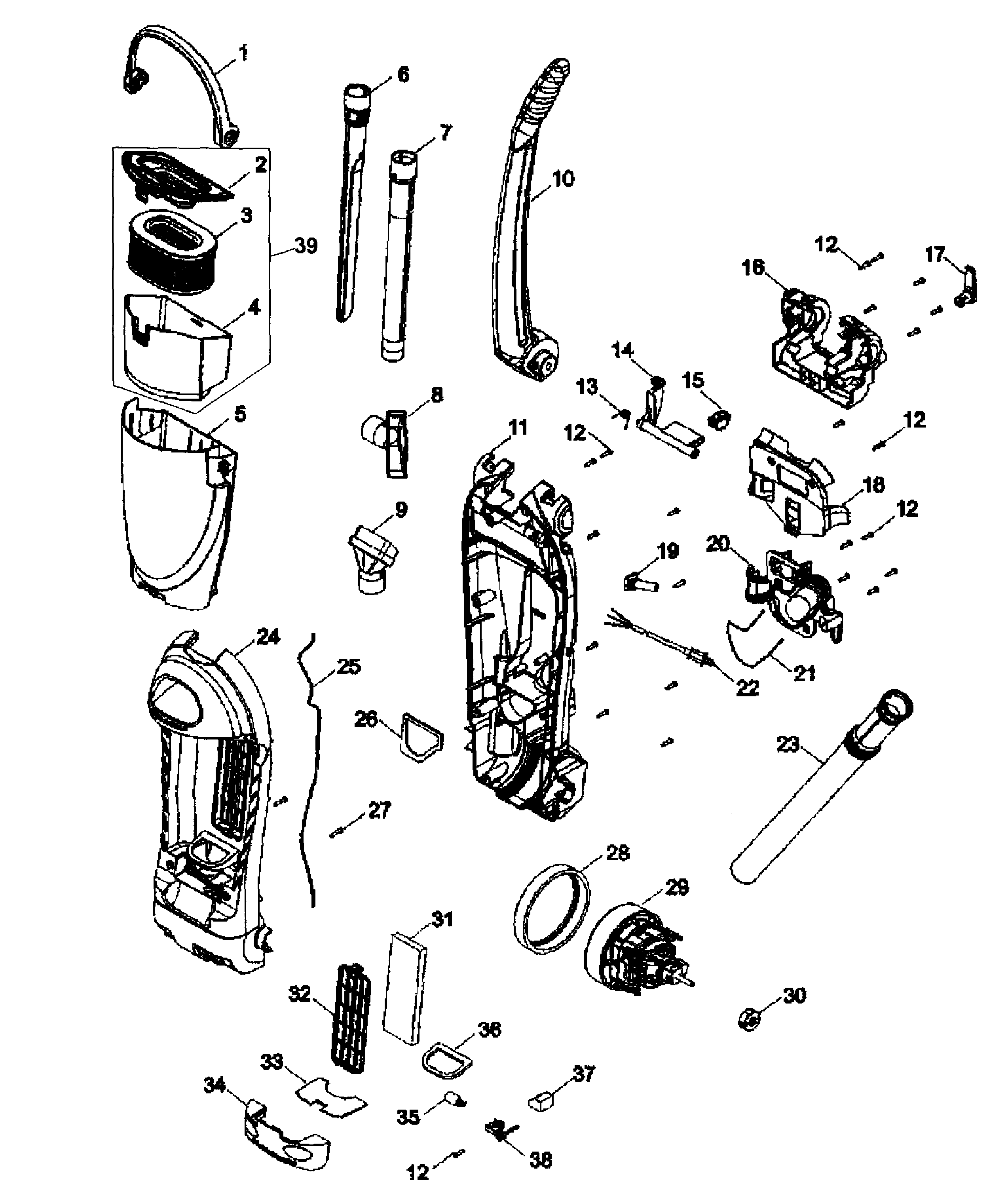

Main body diagram

Retainer cover

Part #37258161

The manufacturer no longer makes this part, and there's no substitute part

Housing 37255035
#11

Main body diagram

Housing

Part #37255035

The manufacturer no longer makes this part, and there's no substitute part

Latch Lever 92001063
#14

Main body diagram

Latch lever

Part #92001063

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 40130050
#3

Main body diagram

Vacuum filter

Part #40130050

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447242
Vacuum screw

Part #21447242

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Hub 37912018
#6

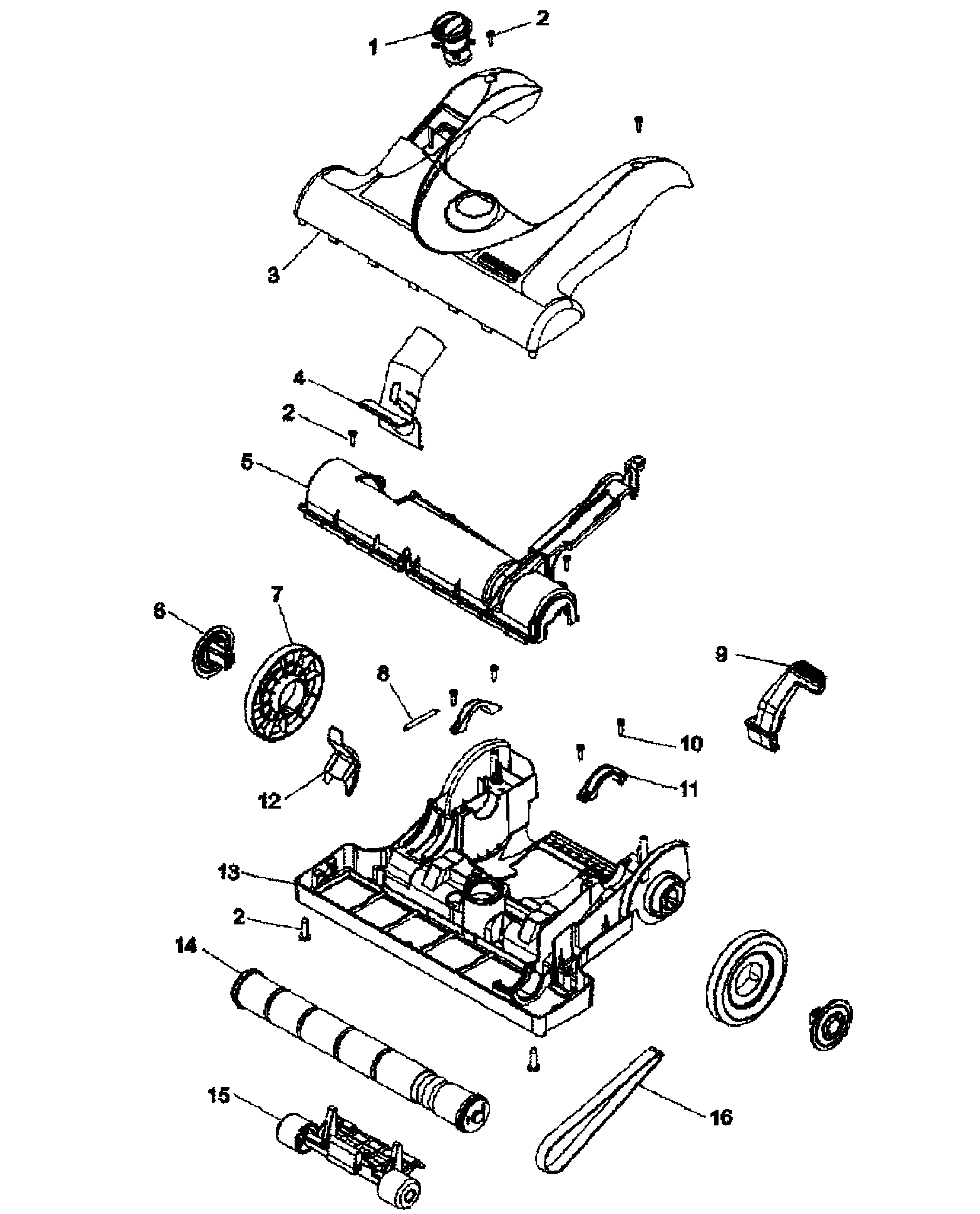

Base assy diagram

Vacuum wheel hub

Part #37912018

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 43414197
#9

Main body diagram

Vacuum dust brush

Part #43414197

The manufacturer no longer makes this part, and there's no substitute part

Drive Debris 37257312
#12

Base assy diagram

Drive debris

Part #37257312

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw 21447269
#NI

Main body diagram

Carpet cleaner screw

Part #21447269

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Tube 38634092
#7

Main body diagram

Vacuum handle tube

Part #38634092

The manufacturer no longer makes this part, and there's no substitute part
