Model # 38YXA048 SERIES300 Official Carrier heat pump

Here are the diagrams and repair parts for Official Carrier 38YXA048-SERIES300 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Contactor HN51KC024
#30

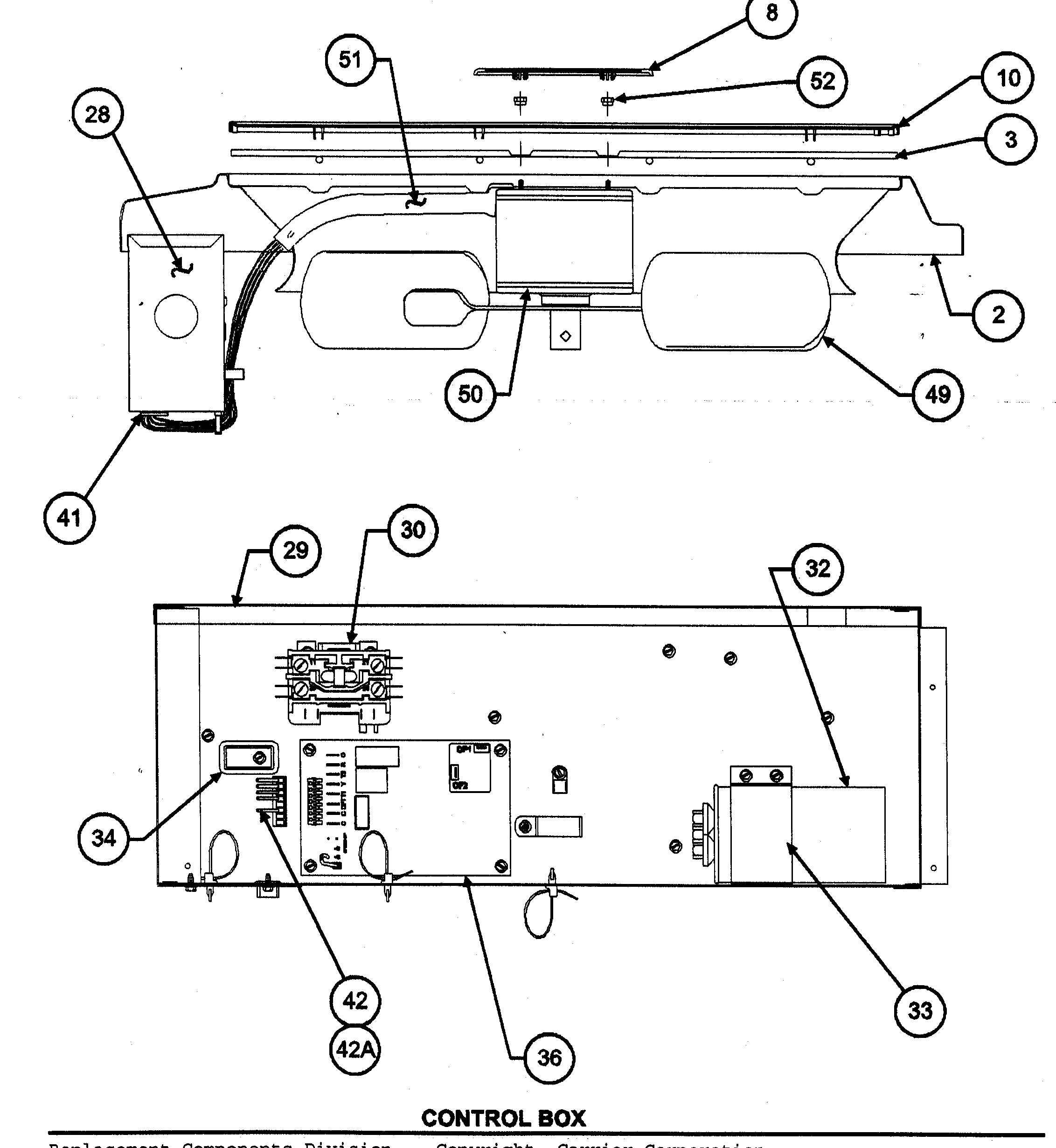

Control box diagram

Contactor

Part #HN51KC024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51KC024. Substitute parts can look different from the original.
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Strap Cap 317739-303
#33

Control box diagram

Strap cap

Part #317739-303

$9.20
In Stock
Cap 320238-401
#8

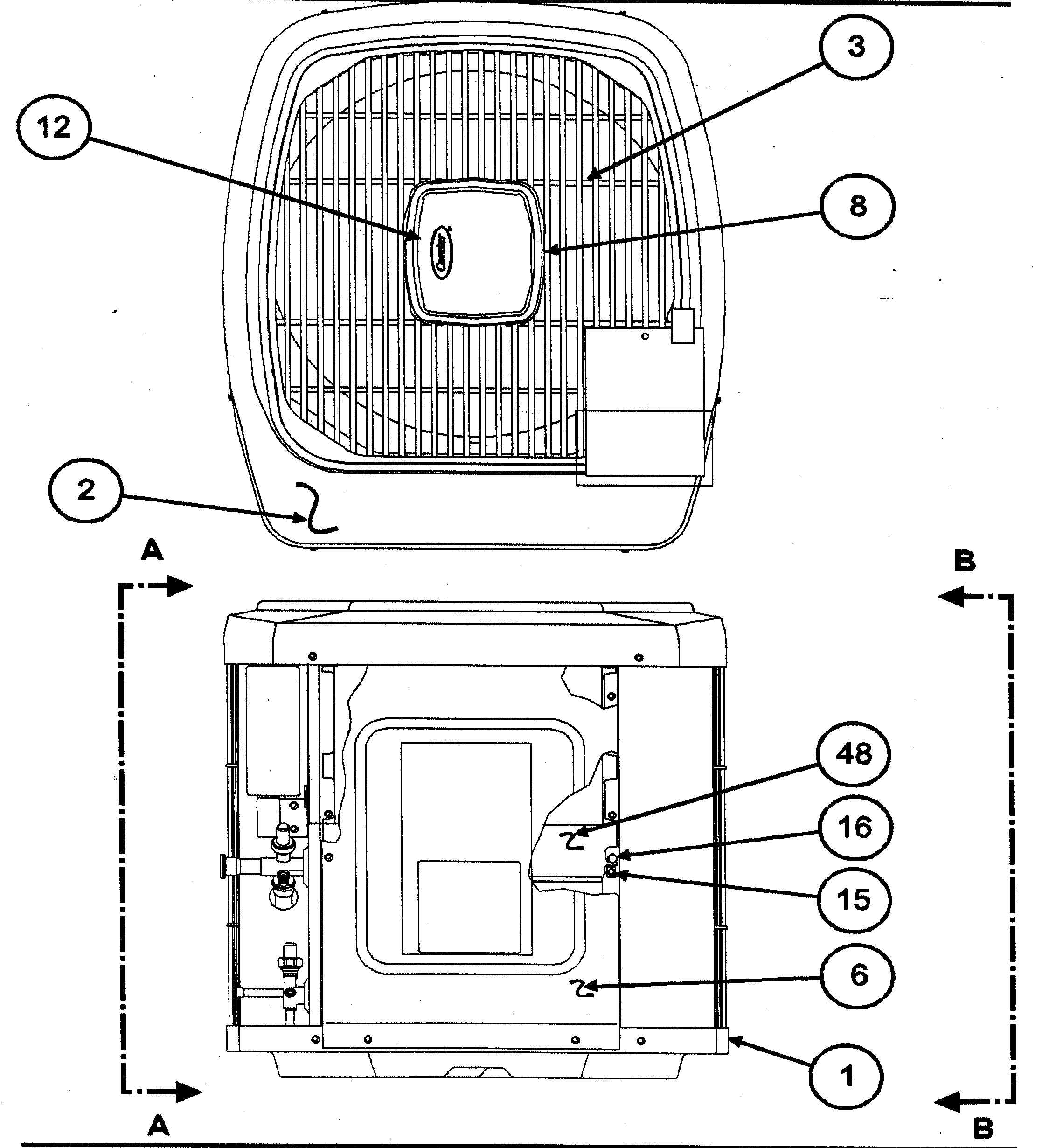

Outlet grille/top cover diagram

Cap

Part #320238-401

Replaced by #330798-7011

?
Manufacturer substitution
This part replaces 320238-401. Substitute parts can look different from the original.
$29.24
In Stock
Trim 320245-401
#10

Control box diagram

Trim

Part #320245-401

$109.64
In Stock
Sw Temp Ac HH18HA285
#NI

Outlet grille/top cover diagram

Sw temp ac

Part #HH18HA285

$22.27
In Stock
Payne Harness 317497-701
#42

Control box diagram

Payne harness

Part #317497-701

$52.62
In Stock
Drier KH45LG141
#NI

Outlet grille/top cover diagram

Drier

Part #KH45LG141

$187.85
In Stock
Kit KSALA0301410
#NI

Outlet grille/top cover diagram

Kit

Part #KSALA0301410

$661.87
In Stock
Central Air Conditioner Condenser Fan Motor (replaces Hc35sl231, Hc39ge232, Hc39ge236) HC39GE237
#50

Control box diagram

Central air conditioner condenser fan motor (replaces hc35sl231, hc39ge232, hc39ge236)

Part #HC39GE237

$360.93 |
$12.00 OFF Phone Price : $372.93
In Stock
Switch HK02ZB421
#46

Compressor/condenser diagram

Switch

Part #HK02ZB421

$126.34
In Stock
