Model # 42LF5800 Official LG lcd television

Here are the diagrams and repair parts for Official LG 42LF5800 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |

Television Stand Base Screw FAB30016124
#A10

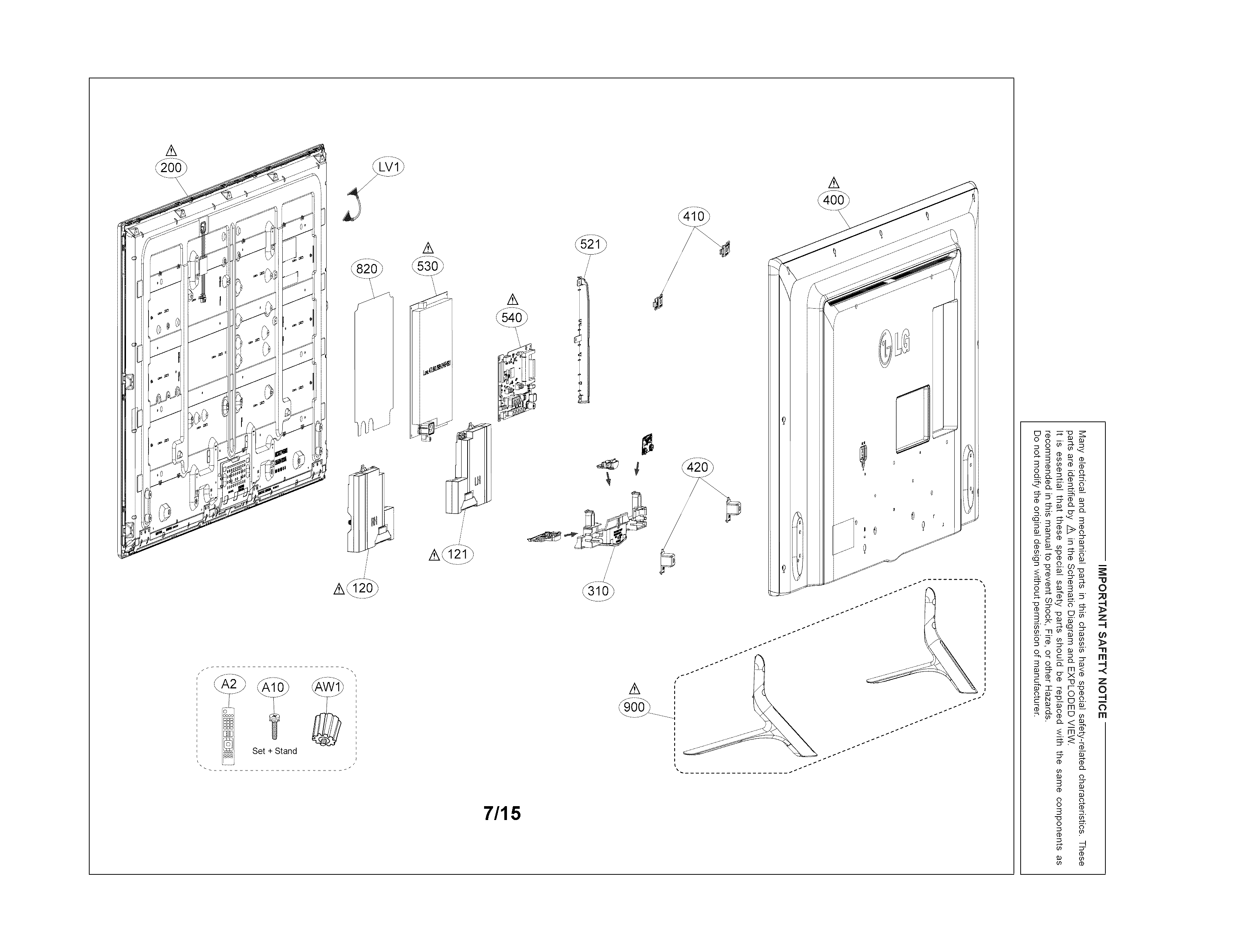

Exploded view parts diagram

Television stand base screw

Part #FAB30016124

This item is not returnable
$2.73
27% OFF Phone Price : $3.73
In Stock
Power Supply EAY63071901
#530

Exploded view parts diagram

Power supply

Part #EAY63071901

In Stock
Television Speaker EAB62972101
#121

Exploded view parts diagram

Television speaker

Part #EAB62972101

In Stock
Lg Printed Circuit Board Assembly EBR80913202
#540

Exploded view parts diagram

Lg printed circuit board assembly

Part #EBR80913202

The manufacturer no longer makes this part, and there's no substitute part

Rear Cover Assembly ACQ87931817
#400

Exploded view parts diagram

Rear cover assembly

Part #ACQ87931817

The manufacturer no longer makes this part, and there's no substitute part

Supporter MJH63100307
#410

Exploded view parts diagram

Supporter

Part #MJH63100307

The manufacturer no longer makes this part, and there's no substitute part

Remote Controller Assembly AKB74455416
#A2

Exploded view parts diagram

Remote controller assembly

Part #AKB74455416

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker Assembly EAB62972102
#120

Exploded view parts diagram

Television speaker assembly

Part #EAB62972102

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly ACQ88058708
#310

Exploded view parts diagram

Cover assembly

Part #ACQ88058708

The manufacturer no longer makes this part, and there's no substitute part

Tft Lcd Module EAJ63248201
#200

Exploded view parts diagram

Tft lcd module

Part #EAJ63248201

The manufacturer no longer makes this part, and there's no substitute part
