Model # 50247290 Official Sears bicycle

Here are the diagrams and repair parts for Official Sears 50247290 bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Dr Scrw Shft 62341
#5B

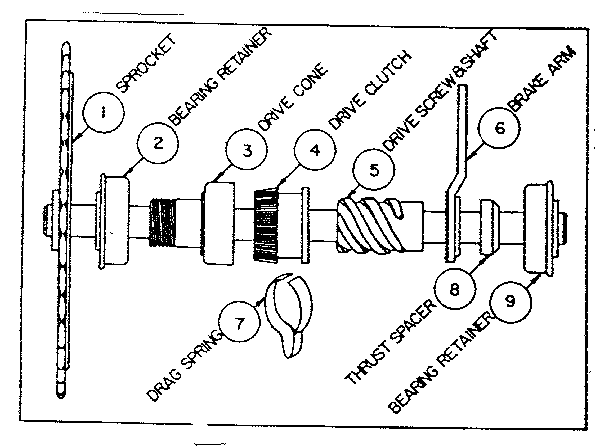

Brake diagram

Dr scrw shft

Part #62341

The manufacturer no longer makes this part, and there's no substitute part

Brake Arm 62324
#6B

Brake diagram

Brake arm

Part #62324

The manufacturer no longer makes this part, and there's no substitute part

R Wheel 20in 62260

#NI

All parts diagram

R wheel 20in

Part #62260

The manufacturer no longer makes this part, and there's no substitute part

Chain 11332

#NI

All parts diagram

Chain

Part #11332

The manufacturer no longer makes this part, and there's no substitute part

Drag Spring 62451
#7A

Brake diagram

Drag spring

Part #62451

The manufacturer no longer makes this part, and there's no substitute part

Bearing Retainer 62332
#2

Brake diagram

Bearing retainer

Part #62332

The manufacturer no longer makes this part, and there's no substitute part

Pedal 62301

#NI

All parts diagram

Pedal

Part #62301

The manufacturer no longer makes this part, and there's no substitute part

R-wheel 16in 61875

#NI

All parts diagram

R-wheel 16in

Part #61875

The manufacturer no longer makes this part, and there's no substitute part

Rear Fork 62345
#10A

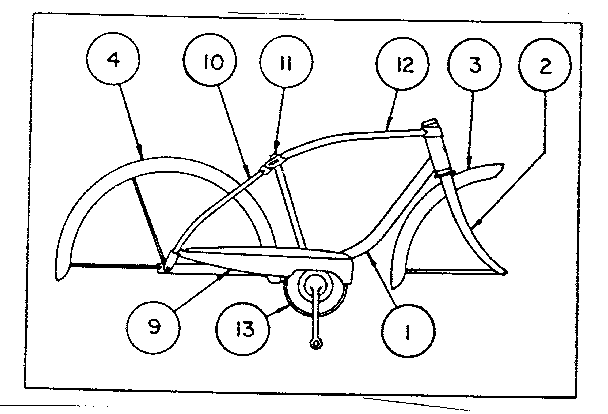

Frame assembly diagram

Rear fork

Part #62345

The manufacturer no longer makes this part, and there's no substitute part

Fndr/brace 62367
#4B

Frame assembly diagram

Fndr/brace

Part #62367

The manufacturer no longer makes this part, and there's no substitute part
