Model # 1162511290 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1162511290 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

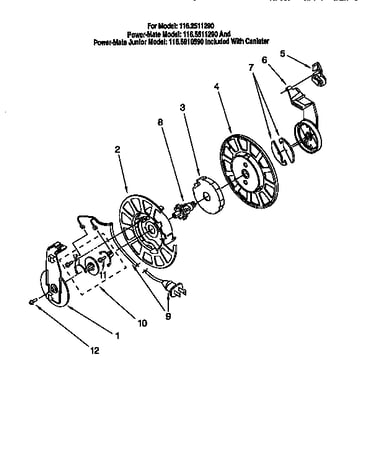

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Vacuum Grip Handle 4155620
#44

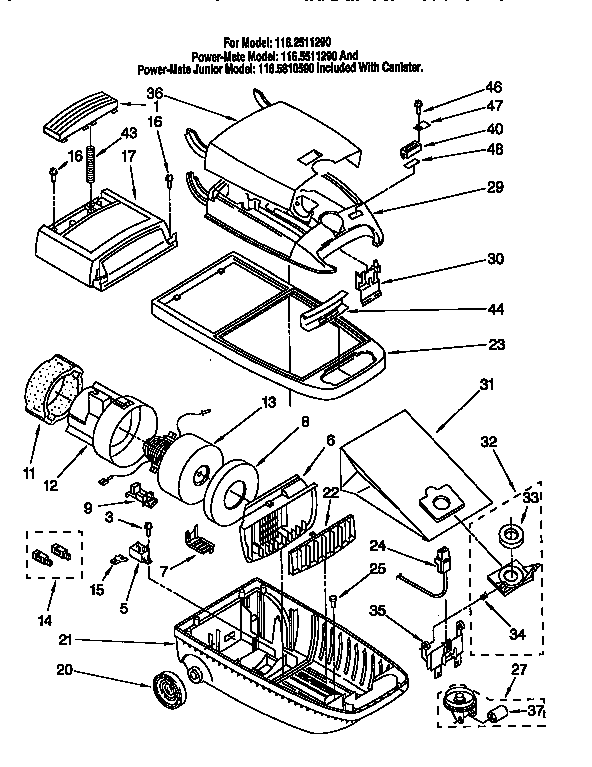

Canister diagram

Vacuum grip handle

Part #4155620

The manufacturer no longer makes this part, and there's no substitute part

Screw 4152468
#3

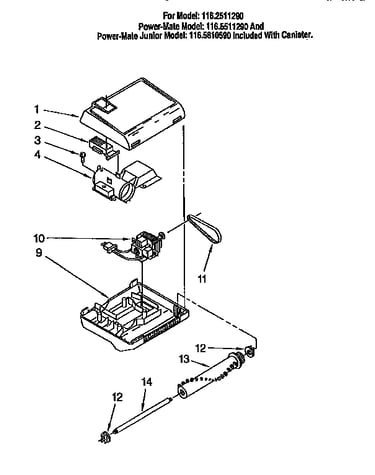

Power-mate (junior) 116.5810590 diagram

Screw

Part #4152468

Replaced by #W11693756

?
Manufacturer substitution
This part replaces 4152468. Substitute parts can look different from the original.
$13.06
In Stock
(not Serviced, Use Old ) Screw, Motor Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#22

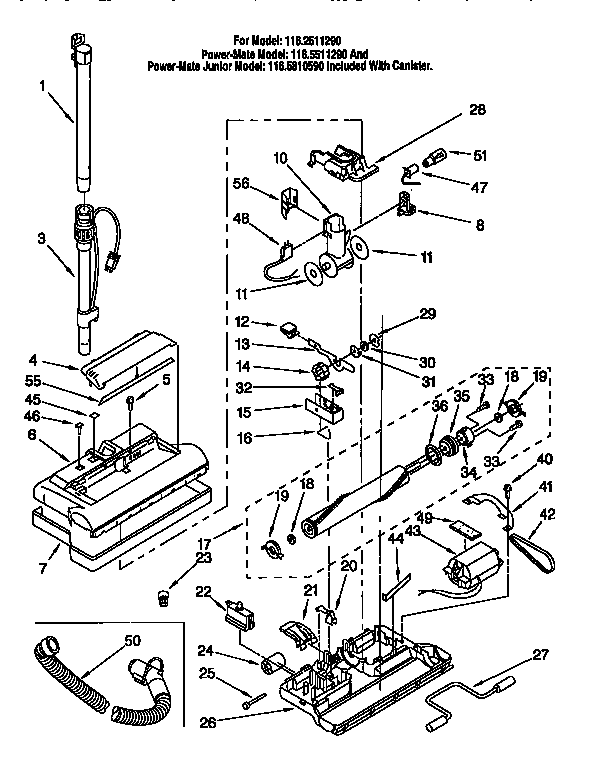

Power-mate 116.5511290 diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368879
Vacuum screw

Part #4368879

The manufacturer no longer makes this part, and there's no substitute part

Slide (black) 4369113
#14

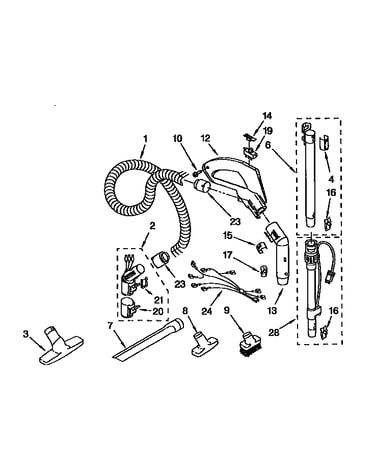

Hose and attachment diagram

Slide (black)

Part #4369113

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Roller 747117
#24

Power-mate 116.5511290 diagram

Nozzle roller

Part #747117

The manufacturer no longer makes this part, and there's no substitute part

Canister Hood 4153162
#10

Power-mate 116.5511290 diagram

Canister hood

Part #4153162

The manufacturer no longer makes this part, and there's no substitute part

Hose 4369110
#1

Hose and attachment diagram

Hose

Part #4369110

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Lever 747287
#13

Power-mate 116.5511290 diagram

Adjustment lever

Part #747287

The manufacturer no longer makes this part, and there's no substitute part
