Gibson
Room Air Conditioner

Model # GAB067P7B1 Official Gibson room air conditioner - 5995224309

Here are the diagrams and repair parts for Official Gibson GAB067P7B1 room air conditioner - 5995224309, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#3

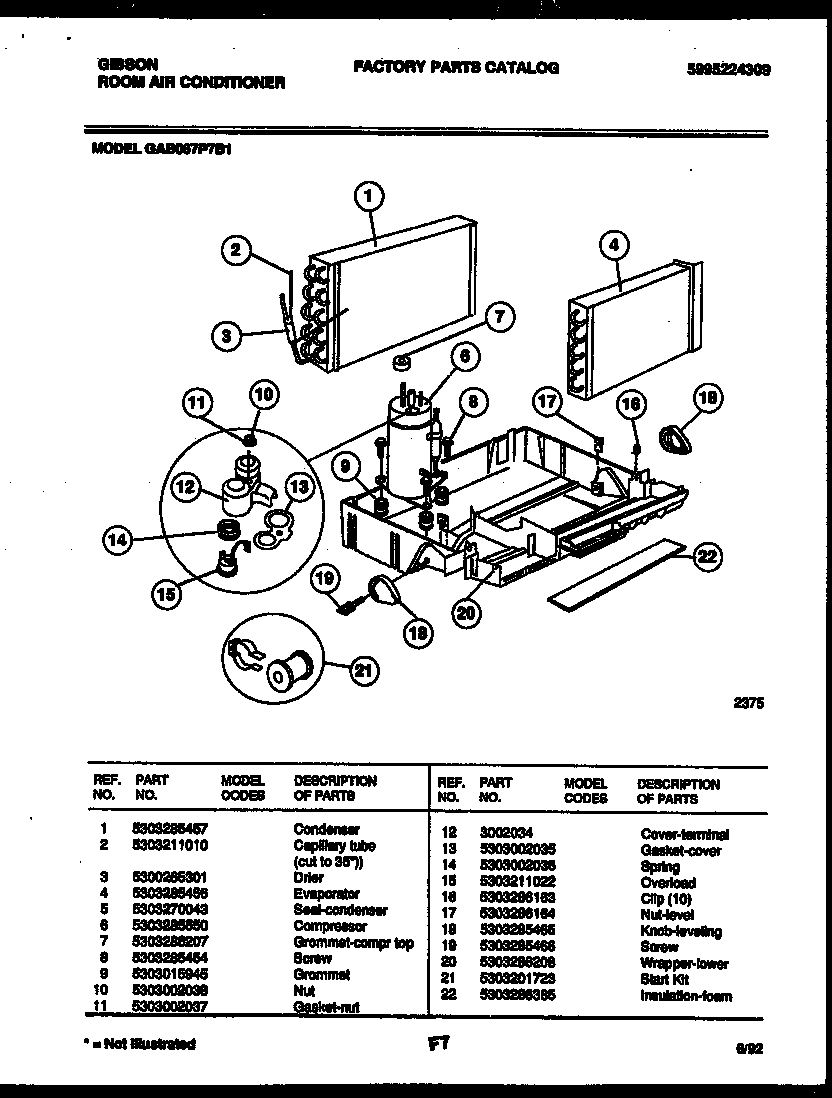

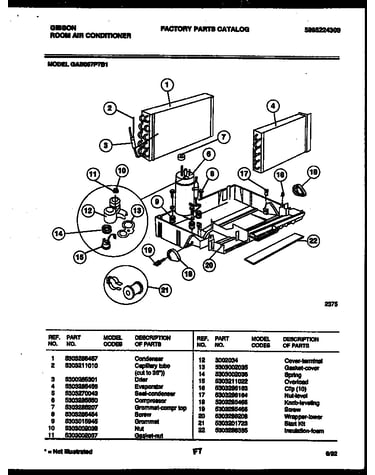

System parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Screw 5308007473
#3

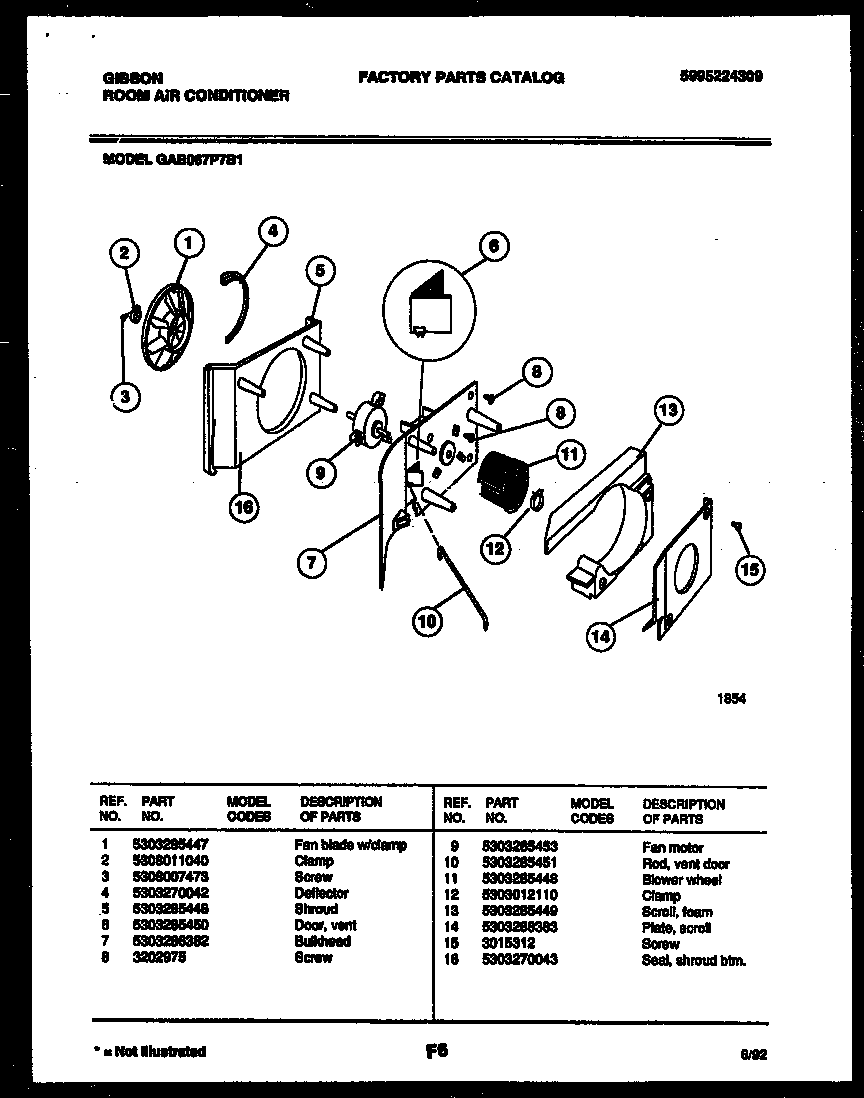

Air handling parts diagram

Screw

Part #5308007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 5308007473. Substitute parts can look different from the original.
$13.26
In Stock
Gibson Plate-name R 5303289567

#NI

All parts diagram

Gibson plate-name r

Part #5303289567

This item is not returnable
$3.99
In Stock
Screw 3202975
#8

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Gasket 3002603

#NI

All parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Bracket Screw 3015312
Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Scroll 5303285449
#13

Air handling parts diagram

Scroll

Part #5303285449

The manufacturer no longer makes this part, and there's no substitute part

Grommet 5303286207
#7

System parts diagram

Grommet

Part #5303286207

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Level 5303285465
#18

System parts diagram

Air conditioner level

Part #5303285465

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 5303002038
#10

System parts diagram

Terminal cover

Part #5303002038

The manufacturer no longer makes this part, and there's no substitute part
