Homelite
Lawn Edger

Model # UT22086-B Official Homelite edger

Here are the diagrams and repair parts for Official Homelite UT22086-B edger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Guard Sup Br 0125931
#7

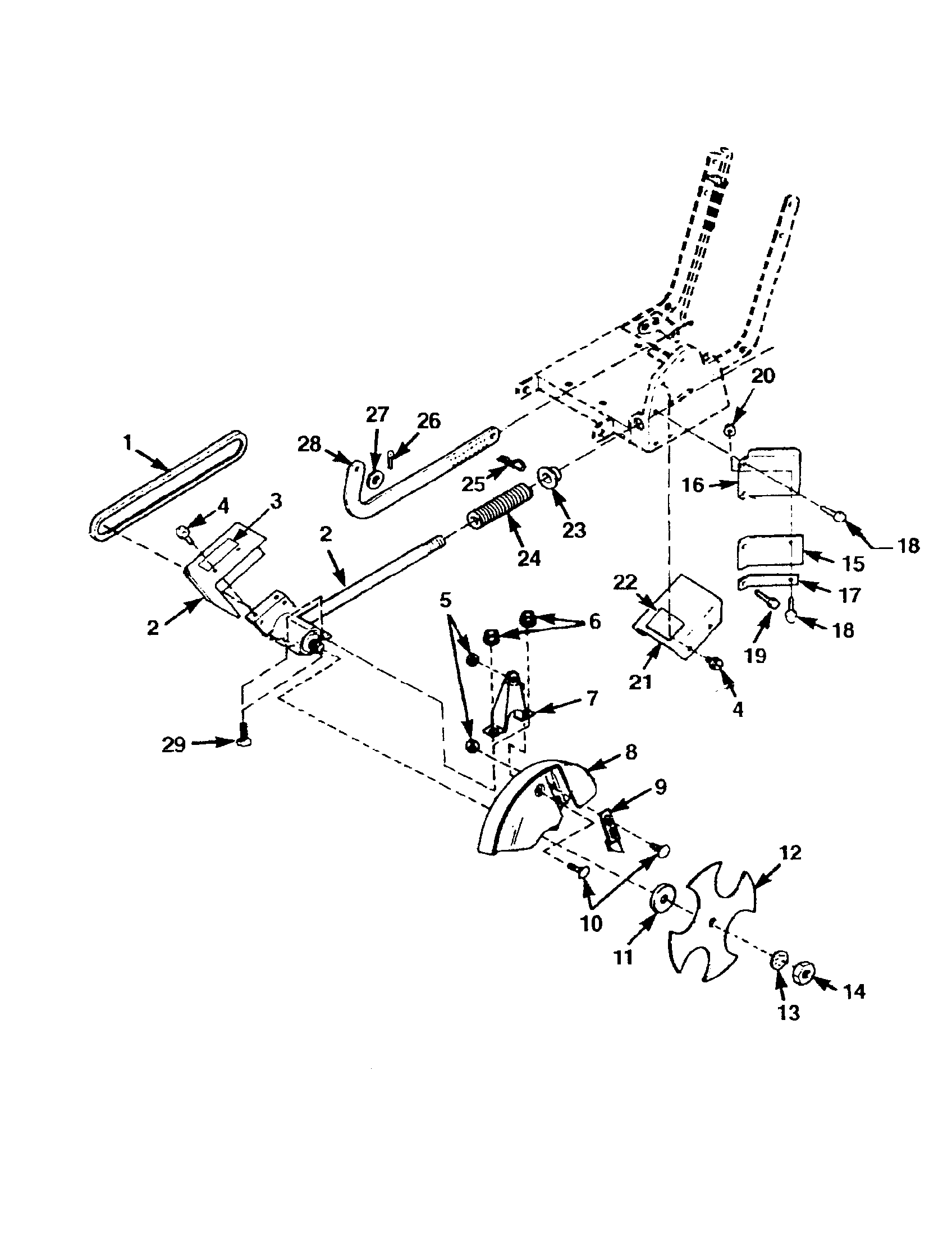

Cutterhead assembly diagram

Guard sup br

Part #0125931

The manufacturer no longer makes this part, and there's no substitute part

Blade Guard 0125916
#8

Cutterhead assembly diagram

Blade guard

Part #0125916

The manufacturer no longer makes this part, and there's no substitute part

Screw 80052
#19

Cutterhead assembly diagram

Screw

Part #80052

The manufacturer no longer makes this part, and there's no substitute part

(ut-04005) Eagle (no.67) (name 5-15r, Single) N/P
(ut-04005) eagle (no.67) (name 5-15r, single)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Edger Blade 01245
#12

Cutterhead assembly diagram

Edger blade

Part #01245

The manufacturer no longer makes this part, and there's no substitute part

Dust Shld Wa 0125924
#11

Cutterhead assembly diagram

Dust shld wa

Part #0125924

The manufacturer no longer makes this part, and there's no substitute part

Eye Bolt JA354532
#3

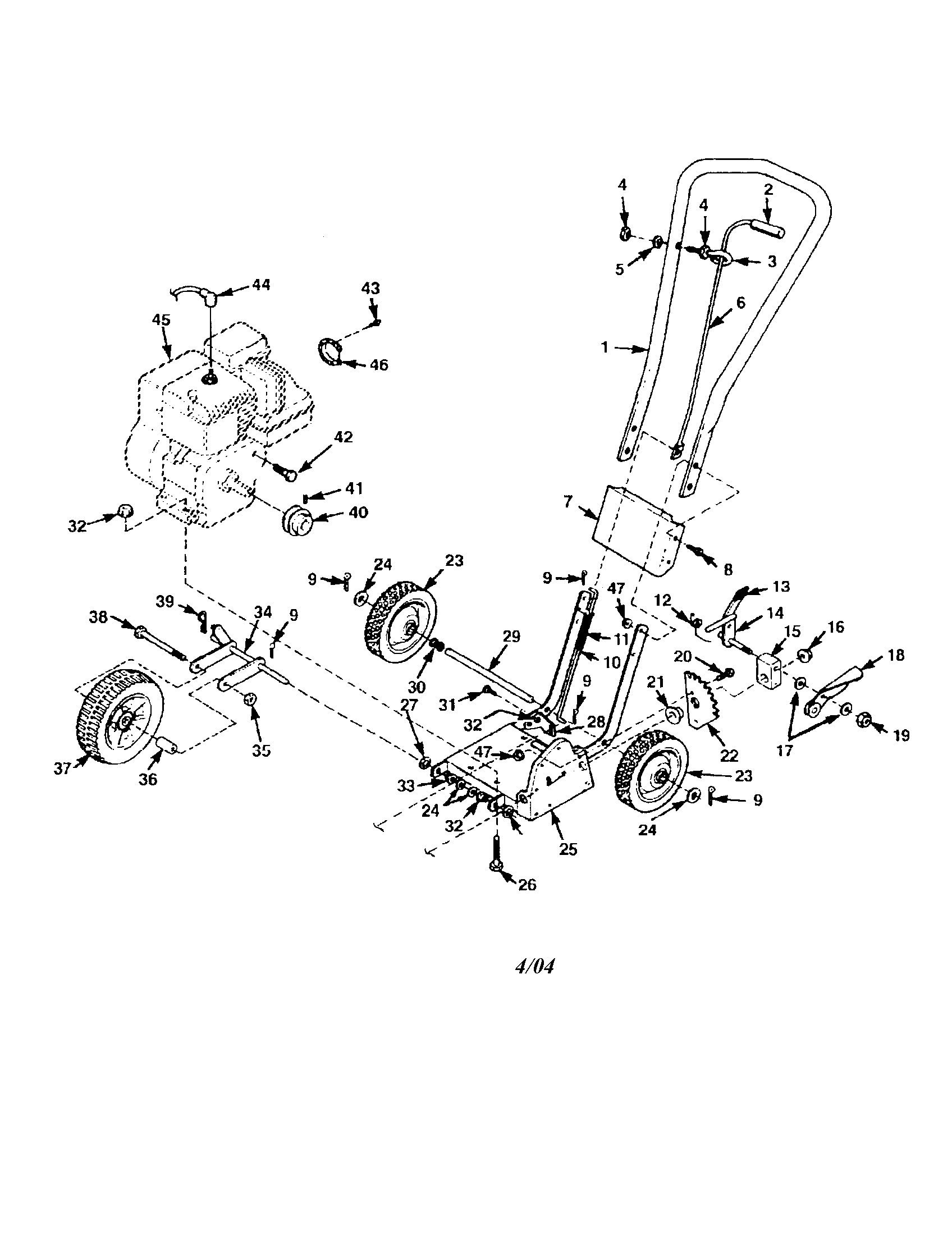

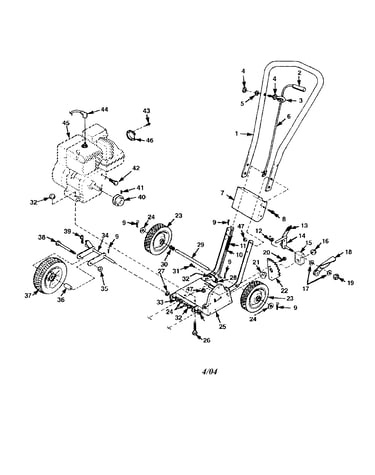

Engine/handle/wheels diagram

Eye bolt

Part #JA354532

The manufacturer no longer makes this part, and there's no substitute part

Pulley 0125938
#40

Engine/handle/wheels diagram

Pulley

Part #0125938

The manufacturer no longer makes this part, and there's no substitute part

Grip 0125920
#2

Engine/handle/wheels diagram

Grip

Part #0125920

The manufacturer no longer makes this part, and there's no substitute part

Debris Flap Assembly, Bracket-debris 0125949
#17

Cutterhead assembly diagram

Debris flap assembly, bracket-debris

Part #0125949

The manufacturer no longer makes this part, and there's no substitute part
