White-Westinghouse
Room Air Conditioner

Model # WAS226G2A1 Official White-Westinghouse room air conditioner

Here are the diagrams and repair parts for Official White-Westinghouse WAS226G2A1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

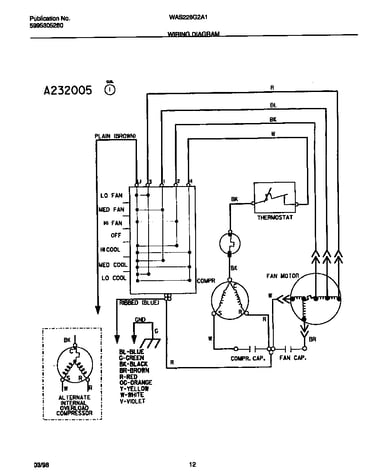

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Westinghouse Screw-wrapper 5303293767
#39

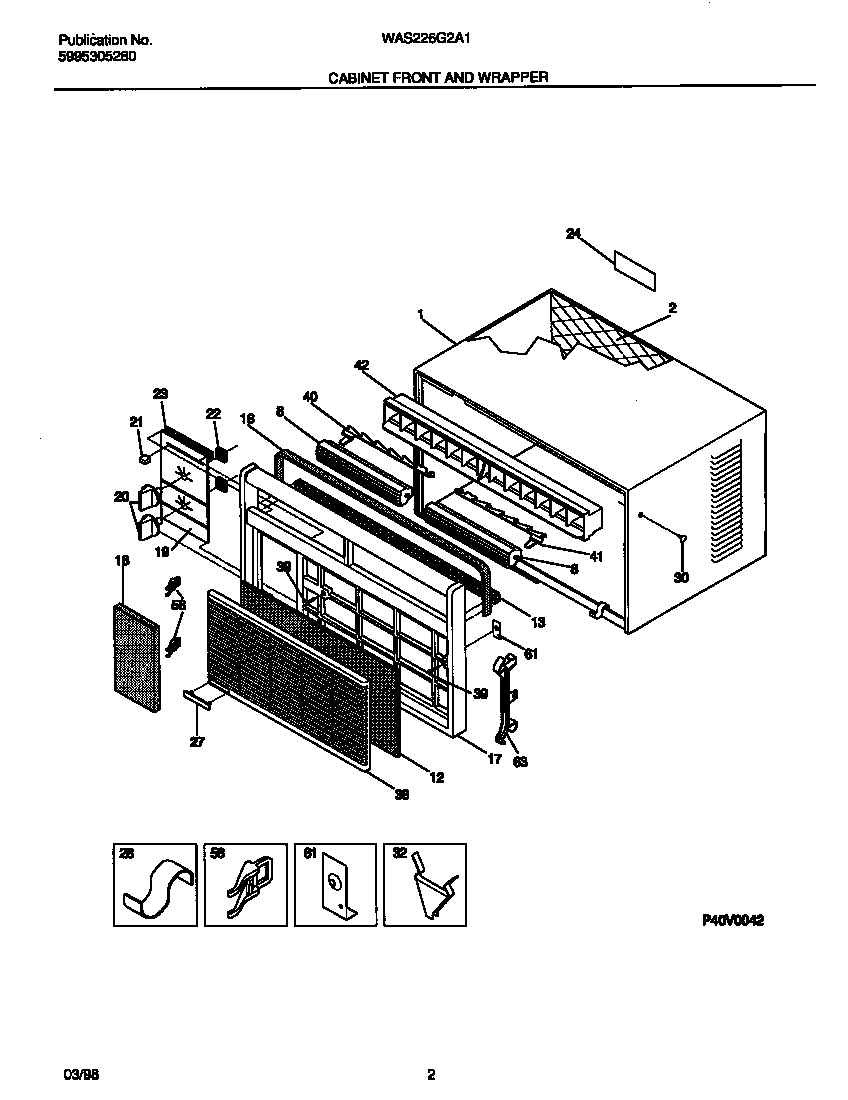

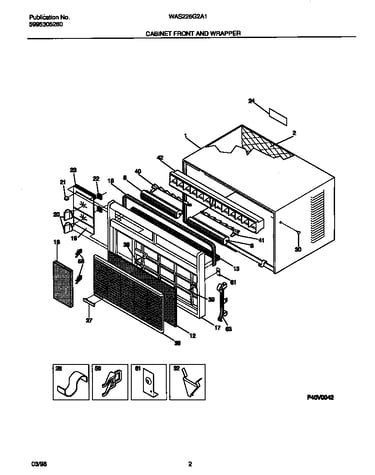

Cabinet front and wrapper diagram

Westinghouse screw-wrapper

Part #5303293767

This item is not returnable
$5.80
In Stock
Bracket Screw 3015312
#18

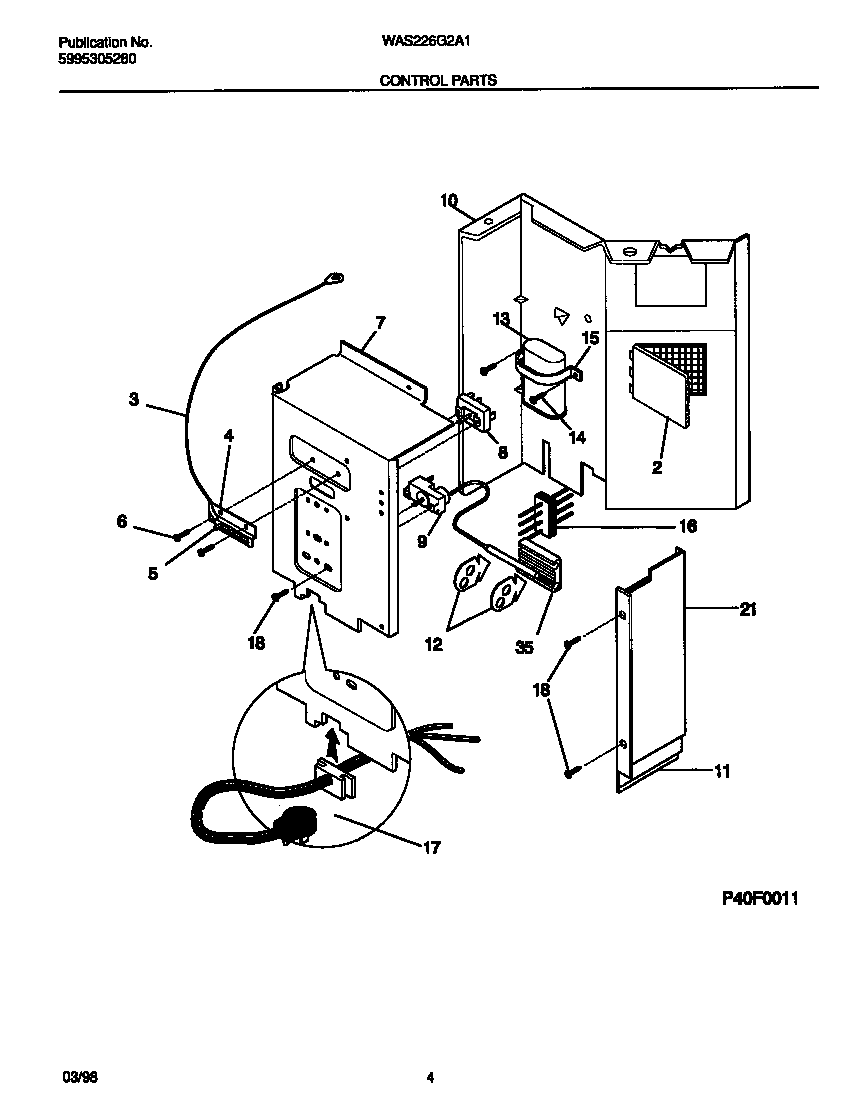

Control parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Universal/multiflex (frigidaire) Partition 5303295753
#10

Control parts diagram

Universal/multiflex (frigidaire) partition

Part #5303295753

$32.49
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#17

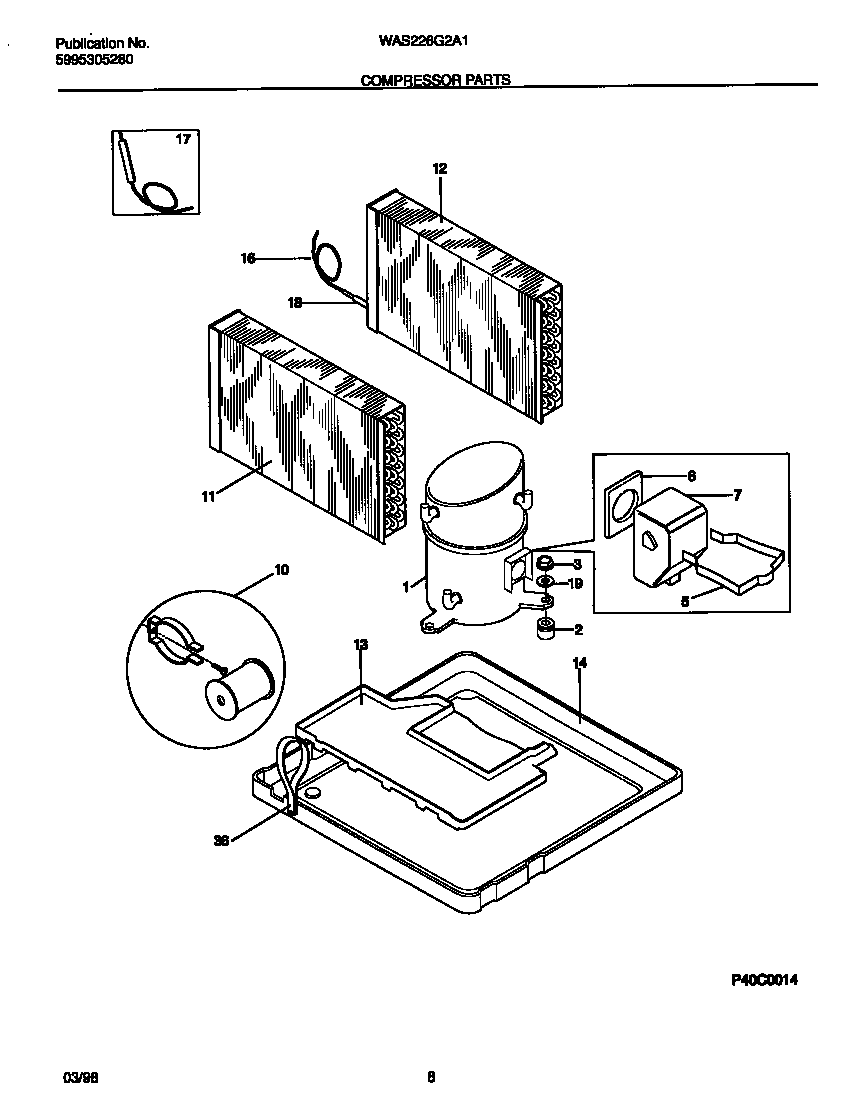

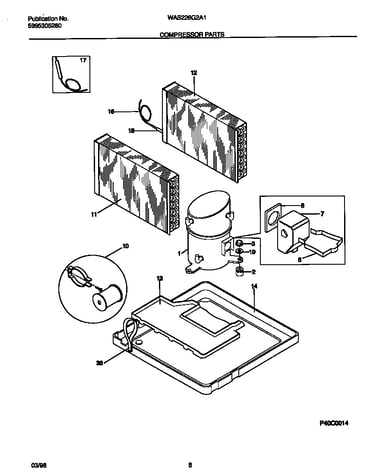

Compressor parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Universal/multiflex (frigidaire) Cover 5303002067
#7

Compressor parts diagram

Universal/multiflex (frigidaire) cover

Part #5303002067

$14.32
In Stock
Screw 3202975
#2

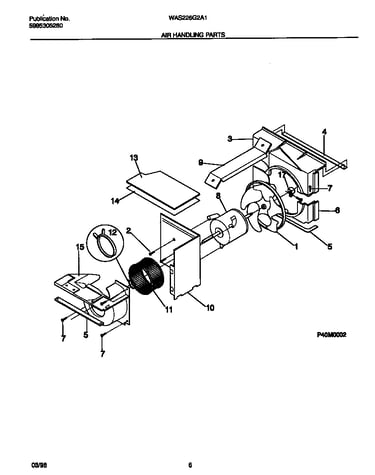

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Motor 5303017557
#8

Air handling parts diagram

Motor

Part #5303017557

Replaced by #309630608

?
Manufacturer substitution
This part replaces 5303017557. Substitute parts can look different from the original.
$376.68
In Stock
Nut-hex 3017023
#12

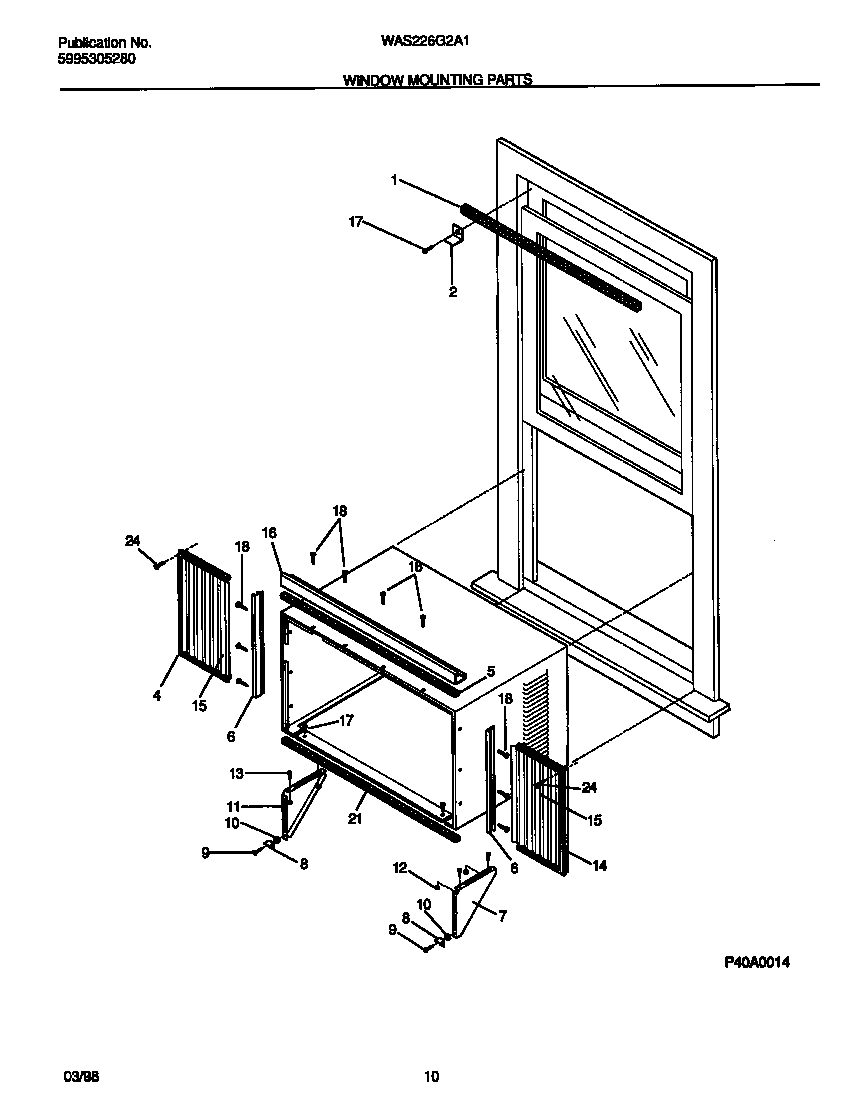

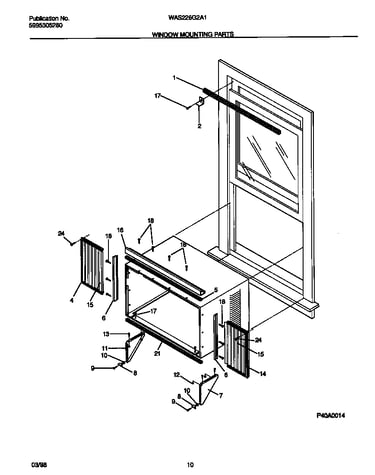

Window mounting parts diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Washer 5303002664
#19

Compressor parts diagram

Washer

Part #5303002664

The manufacturer no longer makes this part, and there's no substitute part
