Model # GFC290R-01 Official GE garbage disposal

Here are the diagrams and repair parts for Official GE GFC290R-01 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

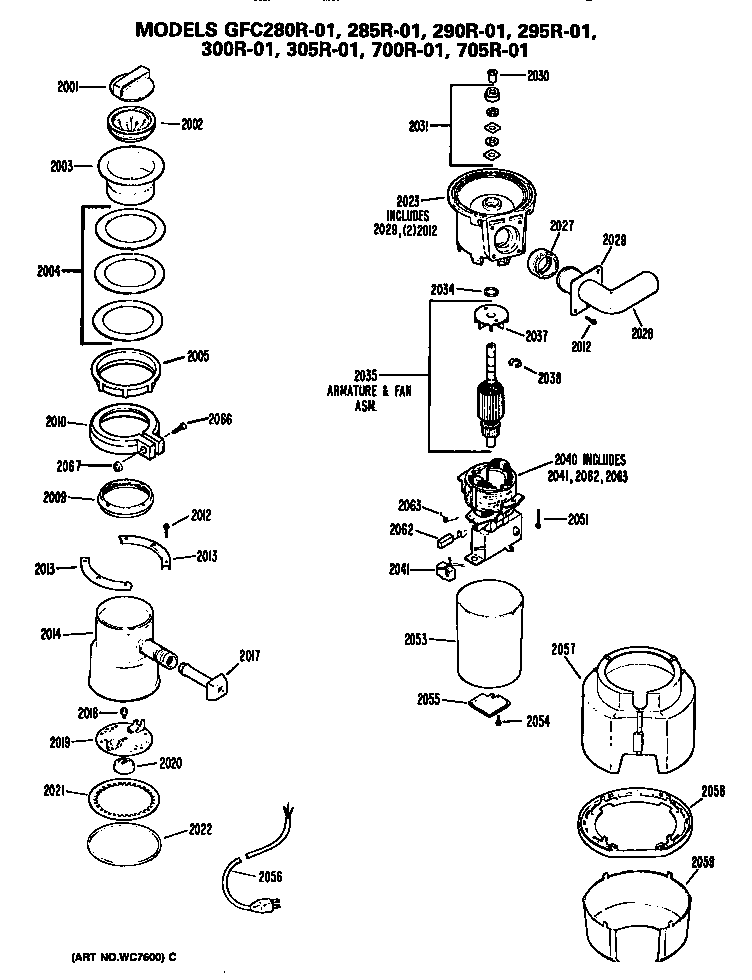

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Nut 1/4-20ss WC1X285

#2067

All parts diagram

Nut 1/4-20ss

Part #WC1X285

This item is not returnable
$2.16
In Stock
Armature Assembly WC26X81

#2035

All parts diagram

Armature assembly

Part #WC26X81

$62.49
In Stock
Splash Guard WC3X125

#2002

All parts diagram

Splash guard

Part #WC3X125

Replaced by #WC11X20163

?
Manufacturer substitution
This part replaces WC3X125. Substitute parts can look different from the original.
$14.56 |
12% OFF Phone Price : $16.56
In Stock
Flywheel WC19X41

#2019

All parts diagram

Flywheel

Part #WC19X41

The manufacturer no longer makes this part, and there's no substitute part

Drain Conn Seal Plug WC14X35

#2017

All parts diagram

Drain conn seal plug

Part #WC14X35

The manufacturer no longer makes this part, and there's no substitute part

Hopper Boot WC3X117

#2009

All parts diagram

Hopper boot

Part #WC3X117

The manufacturer no longer makes this part, and there's no substitute part

Washer WC1X277

#2034

All parts diagram

Washer

Part #WC1X277

The manufacturer no longer makes this part, and there's no substitute part

Shroud WC24X223

#2057

All parts diagram

Shroud

Part #WC24X223

The manufacturer no longer makes this part, and there's no substitute part

Cover WC24X235

#2053

All parts diagram

Cover

Part #WC24X235

The manufacturer no longer makes this part, and there's no substitute part

Strainer WC20X25

#2021

All parts diagram

Strainer

Part #WC20X25

The manufacturer no longer makes this part, and there's no substitute part
