Hotpoint
Countertop Microwave

Model # RE50C001 Official Hotpoint microwave

Here are the diagrams and repair parts for Official Hotpoint RE50C001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

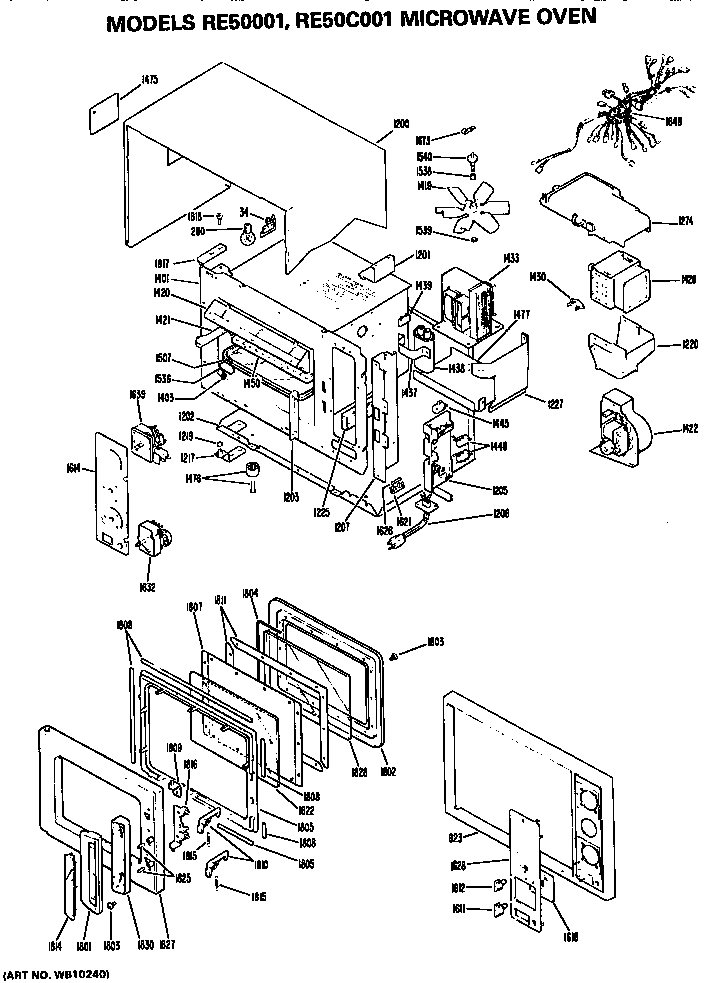

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |

Rectifier WB27X5318

#1439

All parts diagram

Rectifier

Part #WB27X5318

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X5318. Substitute parts can look different from the original.
BEST SELLER
$79.22
7% OFF Phone Price : $85.22
In Stock
Caseouter Ad WB56X1718

#1200

All parts diagram

Caseouter ad

Part #WB56X1718

In Stock
Use And Care Guide 39-4533

#LITR

All parts diagram

Use and care guide

Part #39-4533

In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Spacer Aluminum WB2X7397

#1811

All parts diagram

Spacer aluminum

Part #WB2X7397

The manufacturer no longer makes this part, and there's no substitute part

Pin Foot WB2X7376

#1476

All parts diagram

Pin foot

Part #WB2X7376

The manufacturer no longer makes this part, and there's no substitute part

Trans Hv WB27X5317

#1433

All parts diagram

Trans hv

Part #WB27X5317

The manufacturer no longer makes this part, and there's no substitute part

Lead Diode WB18X5075

#1648

All parts diagram

Lead diode

Part #WB18X5075

The manufacturer no longer makes this part, and there's no substitute part

Power Cord WB18X5077

#1206

All parts diagram

Power cord

Part #WB18X5077

The manufacturer no longer makes this part, and there's no substitute part

Hinge WB10X5154

#1817

All parts diagram

Hinge

Part #WB10X5154

The manufacturer no longer makes this part, and there's no substitute part
