Model # AC110B14 Official Jenn-Air convent coil element cartridge

Here are the diagrams and repair parts for Official Jenn-Air AC110B14 convent coil element cartridge, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Surface Element 7406P480-60
#4

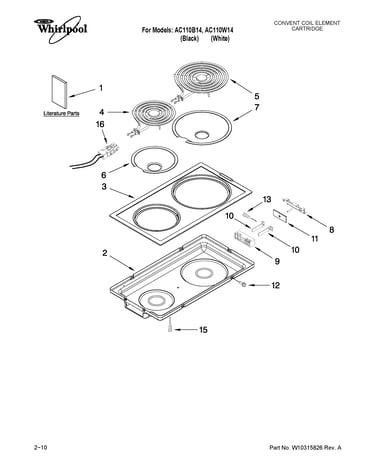

Conventional cartridge diagram

Surface element

Part #7406P480-60

Replaced by #WP660532

?
Manufacturer substitution
This part replaces 7406P480-60. Substitute parts can look different from the original.
BEST SELLER
$30.06 |
17% OFF Phone Price : $36.06
In Stock
Surface Element 7406P478-60
#5

Conventional cartridge diagram

Surface element

Part #7406P478-60

Replaced by #WP3191454

?
Manufacturer substitution
This part replaces 7406P478-60. Substitute parts can look different from the original.
$88.82 |
6% OFF Phone Price : $94.82
In Stock
Screw 7101P403-60
#12

Conventional cartridge diagram

Screw

Part #7101P403-60

Replaced by #WP12990527

?
Manufacturer substitution
This part replaces 7101P403-60. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 7101P394-60
#15

Conventional cartridge diagram

Screw

Part #7101P394-60

Replaced by #W11206744

?
Manufacturer substitution
This part replaces 7101P394-60. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Insulator, Contact Spade 7003P078-60
#11

Conventional cartridge diagram

Insulator, contact spade

Part #7003P078-60

The manufacturer no longer makes this part, and there's no substitute part

Cartridge, Top (white) 2002F122-81
#3

Conventional cartridge diagram

Cartridge, top (white)

Part #2002F122-81

The manufacturer no longer makes this part, and there's no substitute part

Bracket Support 3801F409-51
#8

Conventional cartridge diagram

Bracket support

Part #3801F409-51

The manufacturer no longer makes this part, and there's no substitute part

Screw 7101P445-60
#13

Conventional cartridge diagram

Screw

Part #7101P445-60

The manufacturer no longer makes this part, and there's no substitute part

Pan 3401F088-80
#2

Conventional cartridge diagram

Pan

Part #3401F088-80

The manufacturer no longer makes this part, and there's no substitute part

Cartridge, Top (black) 2002F122-90
#3A

Conventional cartridge diagram

Cartridge, top (black)

Part #2002F122-90

The manufacturer no longer makes this part, and there's no substitute part
