Model # M145 Official Jenn-Air microwave

Here are the diagrams and repair parts for Official Jenn-Air M145 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

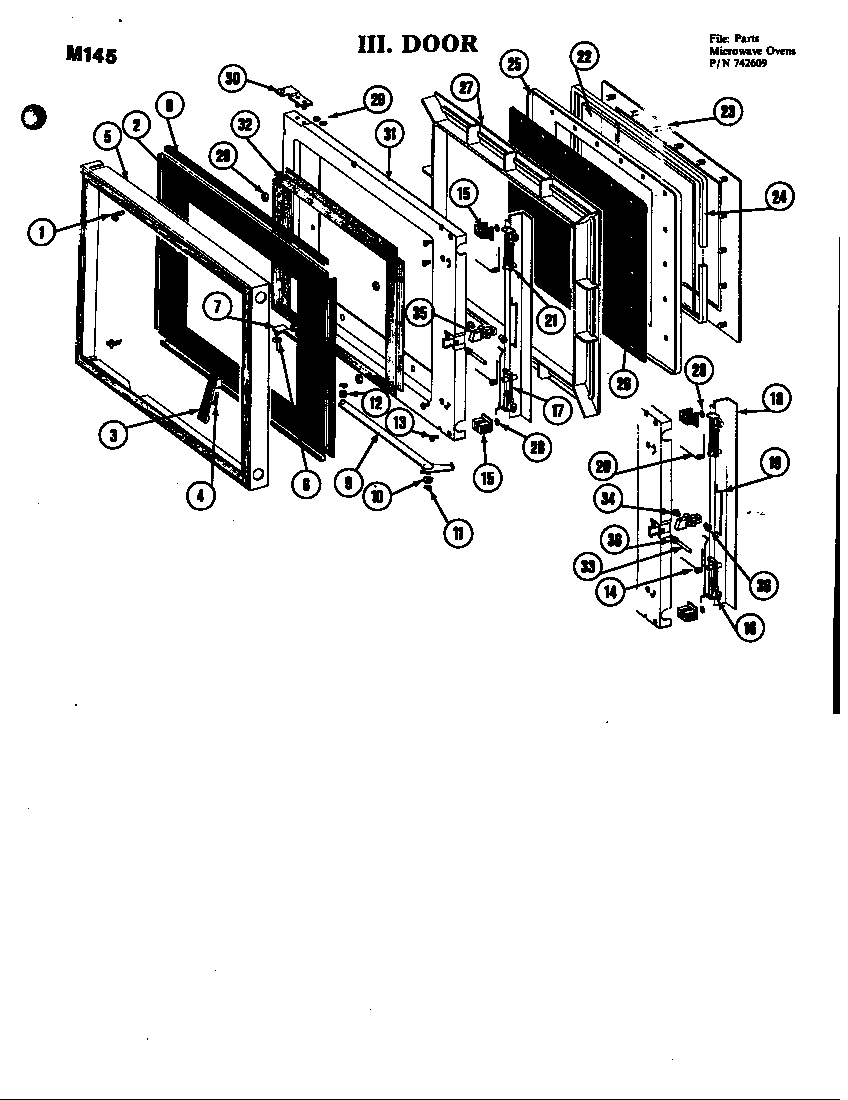

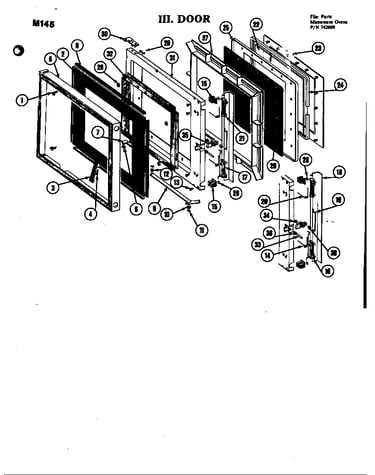

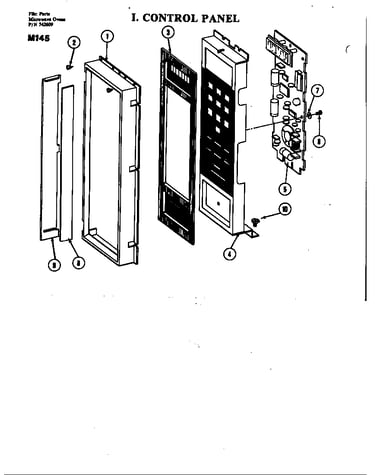

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Screw 766101
#29

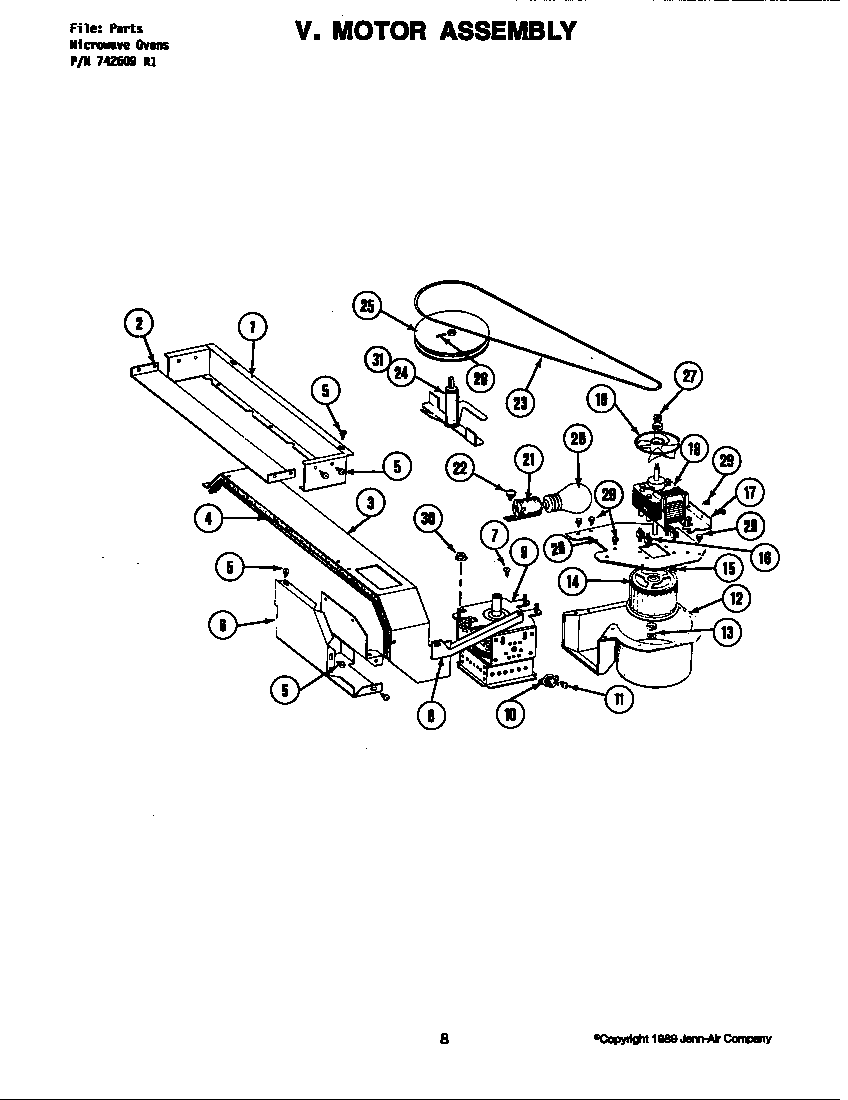

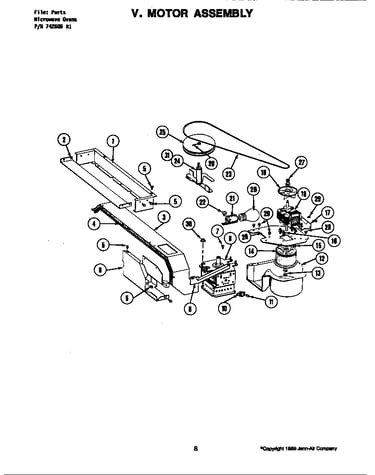

Motor assy. diagram

Screw

Part #766101

Replaced by #M0216703

?
Manufacturer substitution
This part replaces 766101. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw 766019
Screw

Part #766019

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 766019. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Transformer 766025
#15

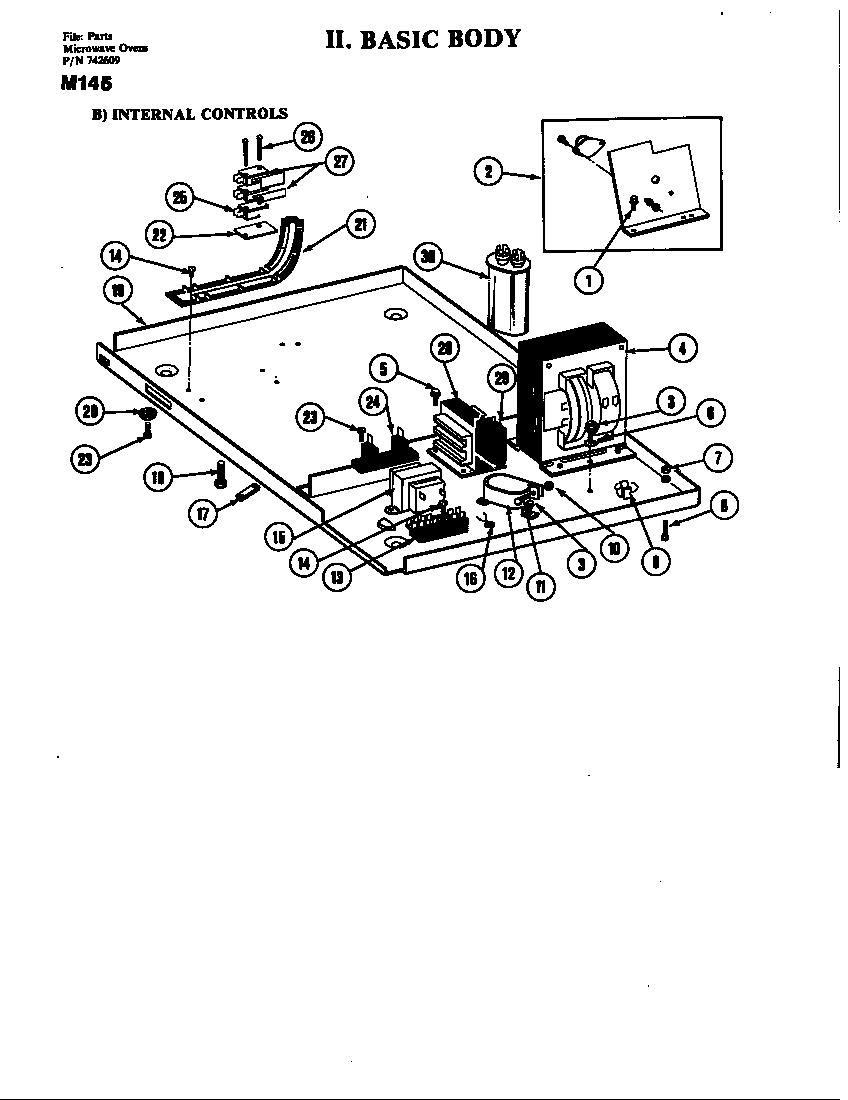

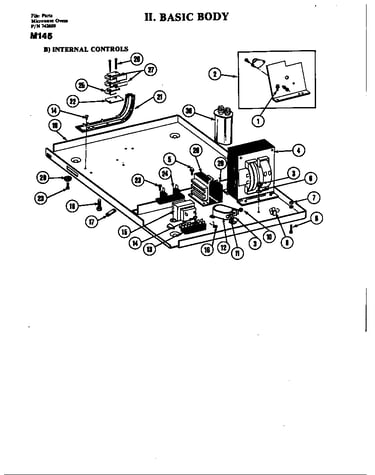

Basic body-internal controls diagram

Transformer

Part #766025

The manufacturer no longer makes this part, and there's no substitute part

Triac 766035
#2

Basic body-internal controls diagram

Triac

Part #766035

The manufacturer no longer makes this part, and there's no substitute part

Door Arm Guide 766021
#21

Basic body-internal controls diagram

Door arm guide

Part #766021

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 766066
#17

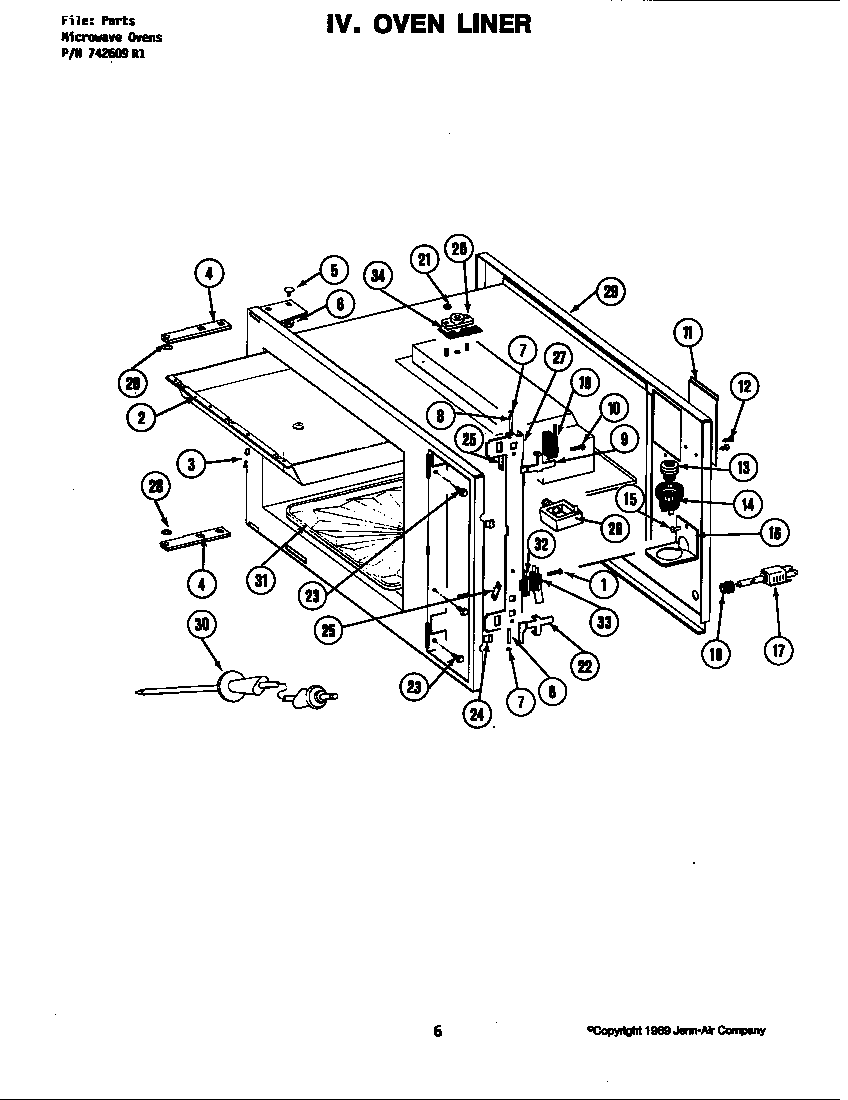

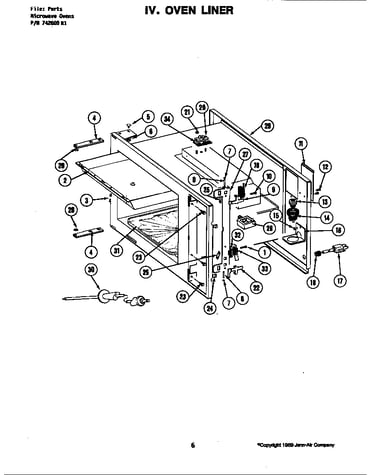

Oven liner diagram

Power cord

Part #766066

The manufacturer no longer makes this part, and there's no substitute part

Rivet 766116
#15

Oven liner diagram

Rivet

Part #766116

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 766139
#10

Motor assy. diagram

Thermostat

Part #766139

The manufacturer no longer makes this part, and there's no substitute part

Rectifier 766042
#24

Basic body-internal controls diagram

Rectifier

Part #766042

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Trim 766193
#7

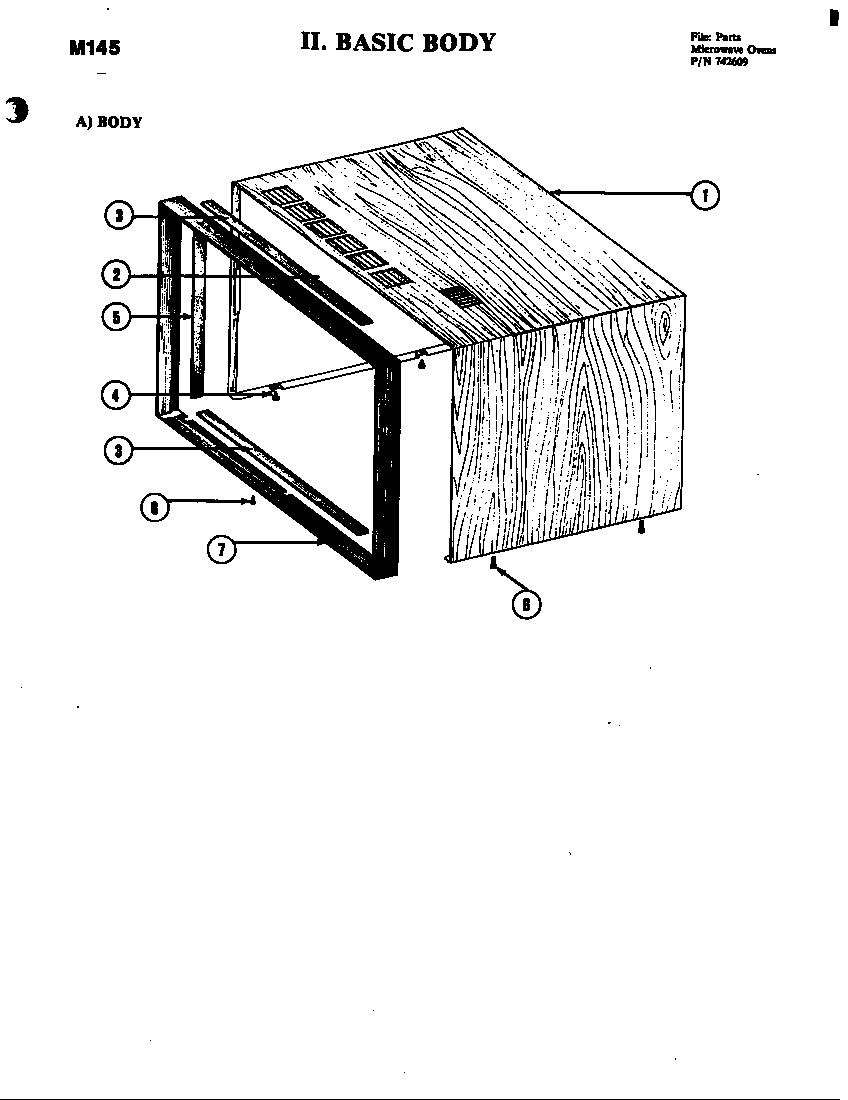

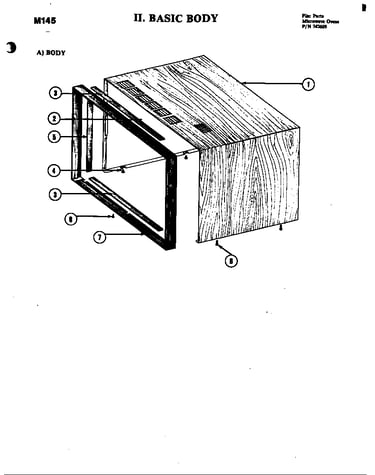

Basic body diagram

Cabinet trim

Part #766193

The manufacturer no longer makes this part, and there's no substitute part
