Amana
Countertop Microwave

Model # SA1075.000 Official Amana microwave

Here are the diagrams and repair parts for Official Amana SA1075000 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

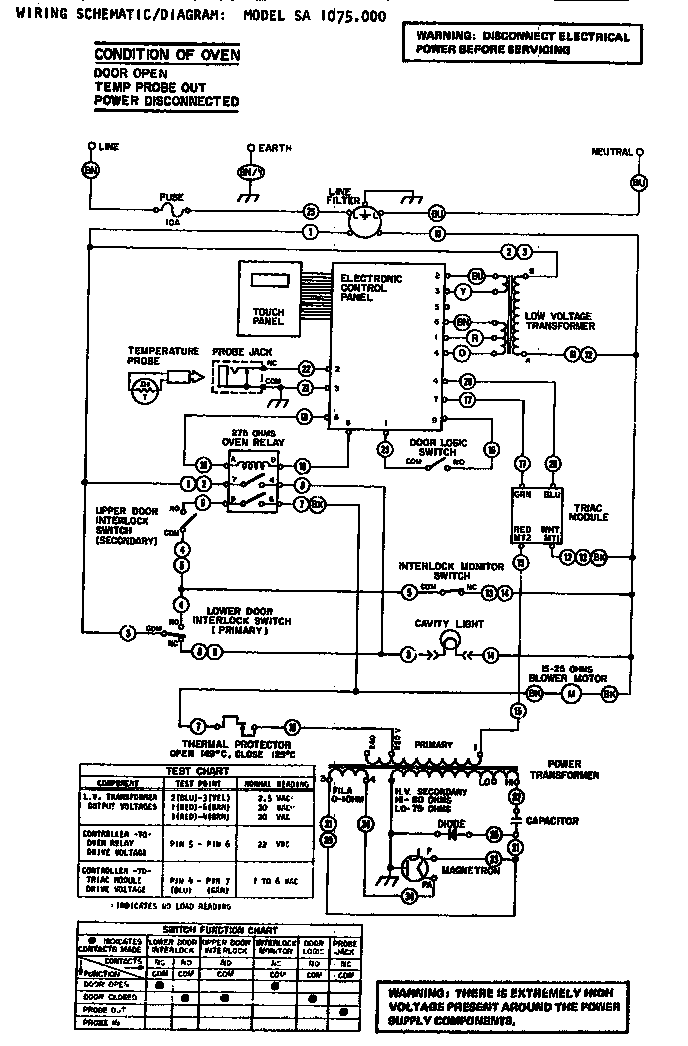

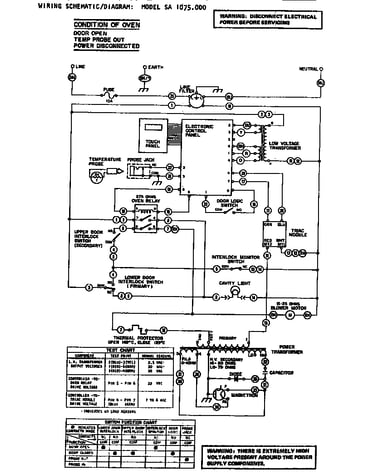

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |

Diode M3D29
#68A

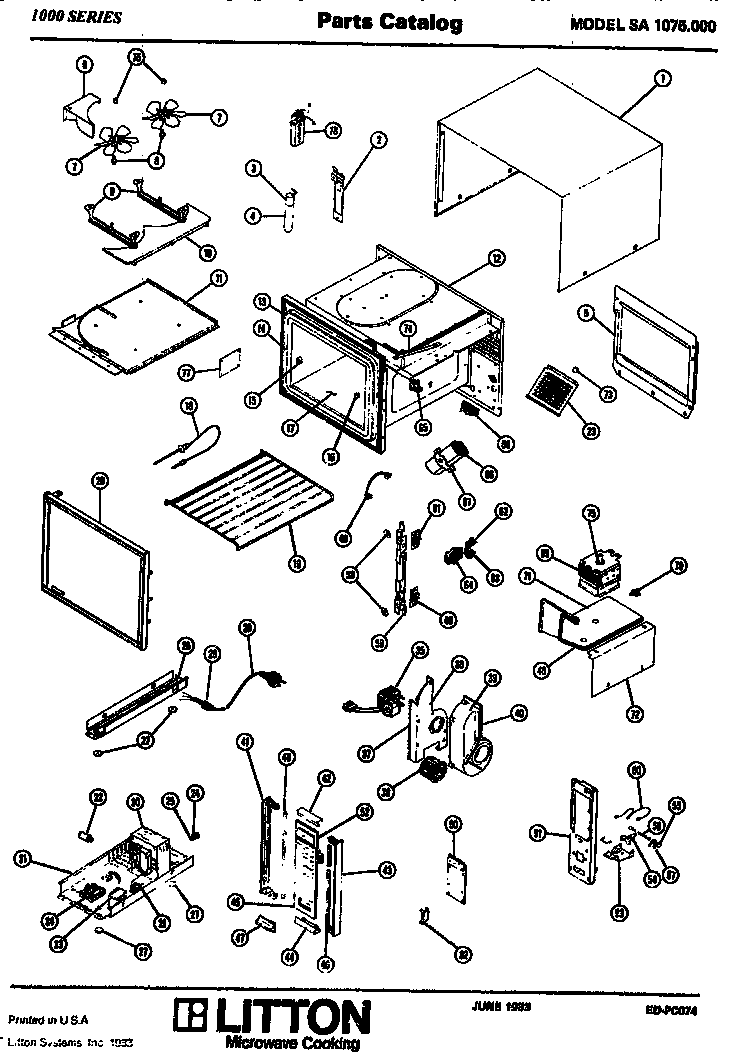

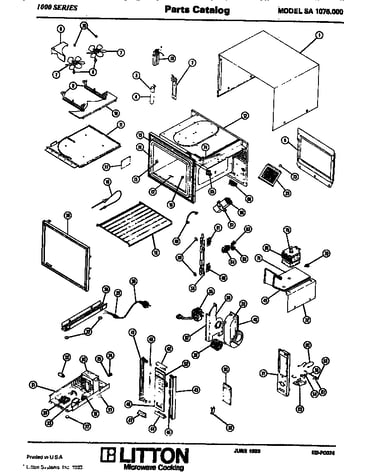

Replacement parts diagram

Diode

Part #M3D29

The manufacturer no longer makes this part, and there's no substitute part

Door Stop Cushion M1D239
Door stop cushion

Part #M1D239

The manufacturer no longer makes this part, and there's no substitute part

Groud Lead, Diode M5D263
#68F

Replacement parts diagram

Groud lead, diode

Part #M5D263

The manufacturer no longer makes this part, and there's no substitute part

Door Assembly M68D136
#20A

Replacement parts diagram

Door assembly

Part #M68D136

The manufacturer no longer makes this part, and there's no substitute part

Control Board Trim (top) M7D403
#42A

Replacement parts diagram

Control board trim (top)

Part #M7D403

The manufacturer no longer makes this part, and there's no substitute part

Keps Nut 4-40 (2 Req.) M1D360
#25C

Replacement parts diagram

Keps nut 4-40 (2 req.)

Part #M1D360

The manufacturer no longer makes this part, and there's no substitute part

Lamp Access Door M20D176
#2A

Replacement parts diagram

Lamp access door

Part #M20D176

The manufacturer no longer makes this part, and there's no substitute part

L.v. Transformer M60D109
#33A

Replacement parts diagram

L.v. transformer

Part #M60D109

The manufacturer no longer makes this part, and there's no substitute part

Membrane Touch Panel Assembly M7D576
#45

Replacement parts diagram

Membrane touch panel assembly

Part #M7D576

The manufacturer no longer makes this part, and there's no substitute part

Screw And Washer, Foot Mtg. M1D828
#27B

Replacement parts diagram

Screw and washer, foot mtg.

Part #M1D828

The manufacturer no longer makes this part, and there's no substitute part
