Model # 831150470 Official Weider pro 545 weight system

Here are the diagrams and repair parts for Official Weider 831150470 pro 545 weight system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |

Puly,3.5",w/ 101262
#24

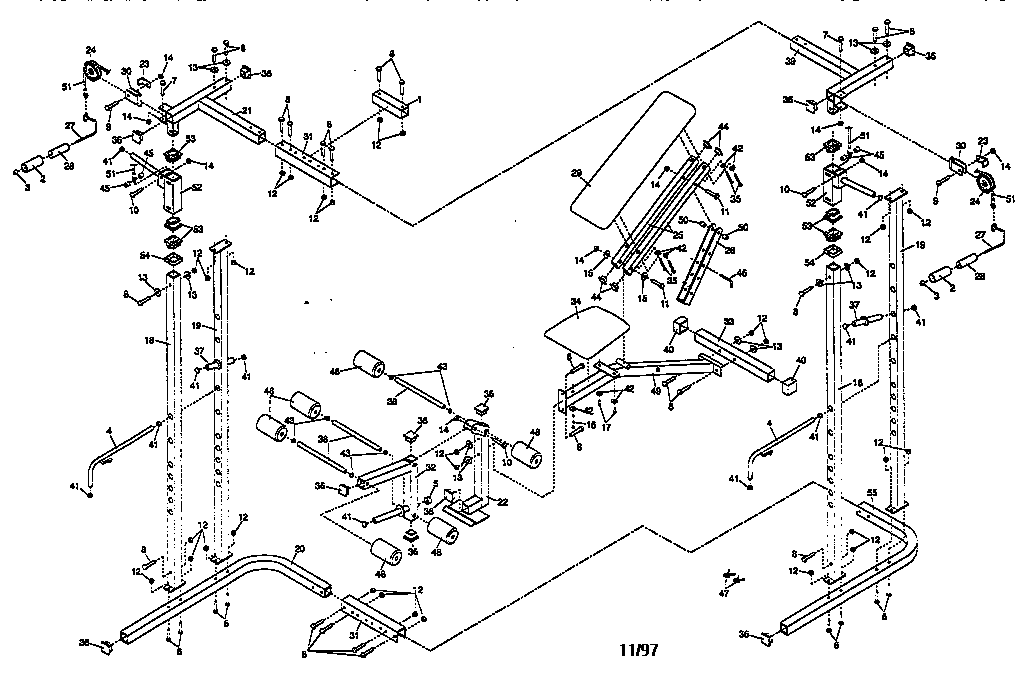

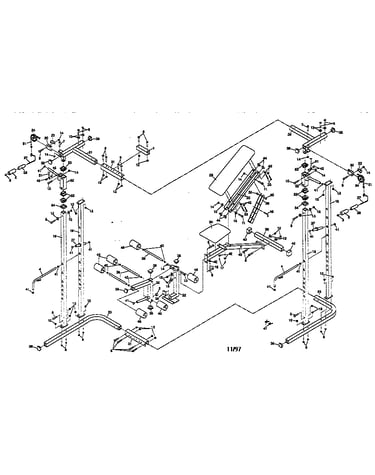

Unit parts diagram

Puly,3.5",w/

Part #101262

Replaced by #230475

?
Manufacturer substitution
This part replaces 101262. Substitute parts can look different from the original.
$43.99
12% OFF Phone Price : $49.99
In Stock
Elliptical Nut 012042
#12

Unit parts diagram

Elliptical nut

Part #012042

This item is not returnable
In Stock
Lifestyler Weight System Leg Extension Foam Roller Pad 140239
#48

Unit parts diagram

Lifestyler weight system leg extension foam roller pad

Part #140239

This item is not returnable
$10.39
16% OFF Phone Price : $12.39
In Stock
Weider Om,150470 139869

#NI

All parts diagram

Weider om,150470

Part #139869

This item is not returnable
In Stock
Tube Fix Kit 142651

#NI

All parts diagram

Tube fix kit

Part #142651

In Stock
Cn,assy Upda 141042

#NI

All parts diagram

Cn,assy upda

Part #141042

This item is not returnable
In Stock
Nordictrack Collar 122321
#47

Unit parts diagram

Nordictrack collar

Part #122321

This item is not returnable
In Stock
Exercise Equipment Washer 140206
#15

Unit parts diagram

Exercise equipment washer

Part #140206

This item is not returnable
In Stock
Black & Decker Treadmill Washer 014063
#42

Unit parts diagram

Black & decker treadmill washer

Part #014063

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Weight System Carriage Bolt 132652
#6

Unit parts diagram

Weight system carriage bolt

Part #132652

This item is not returnable
In Stock
