Poulan
Gas Chainsaw

Model # 2500LE Official Poulan chainsaw

Here are the diagrams and repair parts for Official Poulan 2500LE chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#6

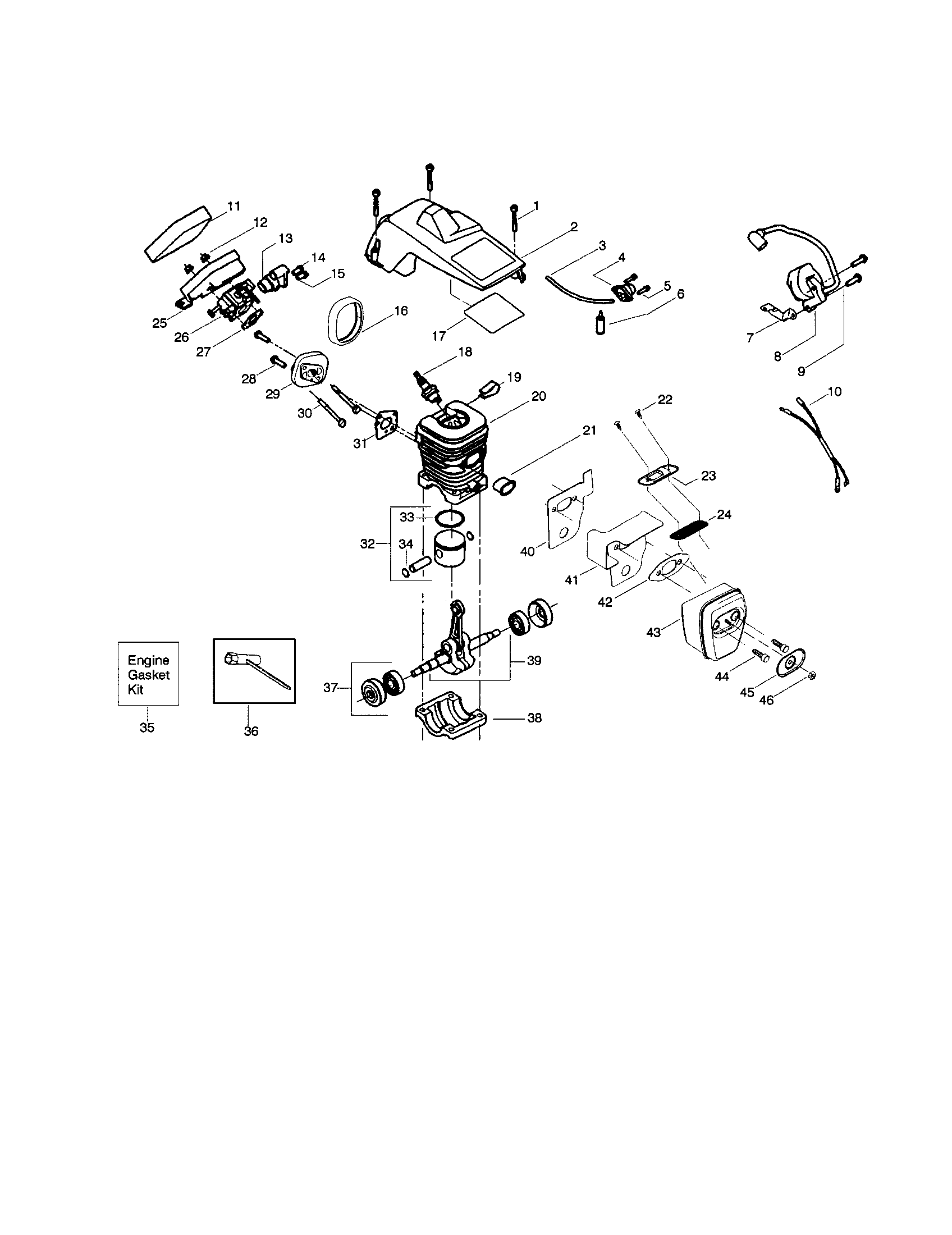

Cylinder shield/crankshaft diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
$8.67 |
10% OFF Phone Price : $9.67
In Stock
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#3

Cylinder shield/crankshaft diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.41 |
16% OFF Phone Price : $12.41
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#5

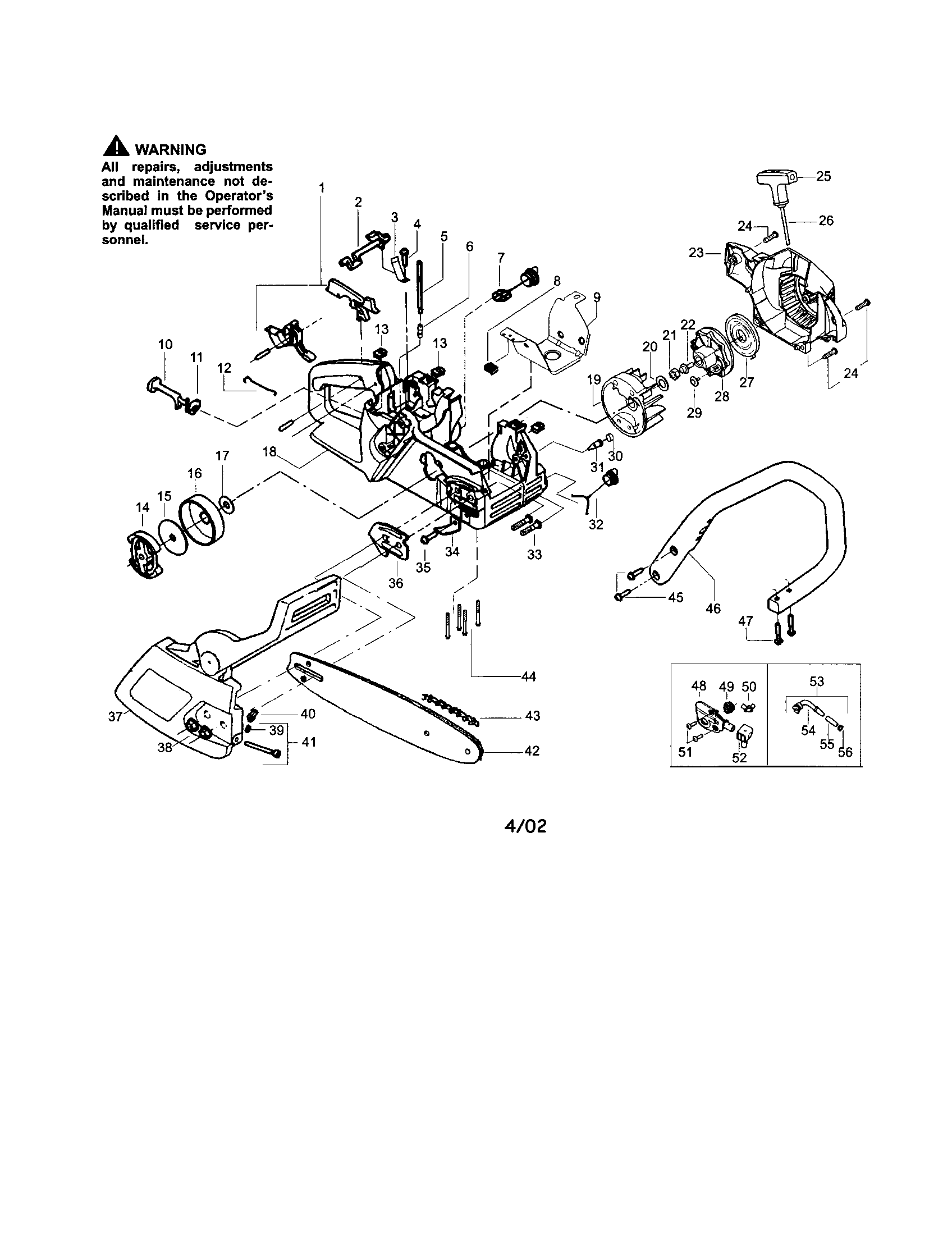

Fan housing/chain-14"/flywheel diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.87 |
12% OFF Phone Price : $16.87
In Stock
Primer Bulb 530047213
#4

Cylinder shield/crankshaft diagram

Primer bulb

Part #530047213

Replaced by #530071835

?
Manufacturer substitution
This part replaces 530047213. Substitute parts can look different from the original.
BEST SELLER
$15.32 |
12% OFF Phone Price : $17.32
In Stock
Lawn & Garden Equipment Engine Air Filter (replaces 5300377-93, 530-037793) 530037793
#11

Cylinder shield/crankshaft diagram

Lawn & garden equipment engine air filter (replaces 5300377-93, 530-037793)

Part #530037793

BEST SELLER
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Fuel Tank Cap 530047192
#7

Fan housing/chain-14"/flywheel diagram

Fuel tank cap

Part #530047192

Replaced by #580940901

?
Manufacturer substitution
This part replaces 530047192. Substitute parts can look different from the original.
BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Chain 952051209
#43

Fan housing/chain-14"/flywheel diagram

Chain

Part #952051209

Replaced by #91PX052G

?
Manufacturer substitution
This part replaces 952051209. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.24 |
18% OFF Phone Price : $34.24
In Stock
Chainsaw Clutch Drum (replaces 530-047061, 530-069315) 530047061
#16

Fan housing/chain-14"/flywheel diagram

Chainsaw clutch drum (replaces 530-047061, 530-069315)

Part #530047061

BEST SELLER
This item is not returnable
$21.67 |
22% OFF Phone Price : $27.67
In Stock
Husqvarna Chainsaw Bar Adjuster Screw (replaces 530-069611) 530069611
#41

Fan housing/chain-14"/flywheel diagram

Husqvarna chainsaw bar adjuster screw (replaces 530-069611)

Part #530069611

This item is not returnable
$11.56 |
15% OFF Phone Price : $13.56
In Stock
Tractor Accessories Lawn & Garden Equipment Engine Carburetor Rebuild Kit (replaces 530.035399, 530035298, 530-035298, 530035399, 530-069629, 5300698-26) 530069826
#3

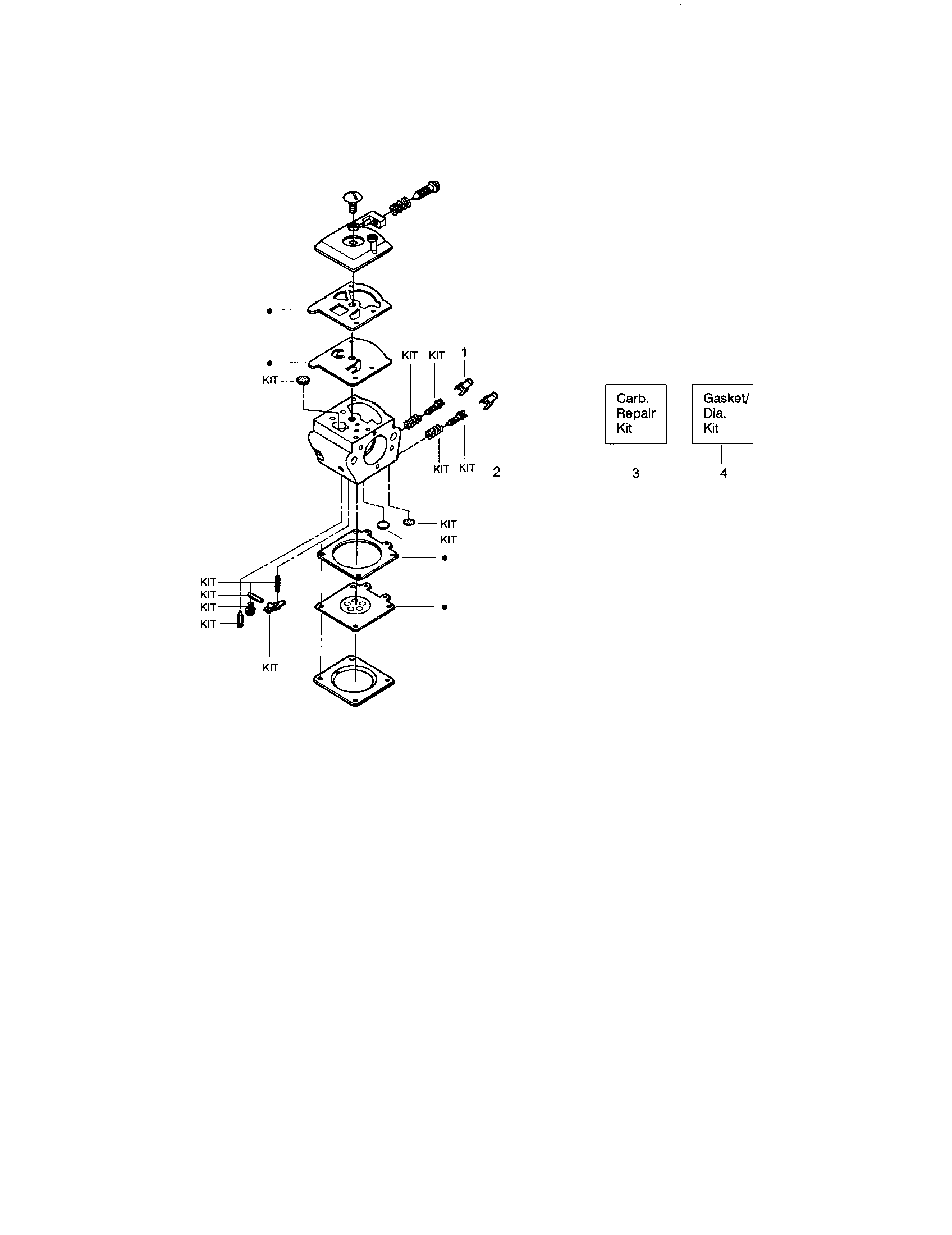

Carburetor - wt600-530071410 diagram

Tractor accessories lawn & garden equipment engine carburetor rebuild kit (replaces 530.035399, 530035298, 530-035298, 530035399, 530-069629, 5300698-26)

Part #530069826

$33.22 |
15% OFF Phone Price : $39.22
In Stock
