Model # S5677 Official Hoover central vacuum

Here are the diagrams and repair parts for Official Hoover S5677 central vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |

Gasket 38784069
#16

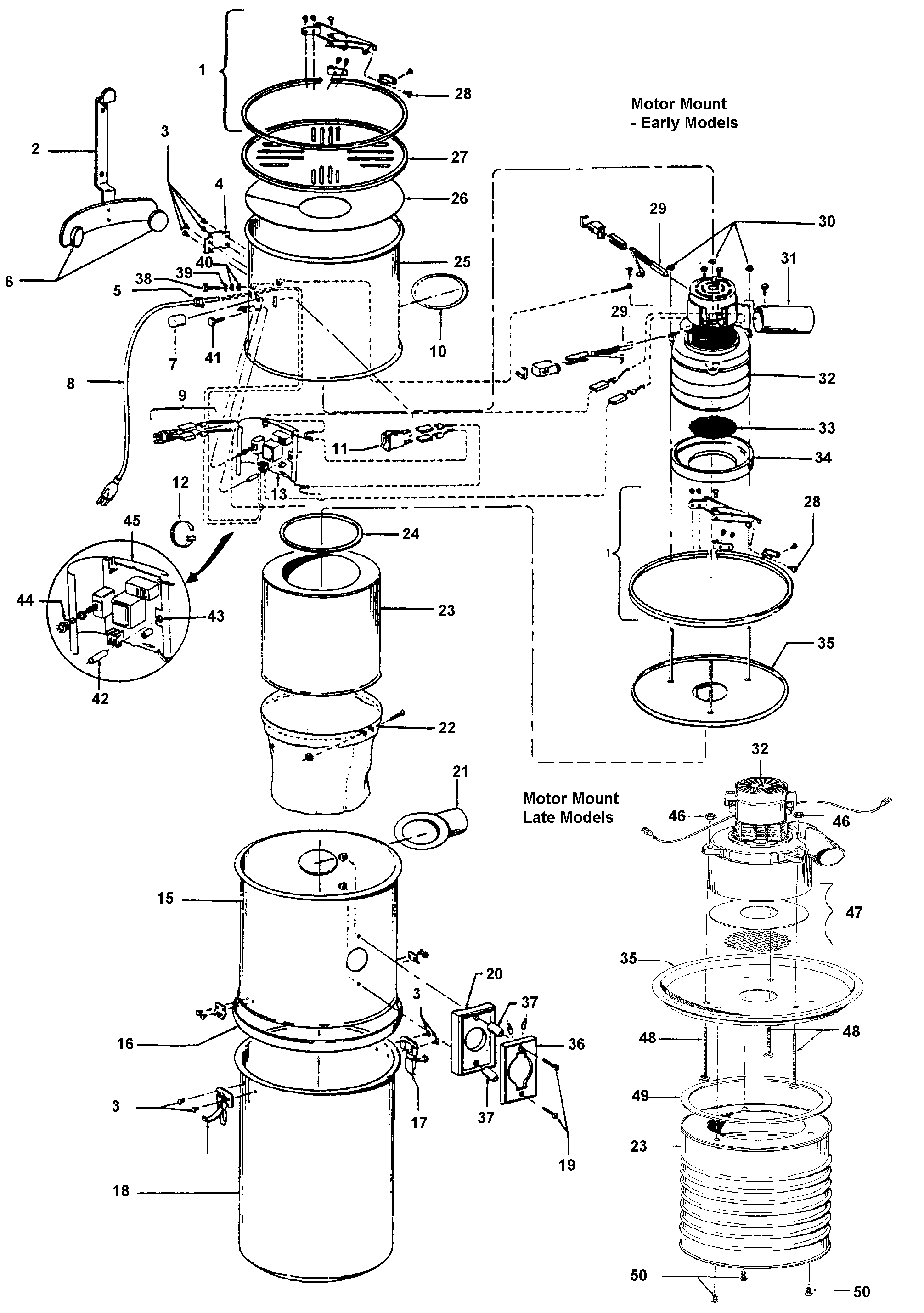

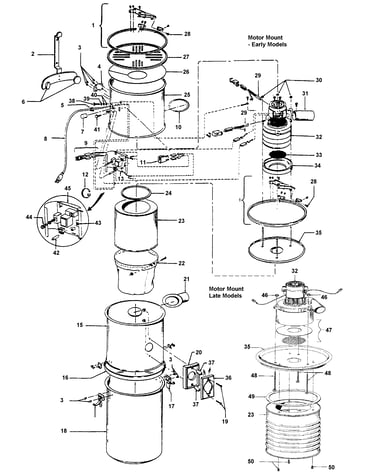

Mainhousing, motor assembly diagram

Gasket

Part #38784069

The manufacturer no longer makes this part, and there's no substitute part

45 Spigot 10096002
#14

Fittings diagram

45 spigot

Part #10096002

The manufacturer no longer makes this part, and there's no substitute part

Elboow 90 33215002
#2

Fittings diagram

Elboow 90

Part #33215002

The manufacturer no longer makes this part, and there's no substitute part

Nut 21854103
#46

Mainhousing, motor assembly diagram

Nut

Part #21854103

The manufacturer no longer makes this part, and there's no substitute part

Pvc Pipe 31748028
#33B

Fittings diagram

Pvc pipe

Part #31748028

The manufacturer no longer makes this part, and there's no substitute part

Fit Strap 36171019
#22

Fittings diagram

Fit strap

Part #36171019

The manufacturer no longer makes this part, and there's no substitute part

Bracket 41947011
#2

Mainhousing, motor assembly diagram

Bracket

Part #41947011

The manufacturer no longer makes this part, and there's no substitute part

Motor 27212047
#32

Mainhousing, motor assembly diagram

Motor

Part #27212047

The manufacturer no longer makes this part, and there's no substitute part

Screw 21416011
#33A

Fittings diagram

Screw

Part #21416011

The manufacturer no longer makes this part, and there's no substitute part

Wire Tie 27479307
#12

Mainhousing, motor assembly diagram

Wire tie

Part #27479307

The manufacturer no longer makes this part, and there's no substitute part
