Model # 640YBDS Official Reliance water heater

Here are the diagrams and repair parts for Official Reliance 640YBDS water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 14 parts |

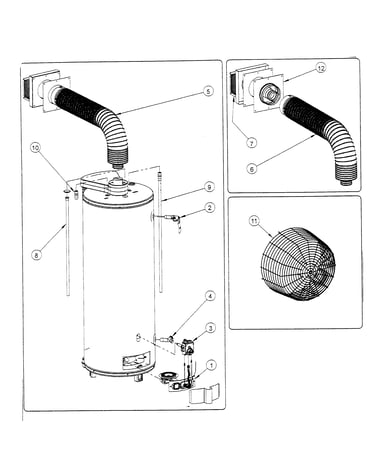

Water heater diagram

Vent assembly

Part #9006538005

$452.49

In Stock

Qty

#8A

Water heater diagram

Anode mg

Part #9003938005

$52.49

In Stock

Qty

Water heater diagram

Drain valve

Part #9003906015

Replaced by #9009086015

$19.49

In Stock

Qty

Water Heater Anode Rod (replaces 9003920) 9006299005

#8B

Water heater diagram

Water heater anode rod (replaces 9003920)

Part #9006299005

Replaced by #100111073

$44.44

In Stock

Qty

Water heater diagram

Water heater magnesium anode rod

Part #9001829005

Replaced by #100108660

$60.00

In Stock

Qty

Water heater diagram

Relief valve

Part #9001583005

The manufacturer no longer makes this part, and there's no substitute part

Water heater diagram

Vent pipe

Part #9006539005

The manufacturer no longer makes this part, and there's no substitute part

Water heater diagram

Water heater manifold door and burner assembly

Part #9006524005

The manufacturer no longer makes this part, and there's no substitute part

#12

Water heater diagram

Trim plate

Part #9006701005

The manufacturer no longer makes this part, and there's no substitute part

Water heater diagram

Dip tube

Part #9006532005

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your water heaters

Choose a symptom to see related water heater repairs.

View all

Why isn't my water heater heating my water?

Main causes: lack of power, no gas supply, thermostat limit switch tripped, bad element, bad thermostat, gas valve failu…

Why isn't my water heater making the water hot enough?

Main causes: thermostats need adjustment, water heater capacity too low, bad heating element, thermostat failure, excess…

Why is there water in my water heater's drain pan?

Main causes: loose water pipe fittings, leaky drain valve, bad temperature-pressure relief valve, leaky heating element,…

Why does my hot water smell like rotten eggs?

Main causes: water supply needs chlorine treatment, anode rod too reactive…

Why isn't my water heater making enough hot water?

Main causes: broken heating element, thermostat failure, excessive tank sediment, tank size too small, burner valve asse…

Why is my water heater making the water too hot?

Main causes: thermostat temperature set too high, thermostats need adjustment, faulty thermostat, shorted heating elemen…

Why is my water heater's pressure relief valve dripping water?

Main causes: faulty pressure relief valve, water is overheating…
