Model # 410AT Official Eureka mini whirlwind vacuum

Here are the diagrams and repair parts for Official Eureka 410AT mini whirlwind vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

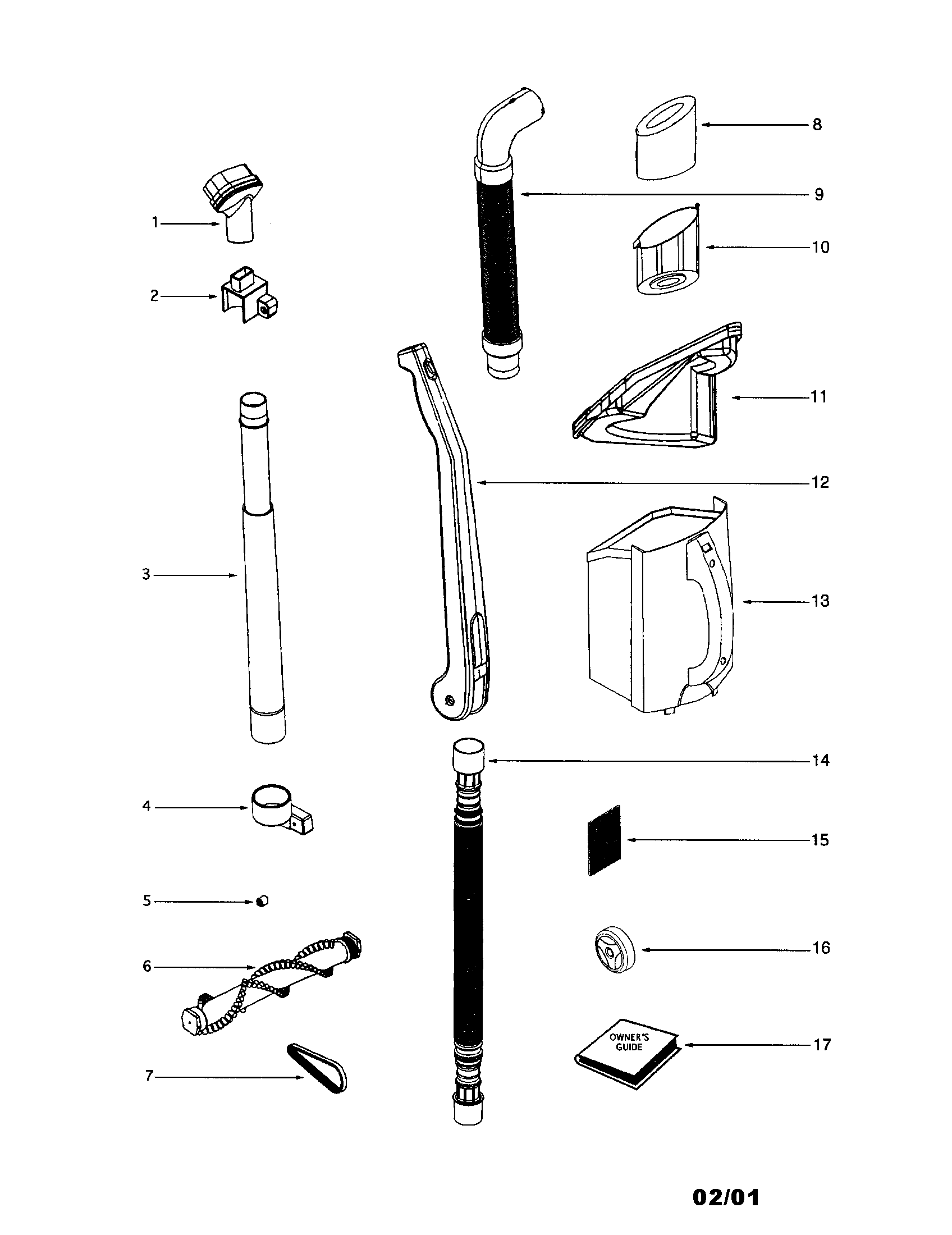

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |

Eureka Cage 61539
#10

Vacuum diagram

Eureka cage

Part #61539

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose 61309
#9

Vacuum diagram

Vacuum hose

Part #61309

The manufacturer no longer makes this part, and there's no substitute part

Hose 61307
#14

Vacuum diagram

Hose

Part #61307

The manufacturer no longer makes this part, and there's no substitute part

Wheel 61164
#5

Vacuum diagram

Wheel

Part #61164

The manufacturer no longer makes this part, and there's no substitute part

Wand 61127
#3

Vacuum diagram

Wand

Part #61127

The manufacturer no longer makes this part, and there's no substitute part

Rear Wheel 61214
#16

Vacuum diagram

Rear wheel

Part #61214

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 61126
#1

Vacuum diagram

Vacuum dust brush

Part #61126

The manufacturer no longer makes this part, and there's no substitute part

Support 61426
#4

Vacuum diagram

Support

Part #61426

The manufacturer no longer makes this part, and there's no substitute part

Filter, 1-pack 61312
#8

Vacuum diagram

Filter, 1-pack

Part #61312

The manufacturer no longer makes this part, and there's no substitute part

Lid 61538
#11

Vacuum diagram

Lid

Part #61538

The manufacturer no longer makes this part, and there's no substitute part
