Kenmore
Canister Vacuum

Model # 72123150000 Official Kenmore vacuum

Here are the diagrams and repair parts for Official Kenmore 72123150000 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

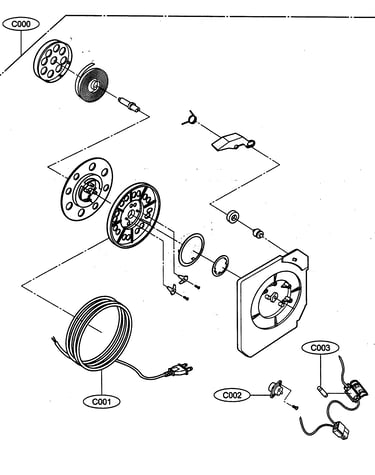

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Holder 4930FI2231F
#G001

Accessorys holder/hose assy diagram

Holder

Part #4930FI2231F

This item is not returnable
$2.16
In Stock
Vacuum Screw 1TPL0302818
#D007

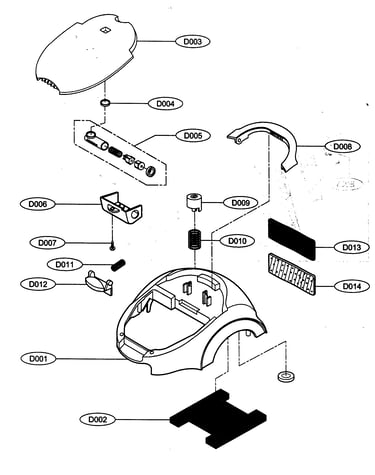

Body cover assy diagram

Vacuum screw

Part #1TPL0302818

This item is not returnable
$2.16
In Stock
Us Pressed Steel Screw 1TPL0402818
#B010

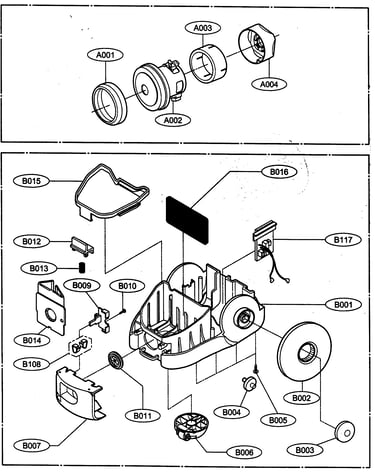

Motor assy/body base diagram

Us pressed steel screw

Part #1TPL0402818

This item is not returnable
$2.27
In Stock
Vacuum Screw 1TPL0302416
#E004

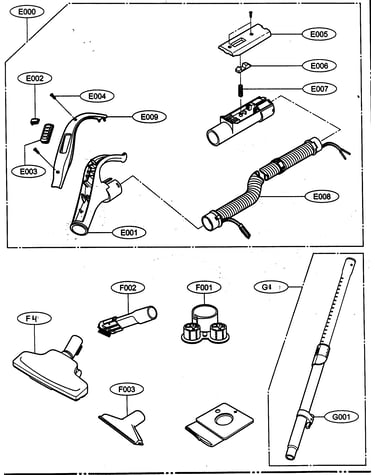

Accessorys holder/hose assy diagram

Vacuum screw

Part #1TPL0302416

Replaced by #1TPL0302418

?
Manufacturer substitution
This part replaces 1TPL0302416. Substitute parts can look different from the original.
$8.29
In Stock
Vacuum Wheel Axle 4370FI3670A
#H017

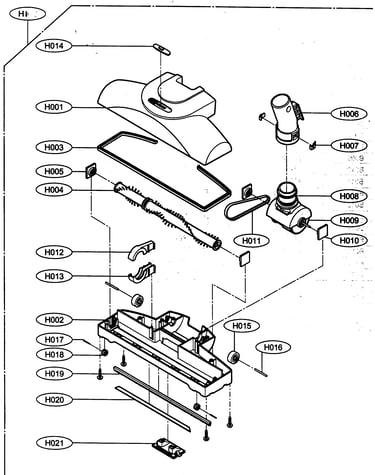

Power mate assy diagram

Vacuum wheel axle

Part #4370FI3670A

The manufacturer no longer makes this part, and there's no substitute part

Latch 4026FI3234A
#D012

Body cover assy diagram

Latch

Part #4026FI3234A

The manufacturer no longer makes this part, and there's no substitute part

Belt 4400FI3349A
#H011

Power mate assy diagram

Belt

Part #4400FI3349A

The manufacturer no longer makes this part, and there's no substitute part

Button 5020FI3233N
#D009

Body cover assy diagram

Button

Part #5020FI3233N

The manufacturer no longer makes this part, and there's no substitute part

Spring 4I23017A
#B013

Motor assy/body base diagram

Spring

Part #4I23017A

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Nozzle 5249FI1414B
#H1A

Power mate assy diagram

Vacuum nozzle

Part #5249FI1414B

The manufacturer no longer makes this part, and there's no substitute part
