Model # WLEX29190 Official Weslo cycle

Here are the diagrams and repair parts for Official Weslo WLEX29190 cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |

Exercise Cycle Pedal, Left 134368
#39

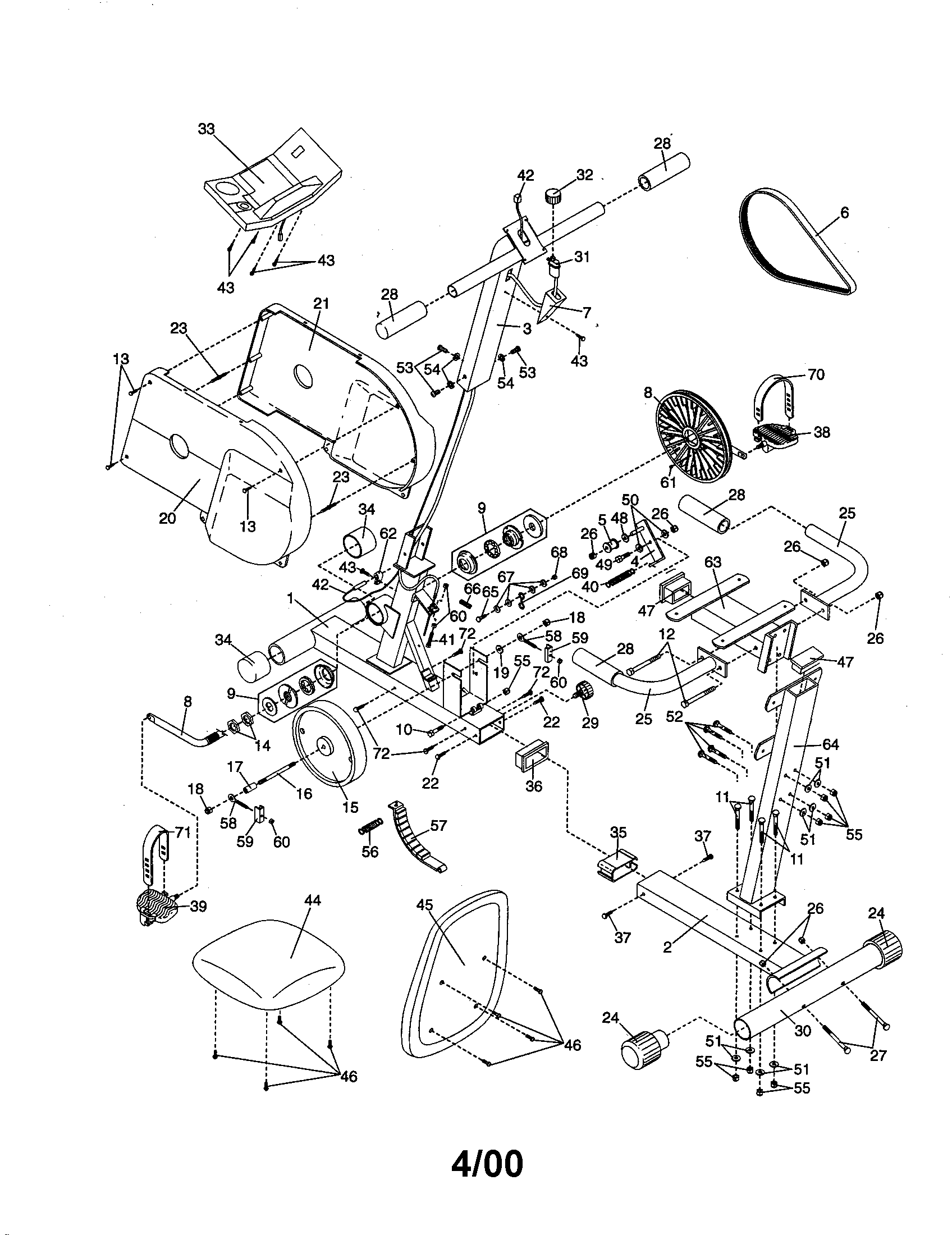

Cycle diagram

Exercise cycle pedal, left

Part #134368

Replaced by #374670

?
Manufacturer substitution
This part replaces 134368. Substitute parts can look different from the original.
This item is not returnable
$17.09
10% OFF Phone Price : $19.09
In Stock
Nut,hex Nyl 121050
#26

Cycle diagram

Nut,hex nyl

Part #121050

Replaced by #148710

?
Manufacturer substitution
This part replaces 121050. Substitute parts can look different from the original.
This item is not returnable
In Stock
Exercise Equipment Flat Washer 014073
#51

Cycle diagram

Exercise equipment flat washer

Part #014073

This item is not returnable
In Stock
Weslo Hwkit,parts& 164205

#NI

All parts diagram

Weslo hwkit,parts&

Part #164205

In Stock
Nut,hex,jam, 100694
#18

Cycle diagram

Nut,hex,jam,

Part #100694

This item is not returnable
In Stock
Exercise Equipment Carriage Bolt 013436
#52

Cycle diagram

Exercise equipment carriage bolt

Part #013436

In Stock
Hwkit,cbl Bo 163823
#68

Cycle diagram

Hwkit,cbl bo

Part #163823

This item is not returnable
In Stock
Lifestyler Exercise Equipment Screw 135574
#41

Cycle diagram

Lifestyler exercise equipment screw

Part #135574

This item is not returnable
In Stock
Image Exercise Equipment Screw 152127
#10

Cycle diagram

Image exercise equipment screw

Part #152127

In Stock
Weslo Om,wlex29190 161093

#NI

All parts diagram

Weslo om,wlex29190

Part #161093

In Stock
