Frigidaire
Room Air Conditioner

Model # FFTA0833U10 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFTA0833U10 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Air Filter 5304516531
#12

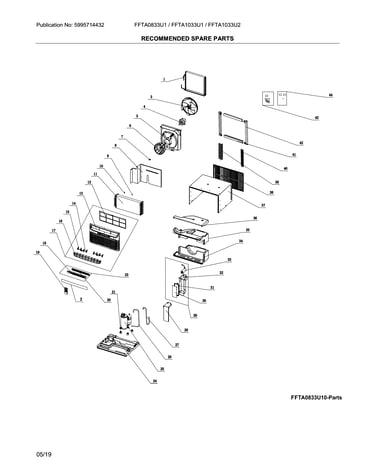

Recommended spare parts diagram

Air filter

Part #5304516531

Replaced by #5304525641

?
Manufacturer substitution
This part replaces 5304516531. Substitute parts can look different from the original.
This item is not returnable
In Stock
Electrical Box 5304516588
#32

Recommended spare parts diagram

Electrical box

Part #5304516588

In Stock
Clip,temp Sensor 5304516529
#9

Recommended spare parts diagram

Clip,temp sensor

Part #5304516529

In Stock
Discharge Tube 5304516593
#26

Recommended spare parts diagram

Discharge tube

Part #5304516593

In Stock
Gasket,compressor 5304516558
#21

Recommended spare parts diagram

Gasket,compressor

Part #5304516558

$28.85
17% OFF Phone Price : $34.85
In Stock
Box Assembly,electrical ,w/board-capactr 5304516585
#29

Recommended spare parts diagram

Box assembly,electrical ,w/board-capactr

Part #5304516585

In Stock
Condenser Fan Shroud 5304516525
#5

Recommended spare parts diagram

Condenser fan shroud

Part #5304516525

In Stock
Capacitor,cbb65 5304516549
#33

Recommended spare parts diagram

Capacitor,cbb65

Part #5304516549

In Stock
Evaporator,assembly 5304516530
#11

Recommended spare parts diagram

Evaporator,assembly

Part #5304516530

In Stock
Box Assembly,electrical ,w/board-capactr 5304516597
#29

Recommended spare parts diagram

Box assembly,electrical ,w/board-capactr

Part #5304516597

In Stock
