Jenn-Air
Wine & Beverage Cooler

Model # JUB24FLERS00 Official Jenn-Air beverage center

Here are the diagrams and repair parts for Official Jenn-Air JUB24FLERS00 beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

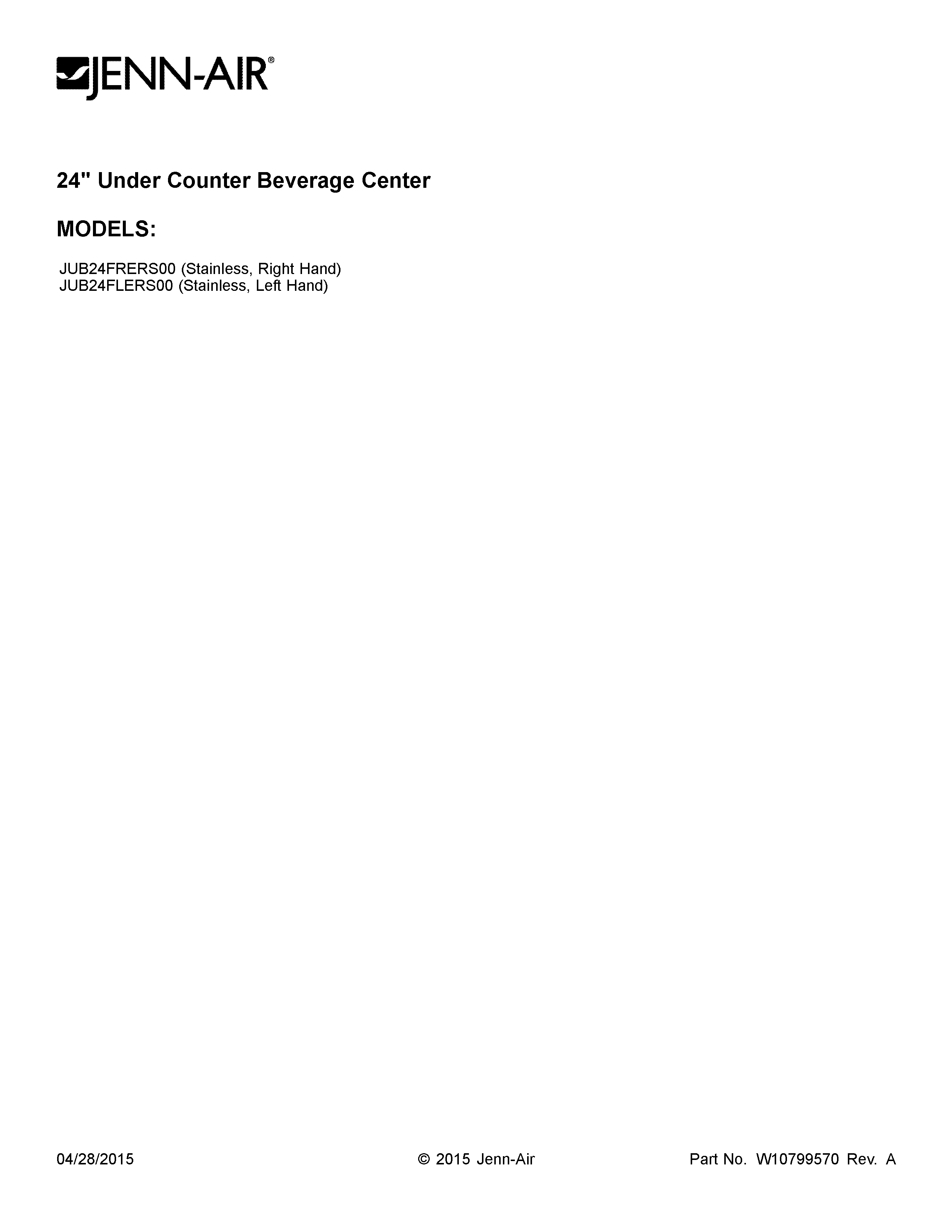

Owner’s manual

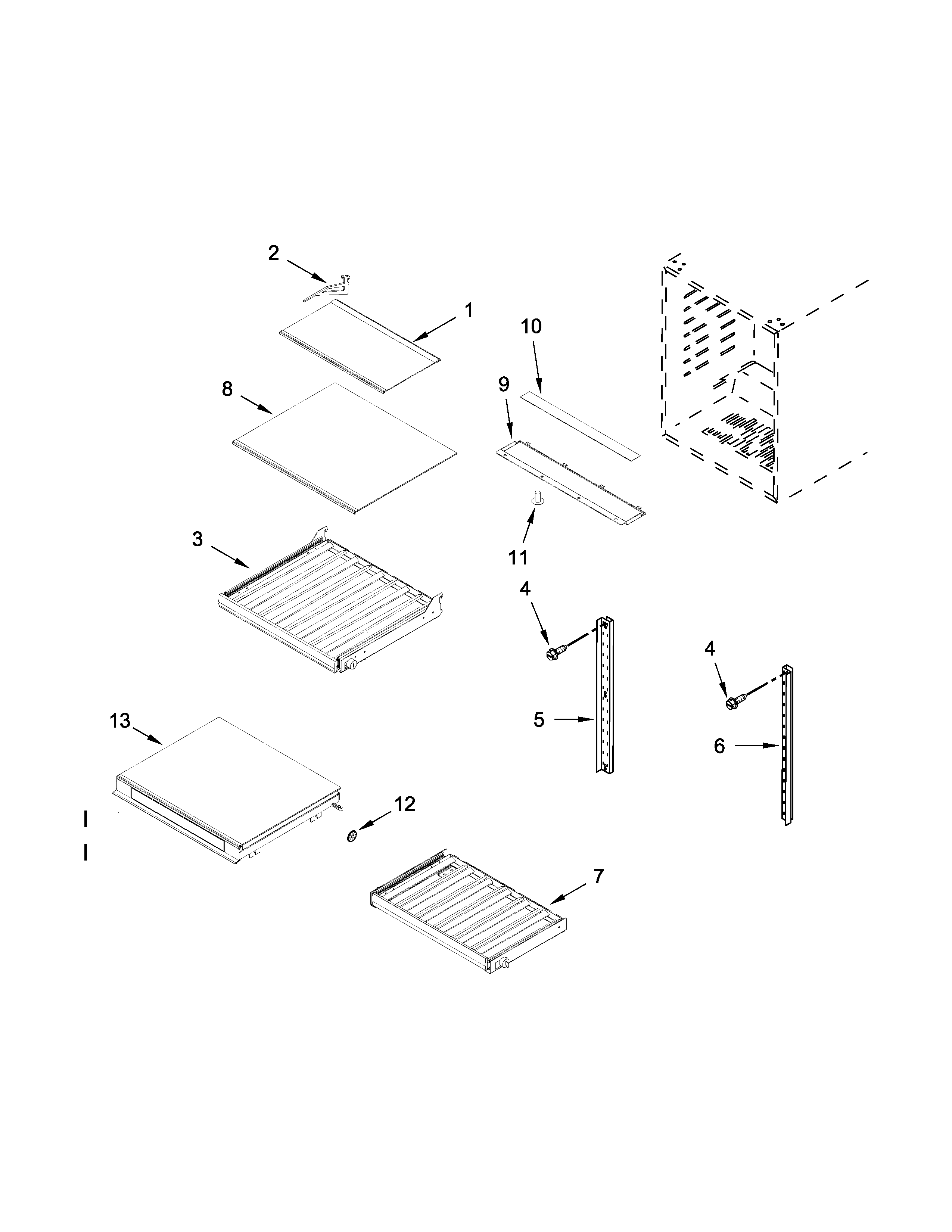

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Evaporator Motor W10204942
#3

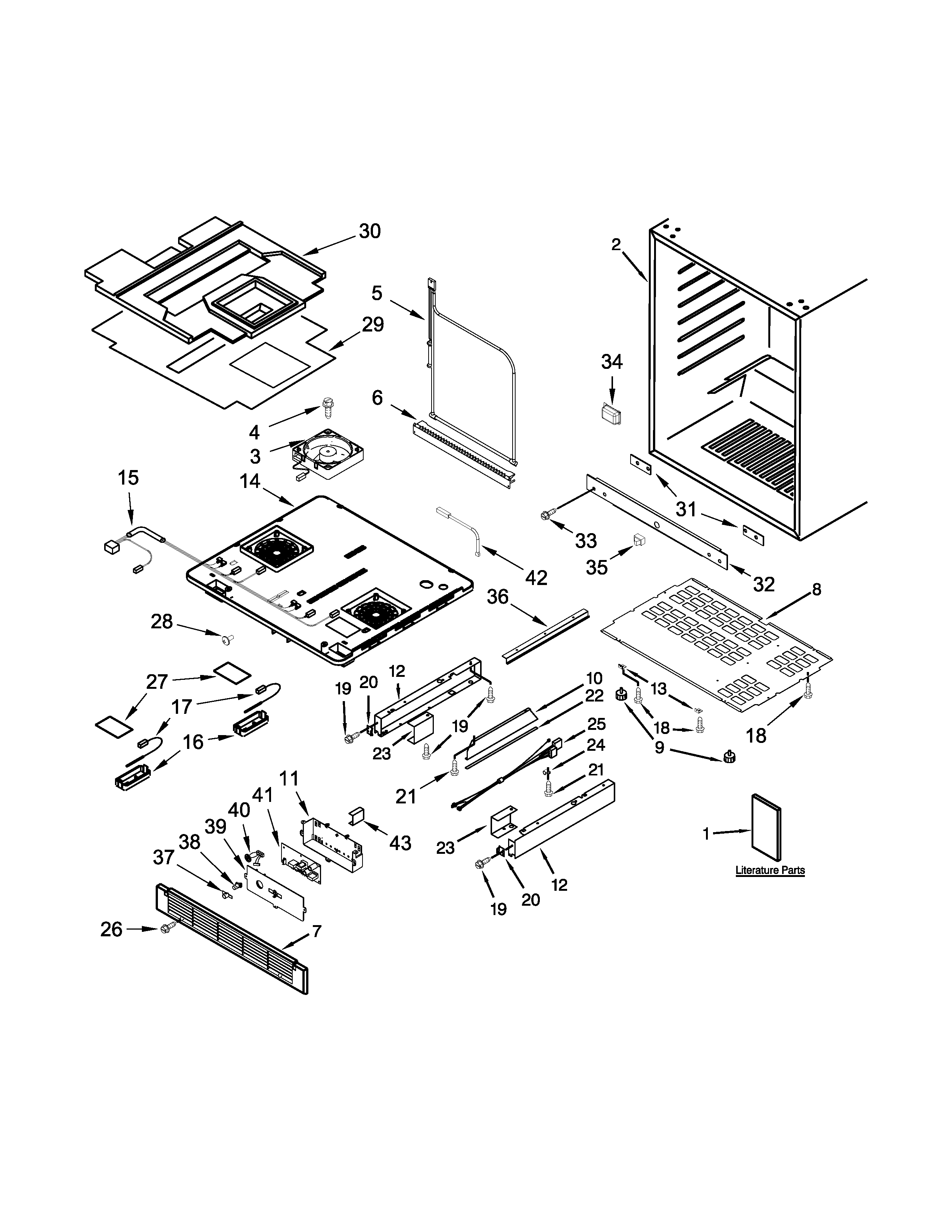

Cabinet parts diagram

Evaporator motor

Part #W10204942

Replaced by #W10854409

?
Manufacturer substitution
This part replaces W10204942. Substitute parts can look different from the original.
$147.98 |
8% OFF Phone Price : $159.98
In Stock
Drier Tube W10163273
#21

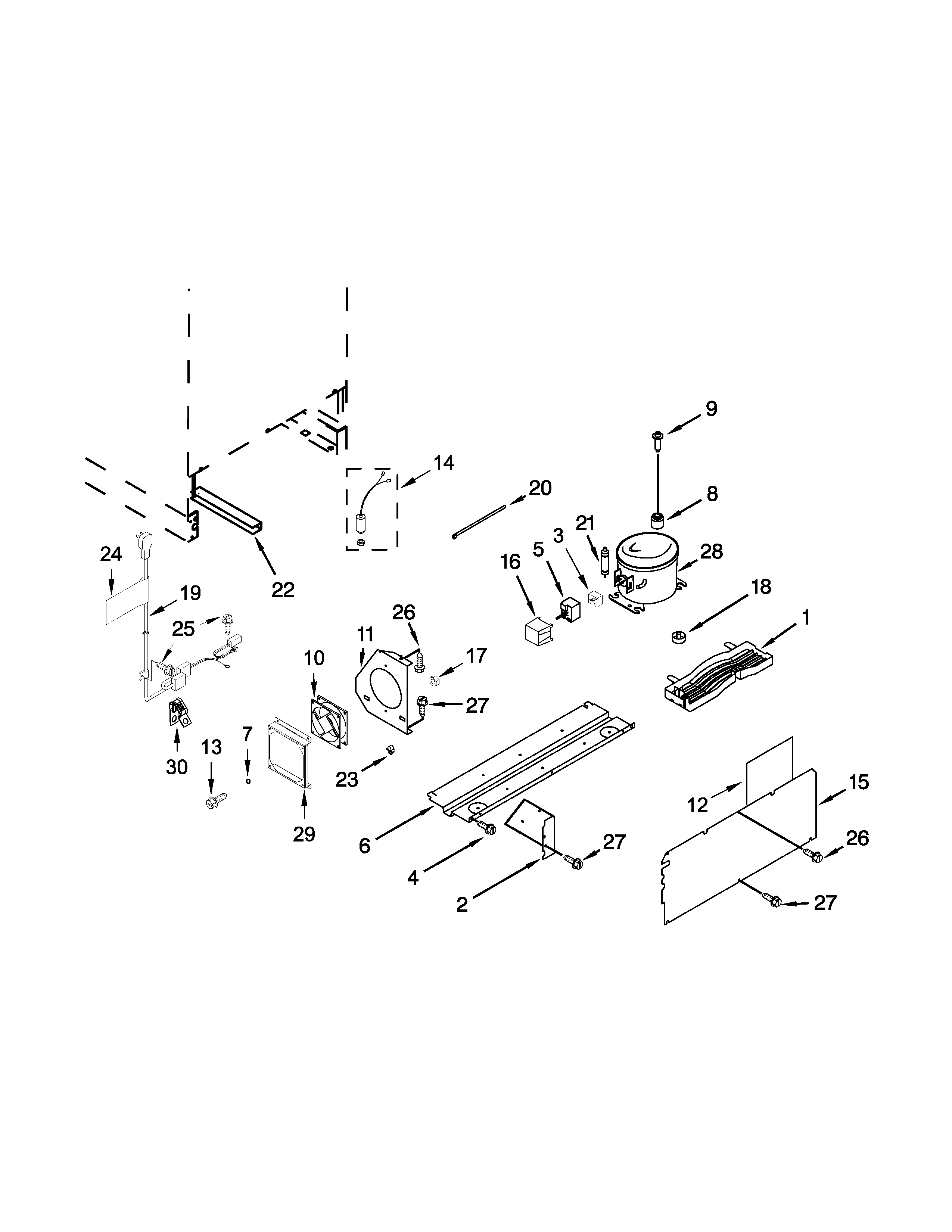

Unit parts diagram

Drier tube

Part #W10163273

$33.58
In Stock
Wine Cooler Toe Grille W10780351
#7

Cabinet parts diagram

Wine cooler toe grille

Part #W10780351

$48.39 |
11% OFF Phone Price : $54.39
In Stock
Main Pcb W10780352
#41

Cabinet parts diagram

Main pcb

Part #W10780352

Replaced by #W10807595

?
Manufacturer substitution
This part replaces W10780352. Substitute parts can look different from the original.
$314.32 |
$12.00 OFF Phone Price : $326.32
In Stock
Overload Release W10780361
#3

Unit parts diagram

Overload release

Part #W10780361

$72.19 |
8% OFF Phone Price : $78.19
In Stock
Refrigeration Appliances Cabinet Base Seal 4344823
#22

Cabinet parts diagram

Refrigeration appliances cabinet base seal

Part #4344823

$38.33
In Stock
Refrigerator Door Handle W10622019
#11

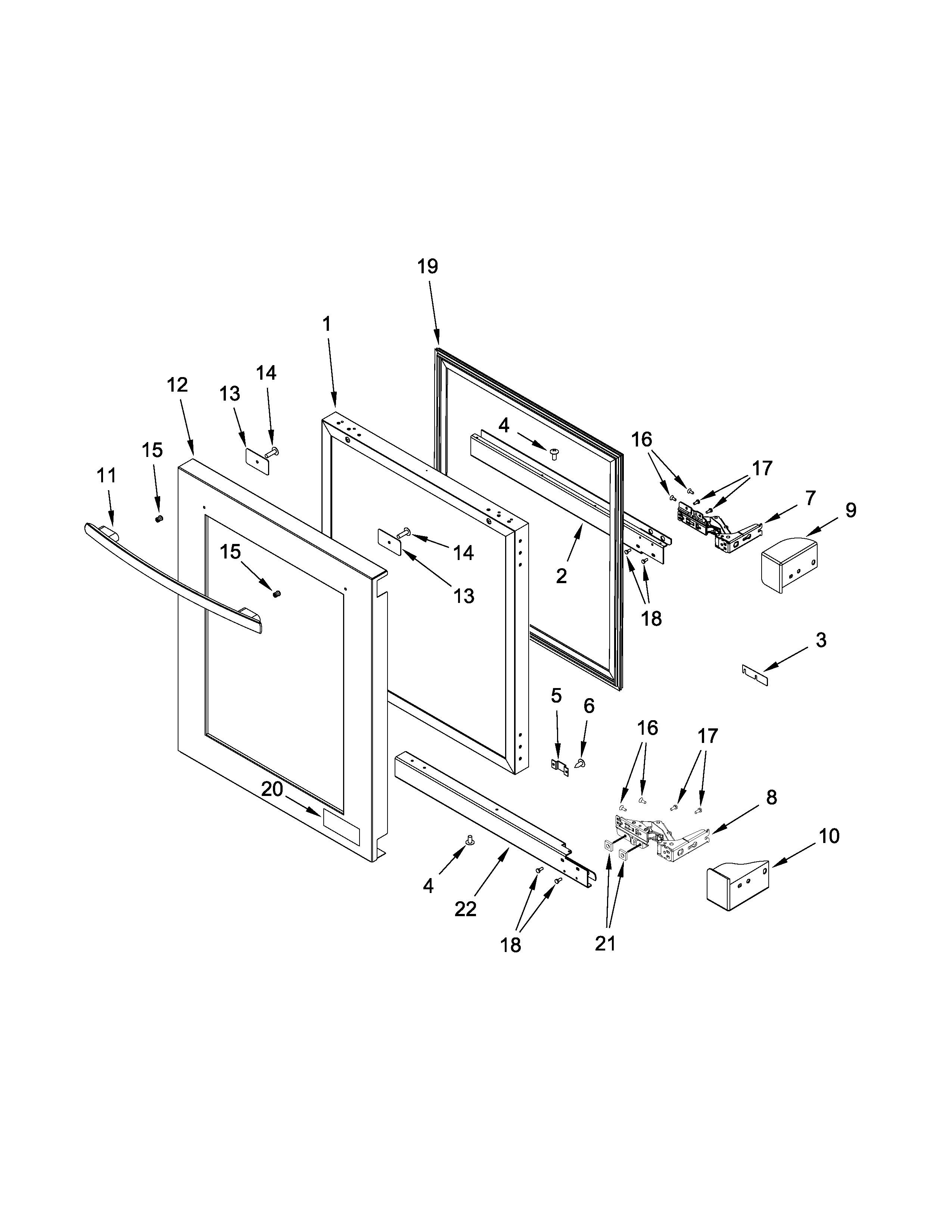

Door parts diagram

Refrigerator door handle

Part #W10622019

$276.56
In Stock
Hinge Plate W10623027
#2A

Door parts diagram

Hinge plate

Part #W10623027

$90.87
In Stock
Switch W10721454
#35

Cabinet parts diagram

Switch

Part #W10721454

$20.99
In Stock
Wire Tie 4344829
#20

Unit parts diagram

Wire tie

Part #4344829

$9.83
In Stock
