Countertop Microwave

Model # DMO560 Official Modern Maid microwave door assembly

Here are the diagrams and repair parts for Official Modern Maid DMO560 microwave door assembly, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Screw, Hinge Mounting 41807
#1

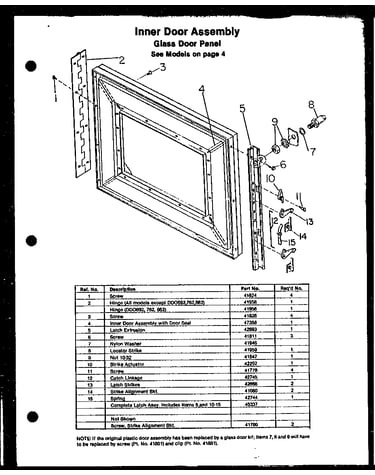

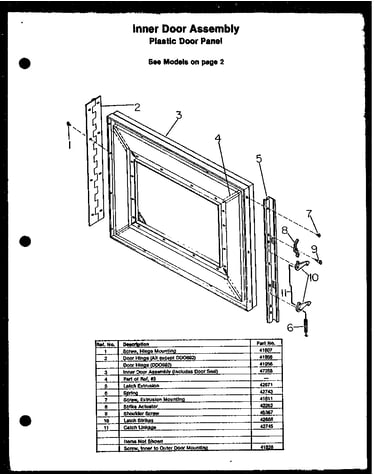

Inner door assembly (dmo360) (dmo560) (dmo660) (dmo760) (ddo692) (qmd800) (qmd810) (qmc811) diagram

Screw, hinge mounting

Part #41807

The manufacturer no longer makes this part, and there's no substitute part

Side Trim 42692
#1A

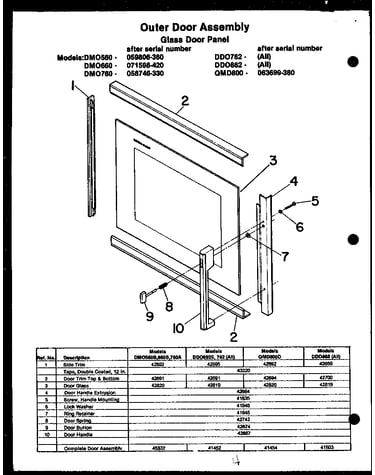

(dmo560b) (dmo660b) (dmo760a) (ddo692e) (ddo762) (qmd800d) (ddo862) diagram

Side trim

Part #42692

The manufacturer no longer makes this part, and there's no substitute part

Complete Latch Assy. Includes Items 5, And 10-15 45337

#NI

All parts diagram

Complete latch assy. includes items 5, and 10-15

Part #45337

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 41948
#6

(dmo560b) (dmo660b) (dmo760a) (ddo692e) (ddo762) (qmd800d) (ddo862) diagram

Lock washer

Part #41948

The manufacturer no longer makes this part, and there's no substitute part

Side Trim 42695
#1B

(dmo560b) (dmo660b) (dmo760a) (ddo692e) (ddo762) (qmd800d) (ddo862) diagram

Side trim

Part #42695

The manufacturer no longer makes this part, and there's no substitute part

Door Top Trim 42688
#4B

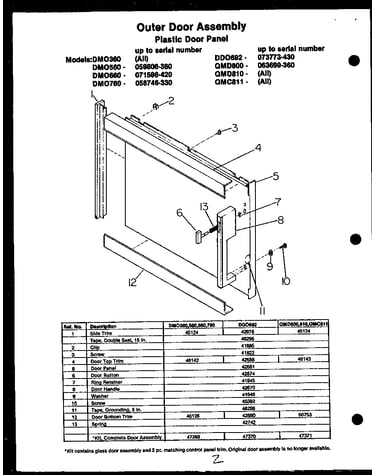

(dmo360) (dmo560) (dmo660) (dmo760) (ddo692) (qmd800) (qmd810) (qmc811) diagram

Door top trim

Part #42688

The manufacturer no longer makes this part, and there's no substitute part

Door Handle 42687
#10

(dmo560b) (dmo660b) (dmo760a) (ddo692e) (ddo762) (qmd800d) (ddo862) diagram

Door handle

Part #42687

The manufacturer no longer makes this part, and there's no substitute part

Side Trim 46124
#1A

(dmo360) (dmo560) (dmo660) (dmo760) (ddo692) (qmd800) (qmd810) (qmc811) diagram

Side trim

Part #46124

The manufacturer no longer makes this part, and there's no substitute part

Kit, Complete Door Assembly 47371

#NI

All parts diagram

Kit, complete door assembly

Part #47371

The manufacturer no longer makes this part, and there's no substitute part

Door Trim Top & Bottom 42691
#2A

(dmo560b) (dmo660b) (dmo760a) (ddo692e) (ddo762) (qmd800d) (ddo862) diagram

Door trim top & bottom

Part #42691

The manufacturer no longer makes this part, and there's no substitute part
