GE
Countertop Microwave

Model # JES1656BH001 Official GE microwave

Here are the diagrams and repair parts for Official GE JES1656BH001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

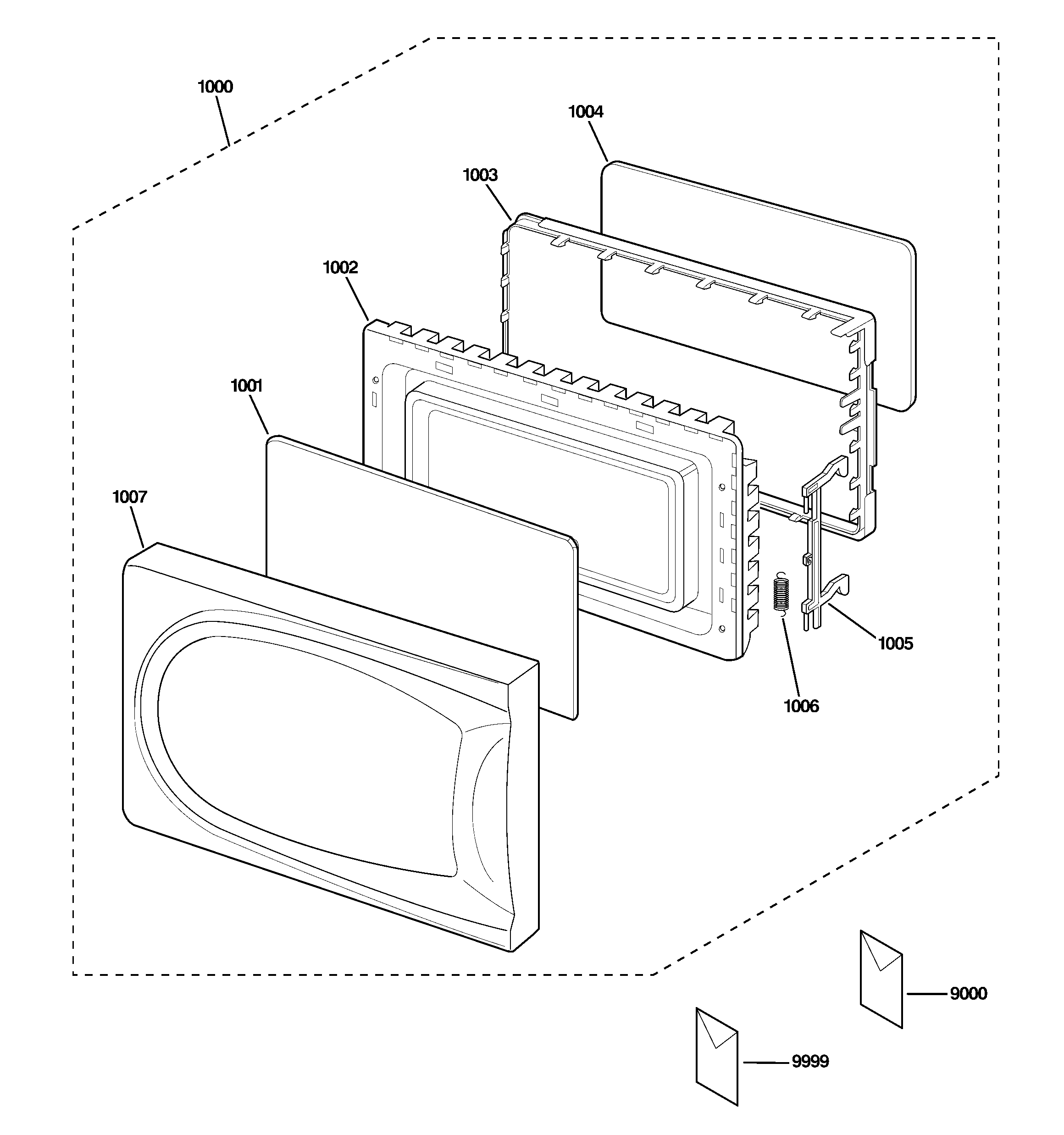

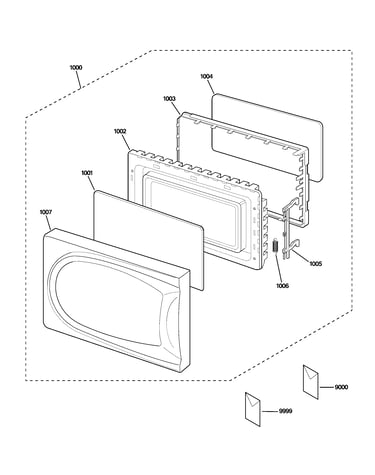

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Microwave Fuse WB27X10388
#4010

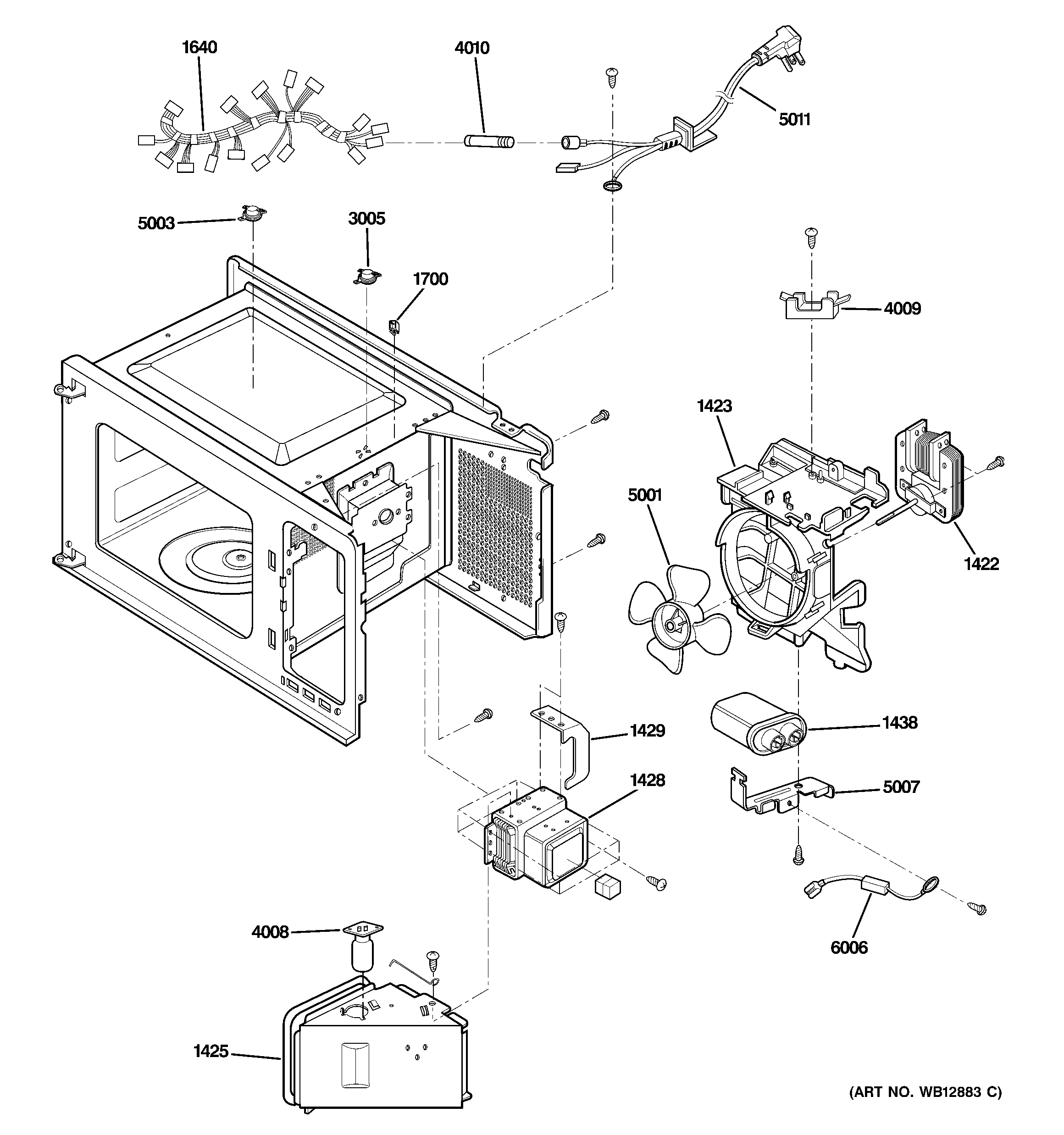

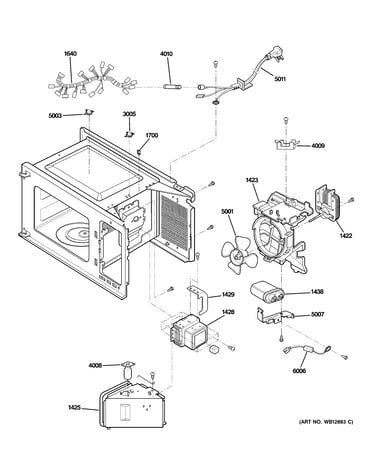

Interior parts (1) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave Primary Interlock Switch (replaces Wb24x10029, Wb24x10113) WB24X10047
#1446

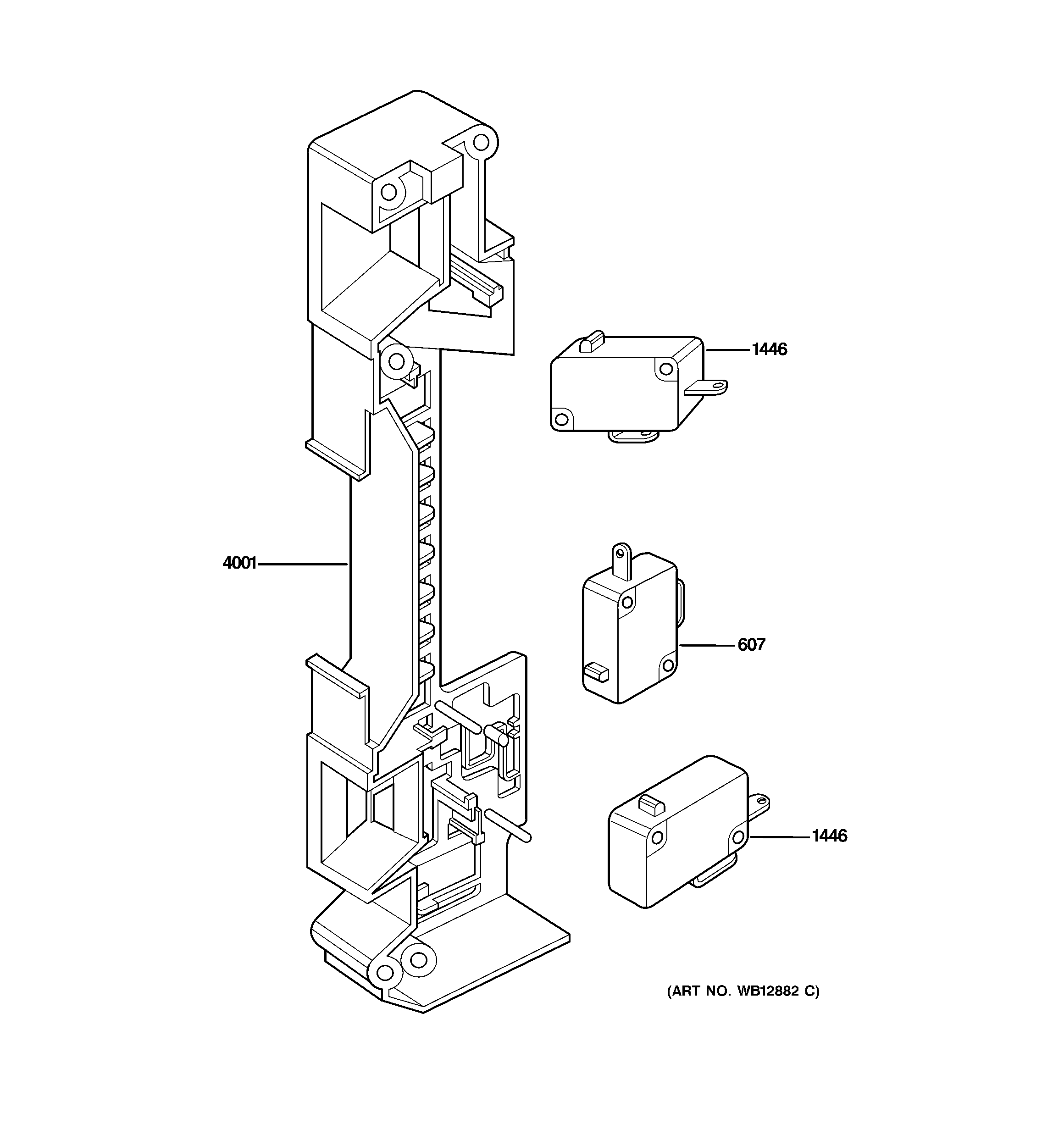

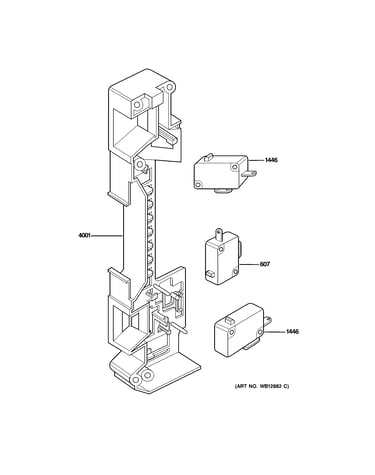

Latch board parts diagram

Microwave primary interlock switch (replaces wb24x10029, wb24x10113)

Part #WB24X10047

BEST SELLER
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Drive Capacitor WB27X10747
#1438

Interior parts (1) diagram

Drive capacitor

Part #WB27X10747

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10747. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
13% OFF Phone Price : $47.91
In Stock
Latch Board WB06X10546
#4001

Latch board parts diagram

Latch board

Part #WB06X10546

Replaced by #WB02X21662

?
Manufacturer substitution
This part replaces WB06X10546. Substitute parts can look different from the original.
$17.49 |
10% OFF Phone Price : $19.49
In Stock
Microwave Waveguide Cover WB06X10305
#3002

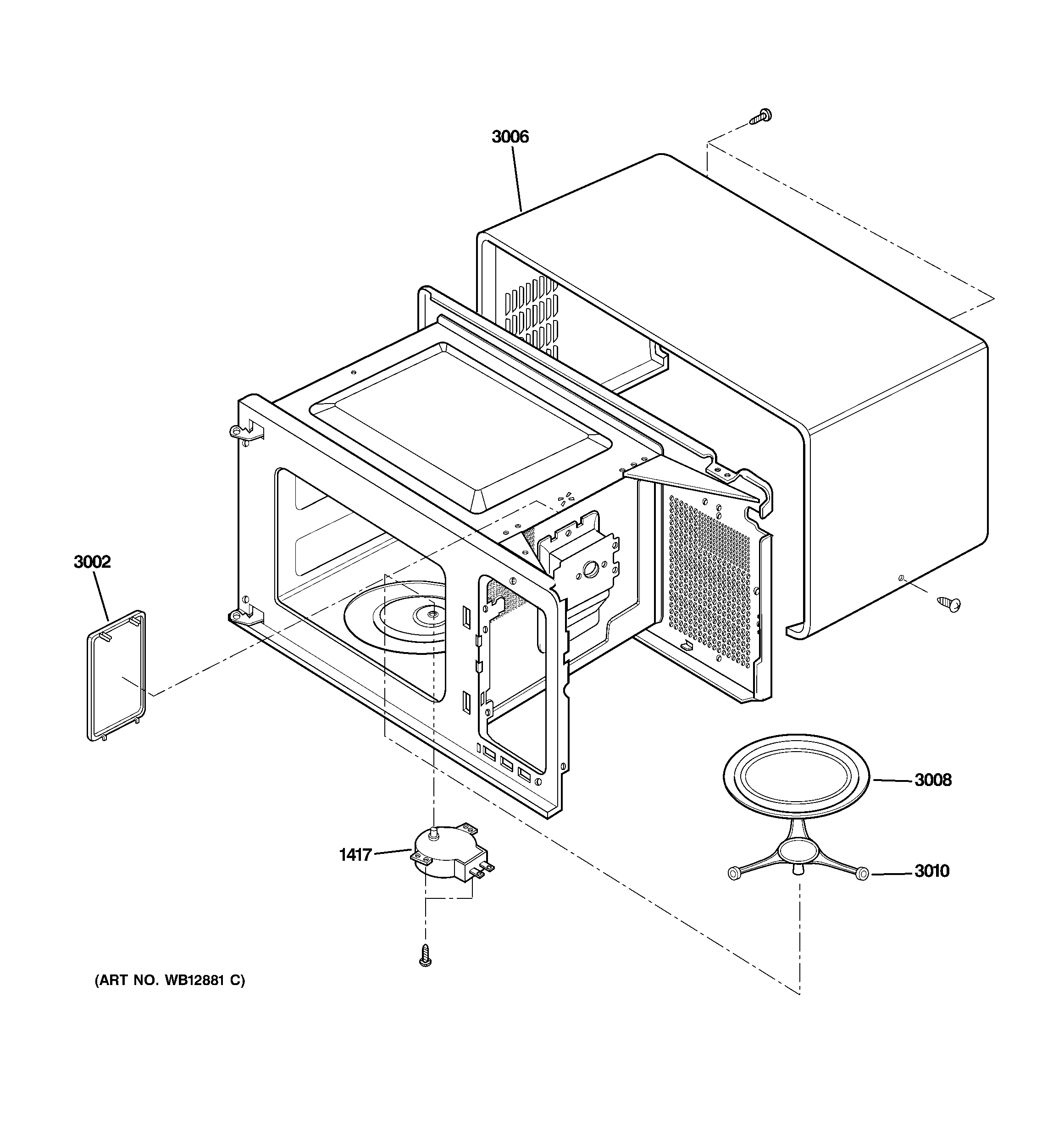

Oven cavity diagram

Microwave waveguide cover

Part #WB06X10305

Replaced by #WB06X10764

?
Manufacturer substitution
This part replaces WB06X10305. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Microwave Turntable Motor WB26X10143
#1417

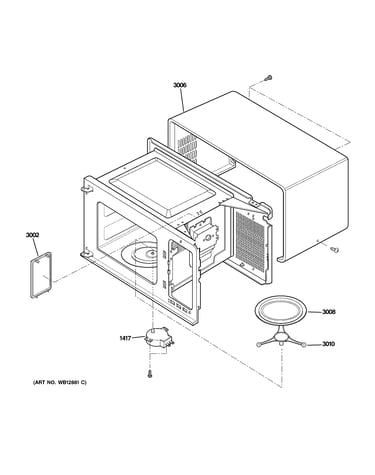

Oven cavity diagram

Microwave turntable motor

Part #WB26X10143

$26.59 |
18% OFF Phone Price : $32.59
In Stock
Foot WB06X10307
#6004

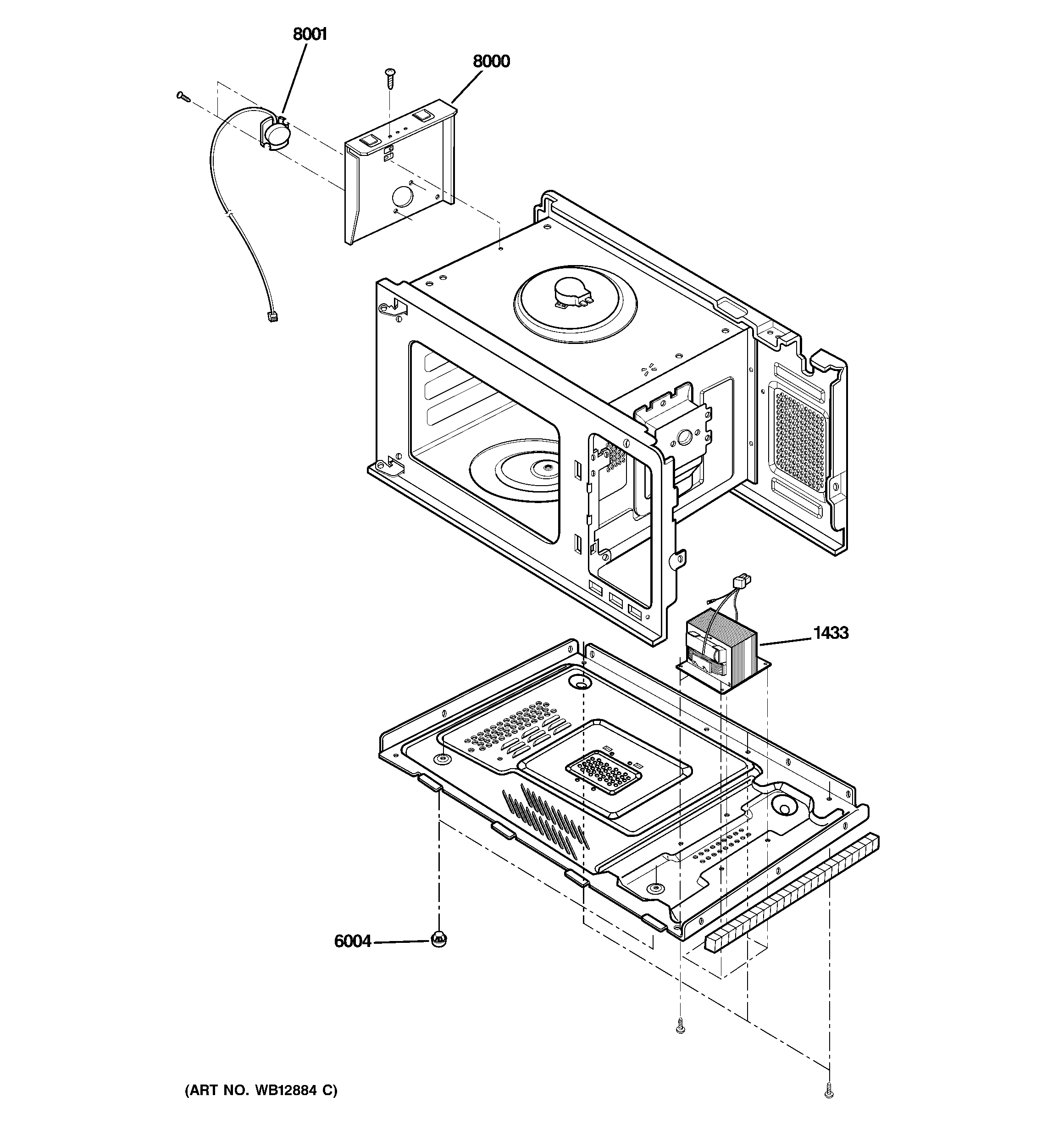

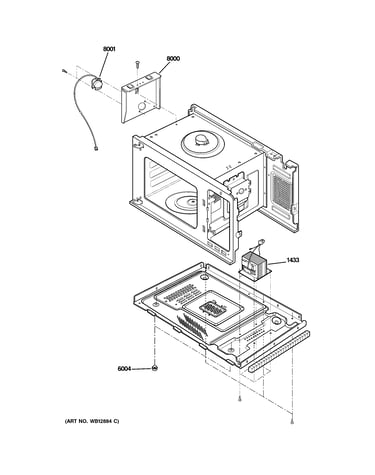

Interior parts (2) diagram

Foot

Part #WB06X10307

$7.71
In Stock
Fan WB38X10078
#5001

Interior parts (1) diagram

Fan

Part #WB38X10078

$11.79 |
15% OFF Phone Price : $13.79
In Stock
Button Spring WB09X10006
#2002

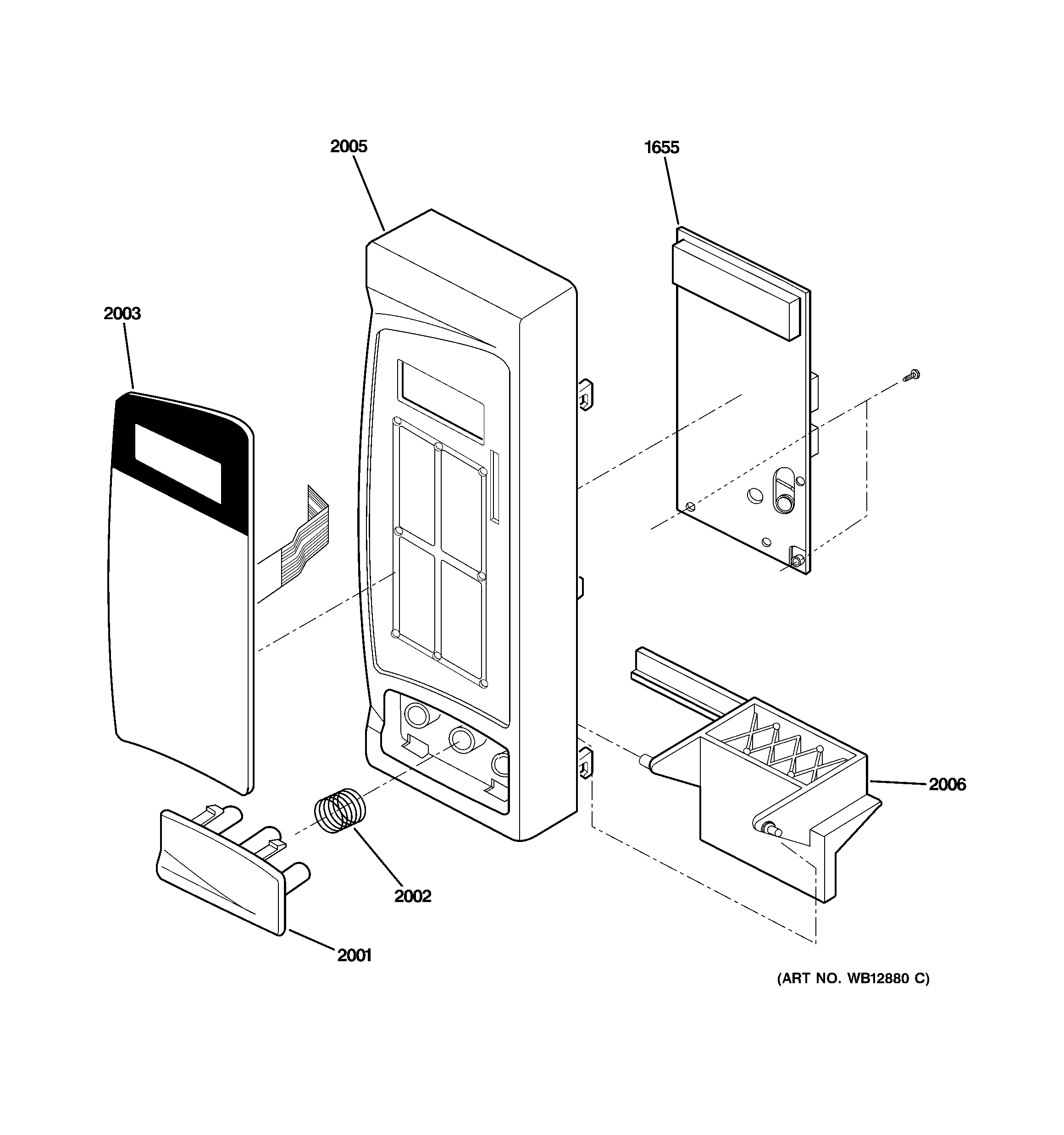

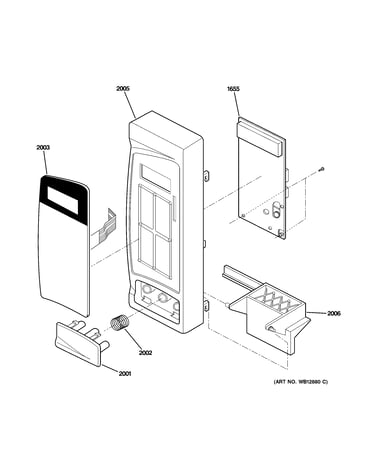

Controller parts diagram

Button spring

Part #WB09X10006

$8.69 |
10% OFF Phone Price : $9.69
In Stock
Sensor Ass'y WB24X10057
#8001

Interior parts (2) diagram

Sensor ass'y

Part #WB24X10057

$47.99
In Stock
