Model # 72189972590 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72189972590 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

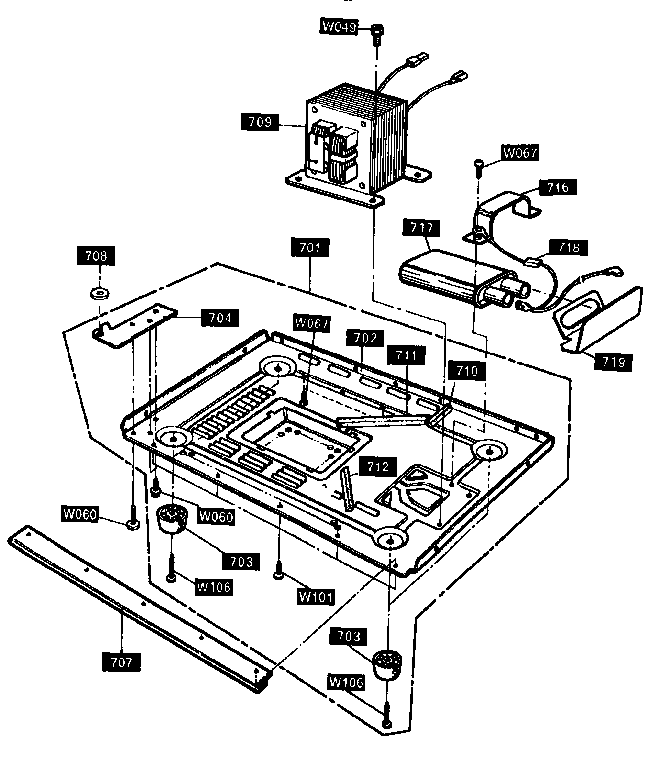

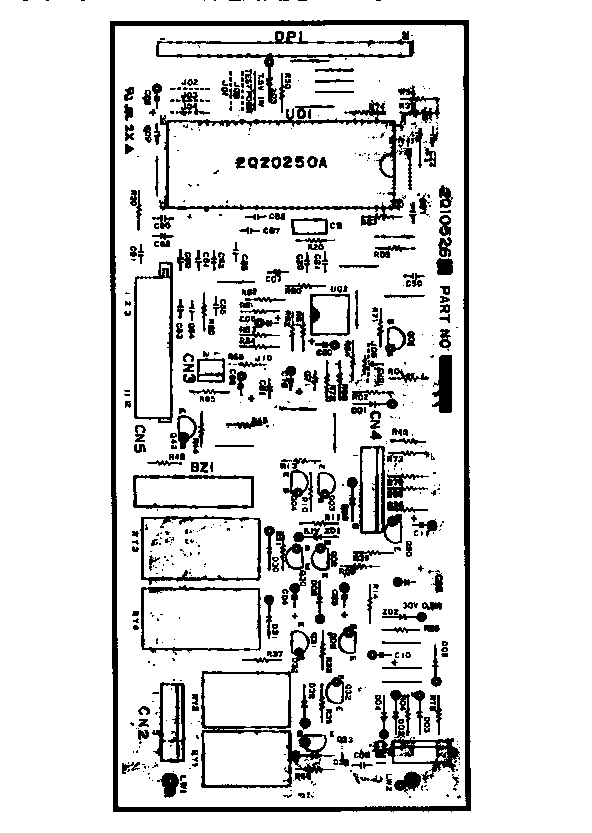

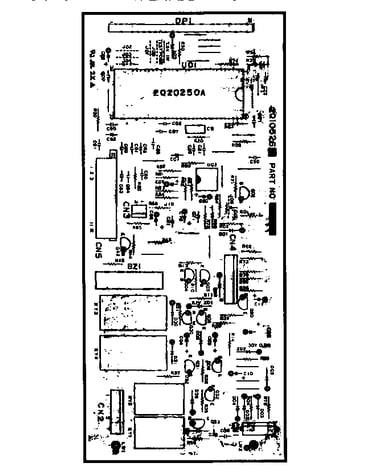

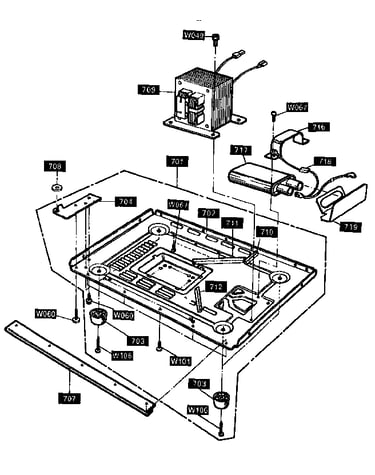

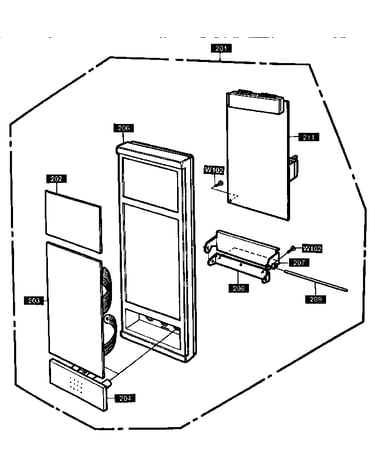

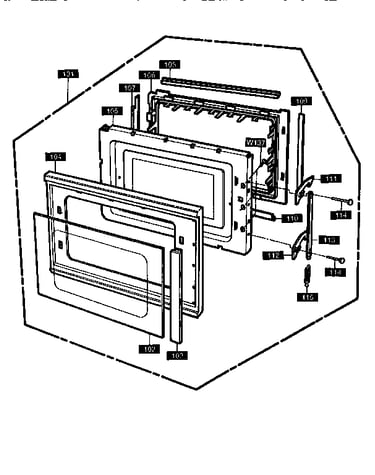

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Oven Switch 503387
#604

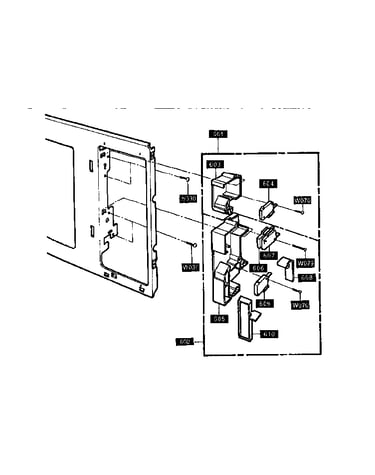

Switches diagram

Oven switch

Part #503387

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 503387. Substitute parts can look different from the original.
BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Goldstar Cooking Appliance Convection Fan Blade 3B72559A
#516

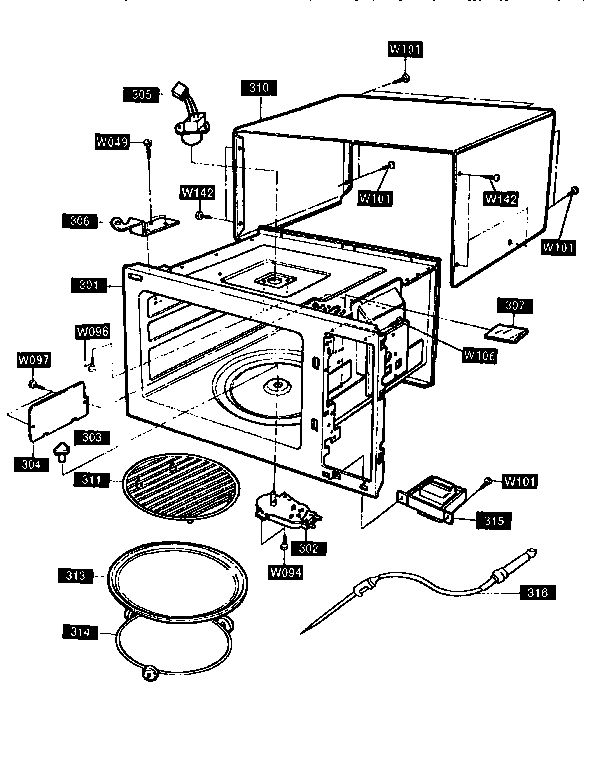

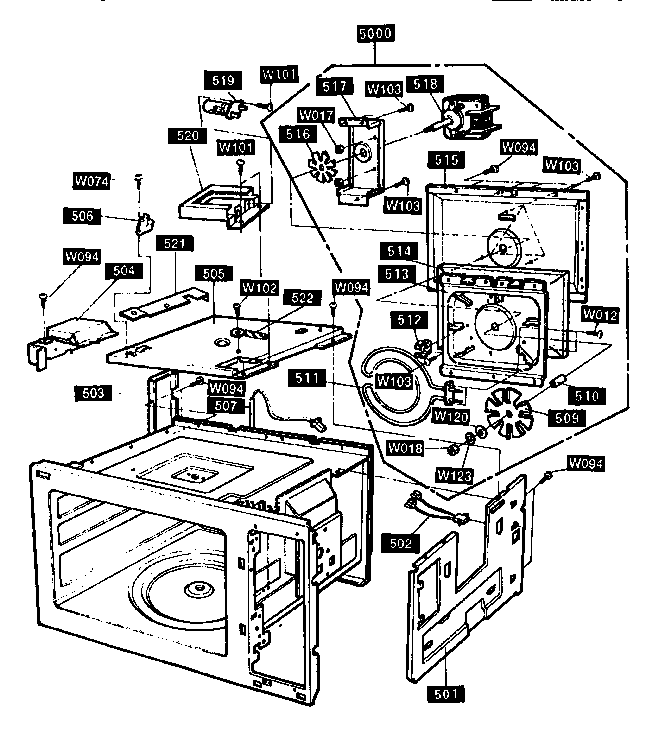

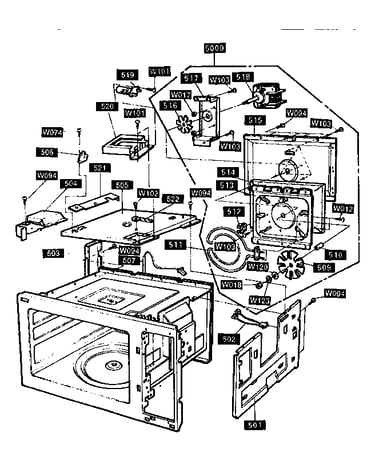

Oven interior diagram

Goldstar cooking appliance convection fan blade

Part #3B72559A

BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Thermostat 3B72542K
#506

Oven interior diagram

Thermostat

Part #3B72542K

Replaced by #6930W1A003R

?
Manufacturer substitution
This part replaces 3B72542K. Substitute parts can look different from the original.
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Thermostat 3B72543P
#409

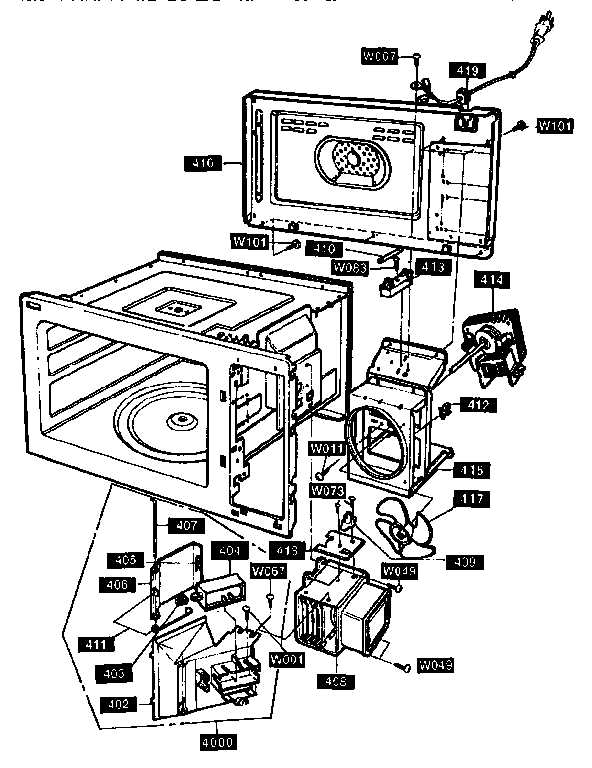

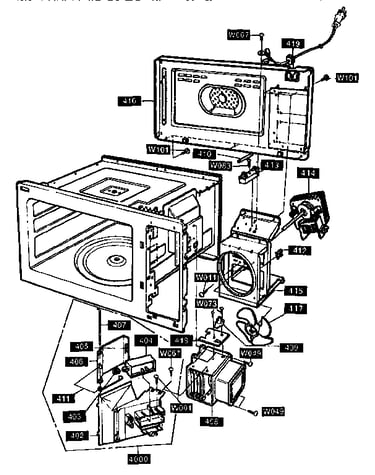

Oven interior parts diagram

Microwave thermostat

Part #3B72543P

Replaced by #6930W1A003R

?
Manufacturer substitution
This part replaces 3B72543P. Substitute parts can look different from the original.
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Goldstar Washer 1WSD0400032
#W123

Oven interior diagram

Goldstar washer

Part #1WSD0400032

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Switch 503388
#607

Switches diagram

Switch

Part #503388

The manufacturer no longer makes this part, and there's no substitute part

Truss Head 504672
Truss head

Part #504672

Replaced by #1TTG0402422

?
Manufacturer substitution
This part replaces 504672. Substitute parts can look different from the original.
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Screw 501098
Screw

Part #501098

Replaced by #1SBF0402418

?
Manufacturer substitution
This part replaces 501098. Substitute parts can look different from the original.
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Galaxy Screw 1TTL0402416
Galaxy screw

Part #1TTL0402416

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Magnetron 500859
#408

Oven interior parts diagram

Magnetron

Part #500859

The manufacturer no longer makes this part, and there's no substitute part

Effective articles & videos to help repair your microwaves
