Model # S5507 Official Hoover central vacuum

Here are the diagrams and repair parts for Official Hoover S5507 central vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |

Sweep 90 38681006
#4

Fittings diagram

Sweep 90

Part #38681006

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Floor Brush Attachment Swivel 38644020
#4

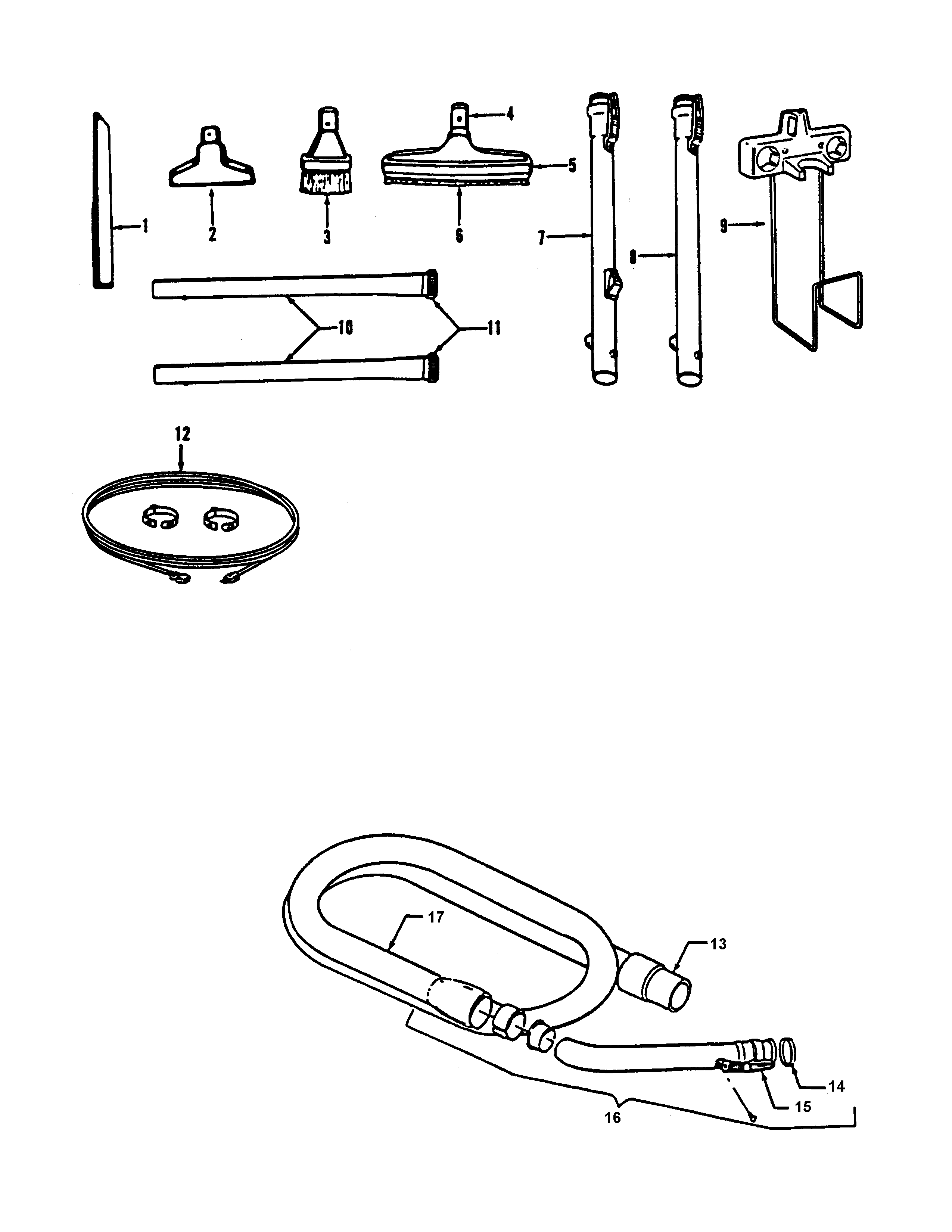

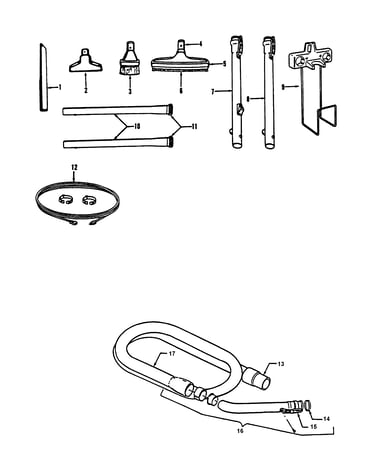

Hose, cleaningtools diagram

Kenmore vacuum floor brush attachment swivel

Part #38644020

The manufacturer no longer makes this part, and there's no substitute part

Coupling Stop 32286011
#8

Fittings diagram

Coupling stop

Part #32286011

The manufacturer no longer makes this part, and there's no substitute part

45 Spigot 10096002
#14

Fittings diagram

45 spigot

Part #10096002

The manufacturer no longer makes this part, and there's no substitute part

Fit Strap 36171019
#22

Fittings diagram

Fit strap

Part #36171019

The manufacturer no longer makes this part, and there's no substitute part

Pipe Strap 48615015
#6

Fittings diagram

Pipe strap

Part #48615015

The manufacturer no longer makes this part, and there's no substitute part

Sht Elbow 33215003
#3

Fittings diagram

Sht elbow

Part #33215003

The manufacturer no longer makes this part, and there's no substitute part

Elboow 90 33215002
#2

Fittings diagram

Elboow 90

Part #33215002

The manufacturer no longer makes this part, and there's no substitute part

Extension Tube 43453023
#7

Hose, cleaningtools diagram

Extension tube

Part #43453023

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Nozzle Roller 38521018
#4

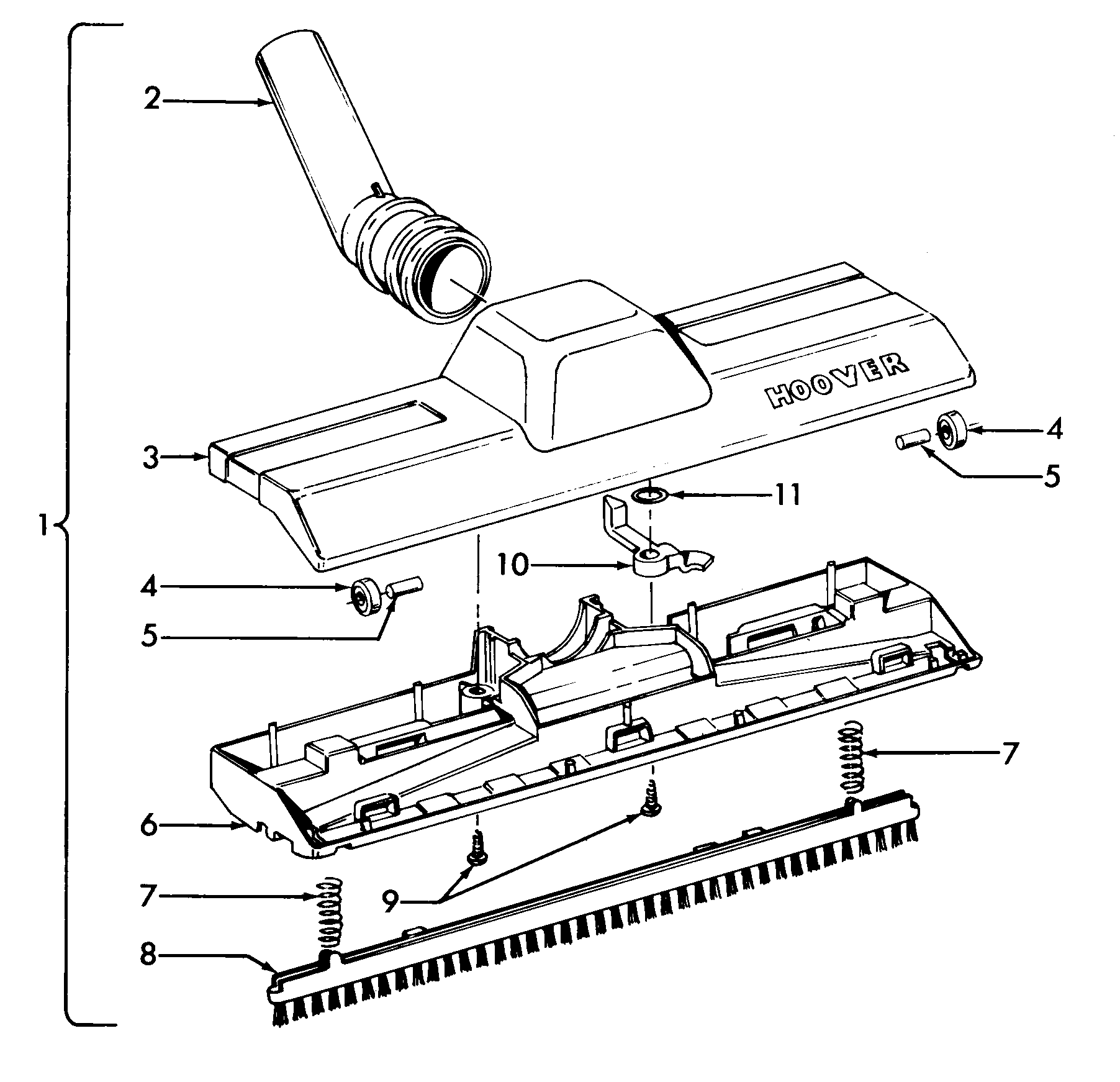

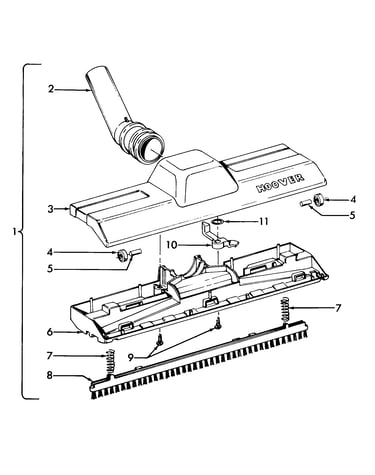

Rug_flrnozzle diagram

Vacuum floor nozzle roller

Part #38521018

The manufacturer no longer makes this part, and there's no substitute part
