Model # GVF35-4S Official Temco floor furnace

Here are the diagrams and repair parts for Official Temco GVF35-4S floor furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

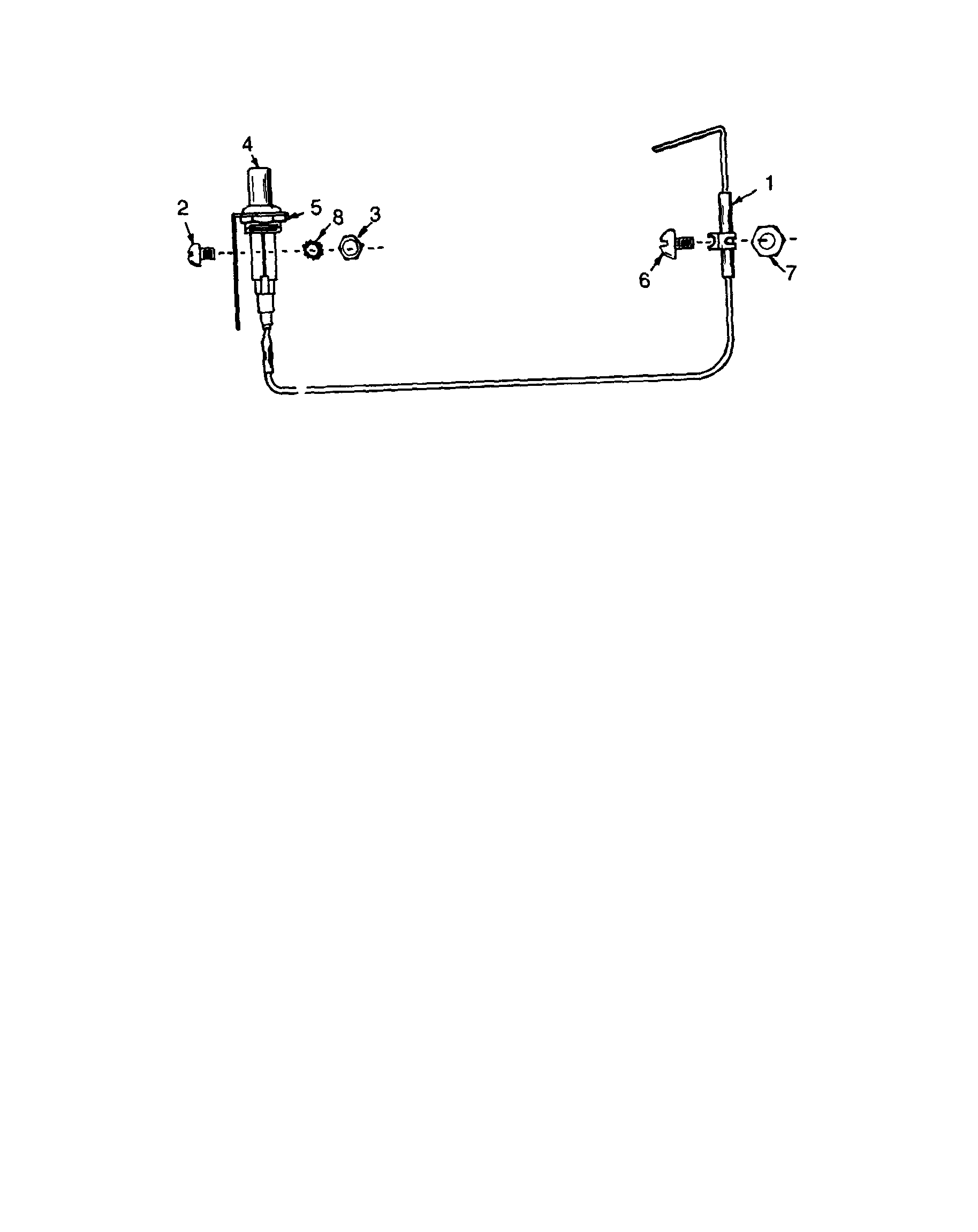

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Thermostat 5B45110
Thermostat

Part #5B45110

Replaced by #1E30N-910

?
Manufacturer substitution
This part replaces 5B45110. Substitute parts can look different from the original.
$81.43 |
7% OFF Phone Price : $87.43
In Stock
Pilot 1A49613
#39

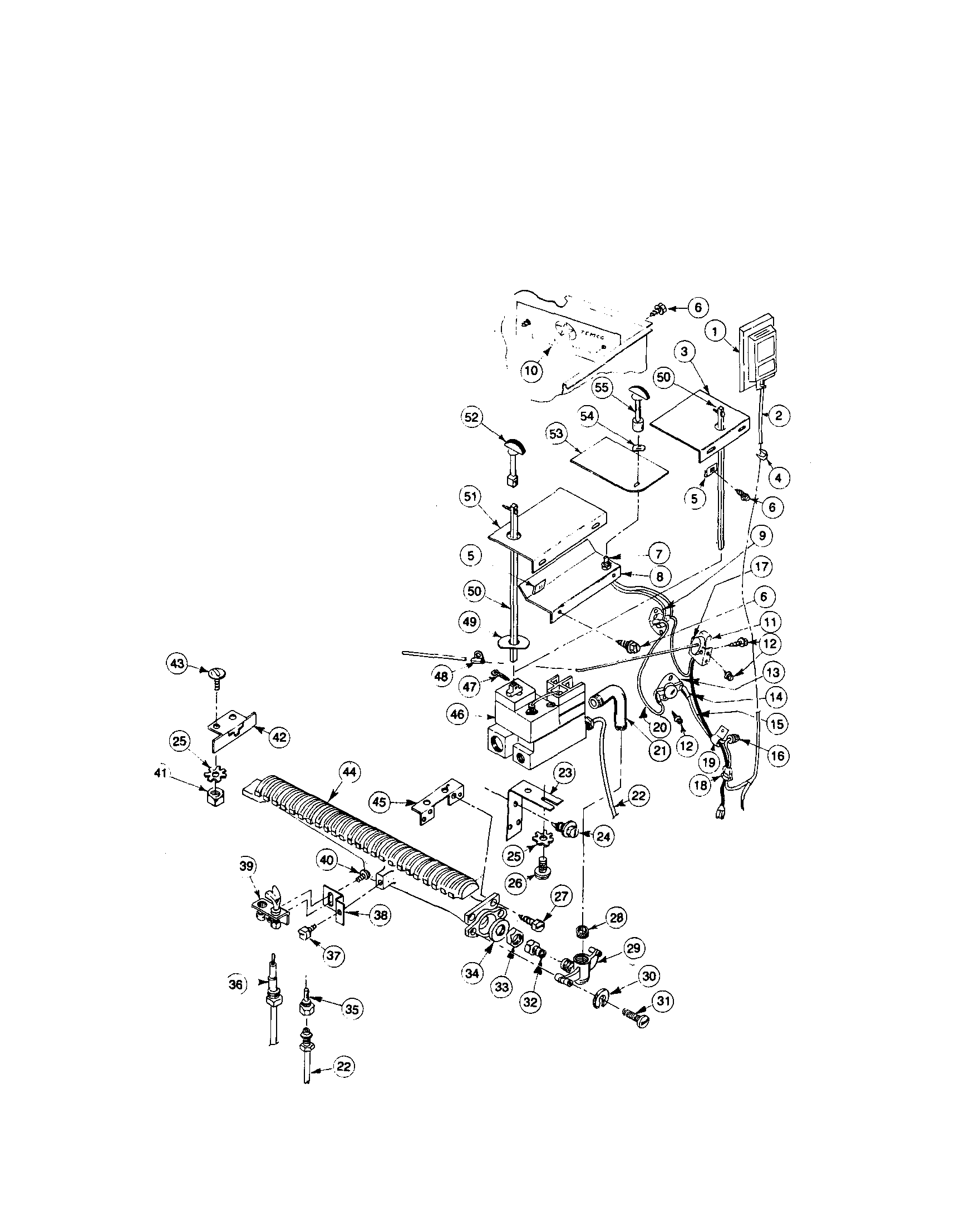

Burner and control assembly diagram

Pilot

Part #1A49613

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 5A64648
Gas valve

Part #5A64648

Replaced by #36C03U-433

?
Manufacturer substitution
This part replaces 5A64648. Substitute parts can look different from the original.
$508.17 |
$12.00 OFF Phone Price : $520.17
In Stock
Connect Wire 1A08278
Connect wire

Part #1A08278

Replaced by #STD375005

?
Manufacturer substitution
This part replaces 1A08278. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Furnace Generator 5A45112
Furnace generator

Part #5A45112

Replaced by #GO1A-332

?
Manufacturer substitution
This part replaces 5A45112. Substitute parts can look different from the original.
$66.49
In Stock
Switch 1A58785
Switch

Part #1A58785

Replaced by #3L01-300

?
Manufacturer substitution
This part replaces 1A58785. Substitute parts can look different from the original.
$10.31
In Stock
Gas Valve 5A64560
Gas valve

Part #5A64560

Replaced by #36C03U-433

?
Manufacturer substitution
This part replaces 5A64560. Substitute parts can look different from the original.
$508.17 |
$12.00 OFF Phone Price : $520.17
In Stock
Nameplate 7B58500
#10

Burner and control assembly diagram

Nameplate

Part #7B58500

The manufacturer no longer makes this part, and there's no substitute part

Exchanger 4D62342
#14A

Heat exchange/related sheet metal diagram

Exchanger

Part #4D62342

The manufacturer no longer makes this part, and there's no substitute part

Lp Gas Orifice 1A51128

#NI06

All parts diagram

Lp gas orifice

Part #1A51128

The manufacturer no longer makes this part, and there's no substitute part
