Maytag
Electric Water Heater

Model # HE21250PC Official Maytag water heater

Here are the diagrams and repair parts for Official Maytag HE21250PC water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Drain Valve 66001016
#7

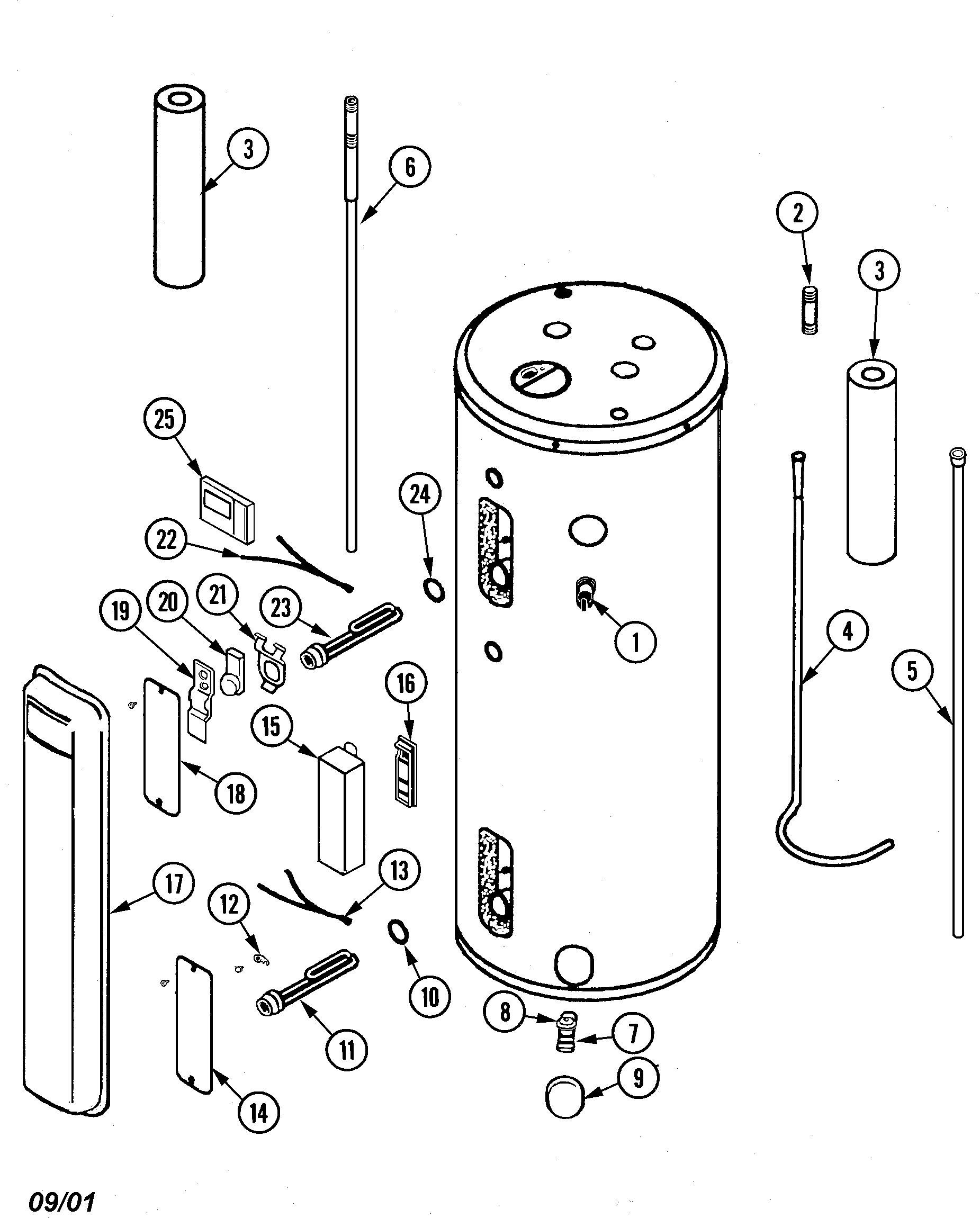

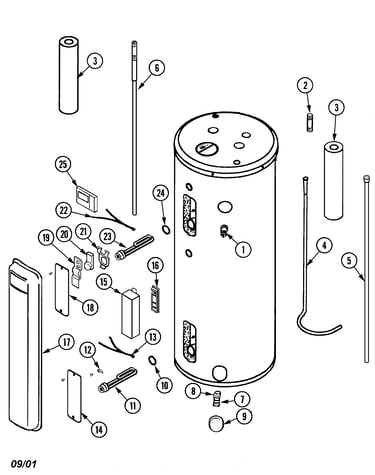

Body diagram

Drain valve

Part #66001016

The manufacturer no longer makes this part, and there's no substitute part

Elem Htg 550 66001107
#11A

Body diagram

Elem htg 550

Part #66001107

The manufacturer no longer makes this part, and there's no substitute part

Amana Room Air Conditioner NLA
#1

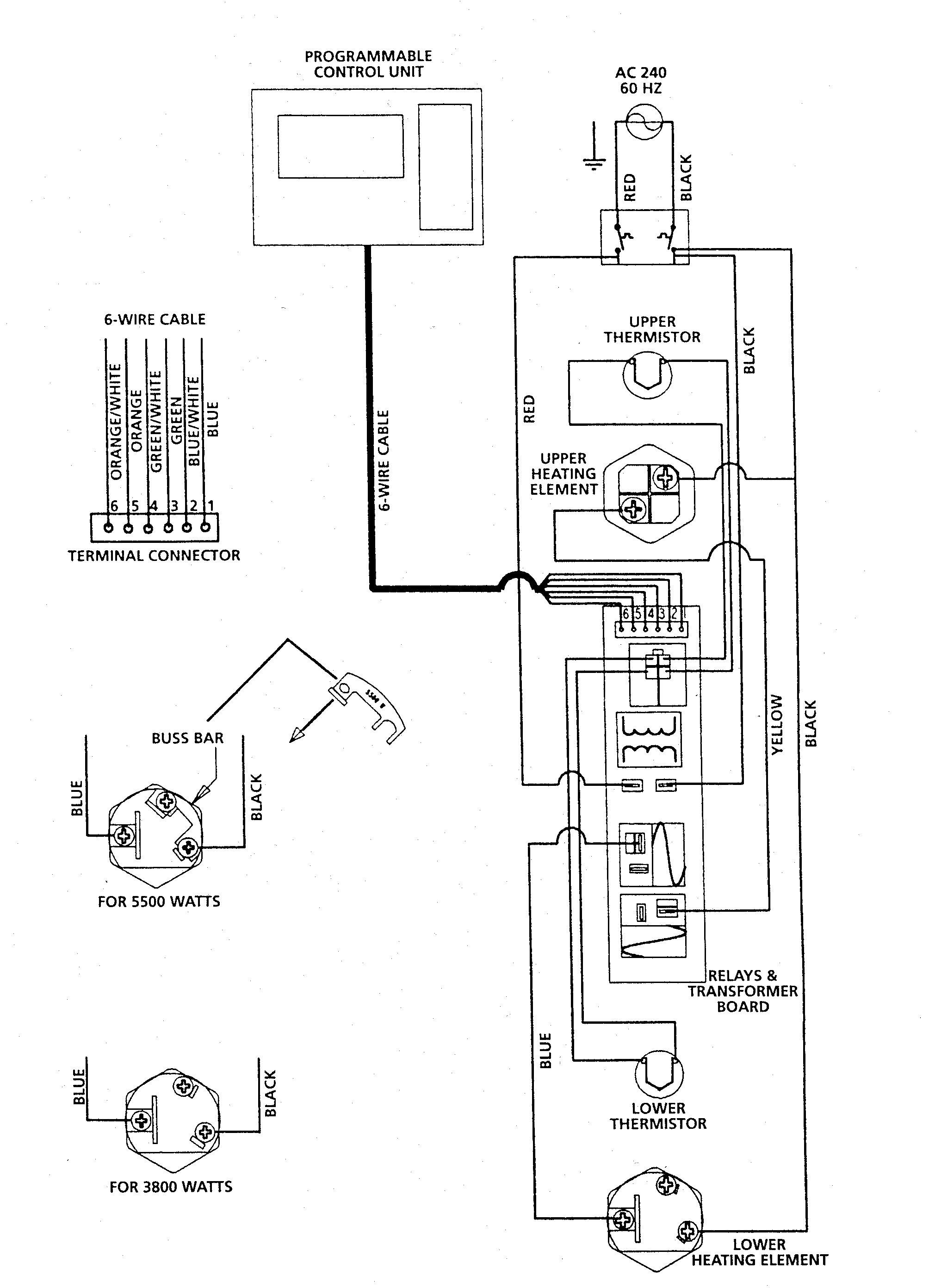

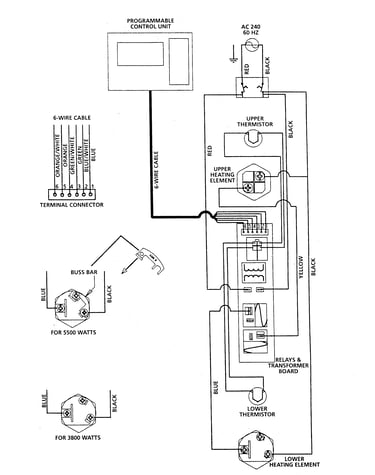

Wiring information diagram

Amana room air conditioner

Part #NLA

The manufacturer no longer makes this part, and there's no substitute part

Buss Bar Kit 66001055
#12

Body diagram

Buss bar kit

Part #66001055

The manufacturer no longer makes this part, and there's no substitute part

Hi-limit W/e 66001355
#20

Body diagram

Hi-limit w/e

Part #66001355

The manufacturer no longer makes this part, and there's no substitute part

Insulation 66001034
#3

Body diagram

Insulation

Part #66001034

The manufacturer no longer makes this part, and there's no substitute part

Cable, Remot 66001357
#26

Body diagram

Cable, remot

Part #66001357

The manufacturer no longer makes this part, and there's no substitute part

Temperature Sensor 66001358
Temperature sensor

Part #66001358

The manufacturer no longer makes this part, and there's no substitute part

Elem Htg 380 66001106
Elem htg 380

Part #66001106

The manufacturer no longer makes this part, and there's no substitute part

Element Gasket 66001053
Element gasket

Part #66001053

The manufacturer no longer makes this part, and there's no substitute part
