Model # 42LB5600 Official LG led television

Here are the diagrams and repair parts for Official LG 42LB5600 led television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |

Television Stand Assembly AAN74354604
#900

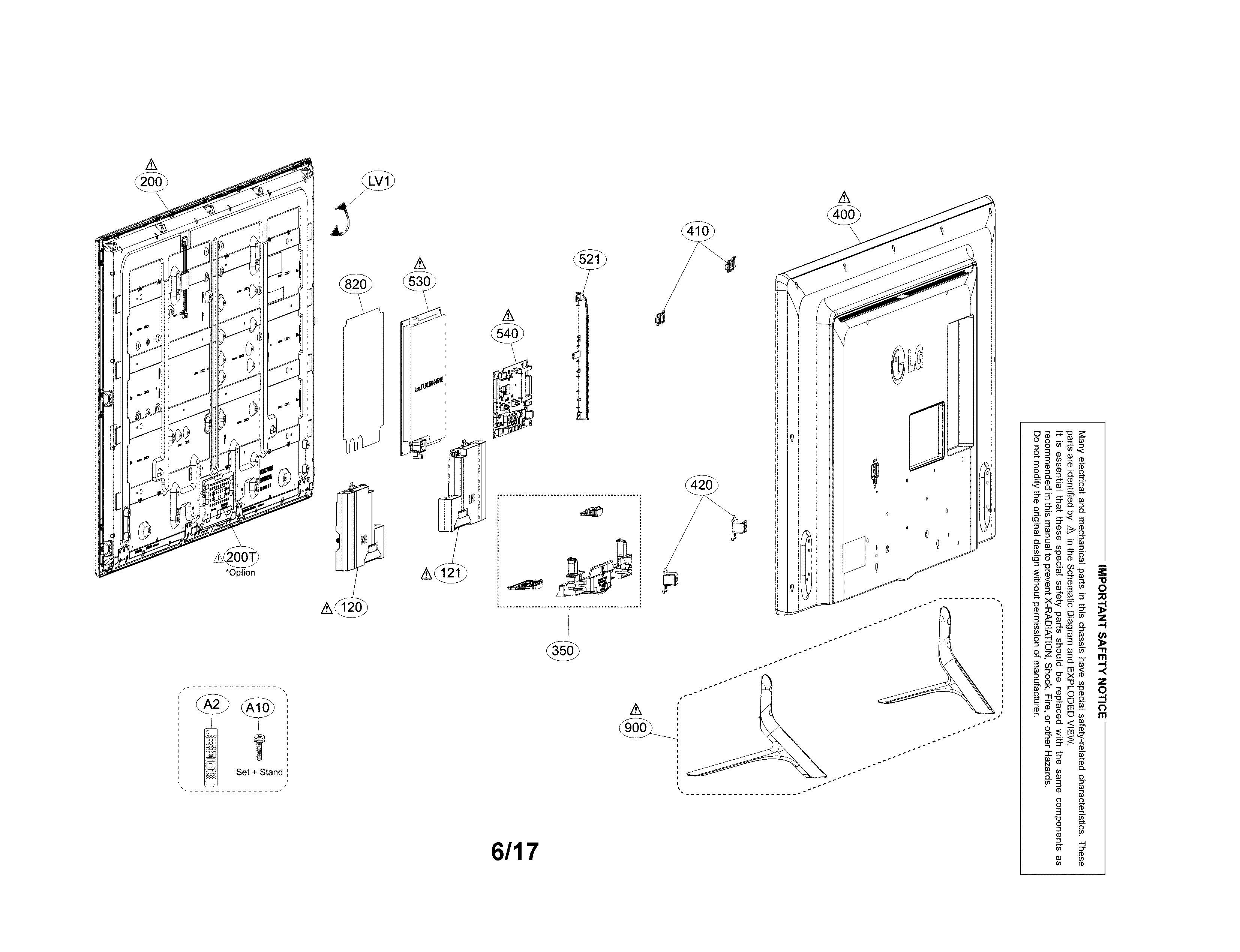

Exploded view parts diagram

Television stand assembly

Part #AAN74354604

Replaced by #AAN74354603

?
Manufacturer substitution
This part replaces AAN74354604. Substitute parts can look different from the original.
In Stock
Lvds Cable EAD62572202
#LV1

Exploded view parts diagram

Lvds cable

Part #EAD62572202

In Stock
Television Speaker EAB62972101
#121

Exploded view parts diagram

Television speaker

Part #EAB62972101

In Stock
T-con EAT62473501
#200T

Exploded view parts diagram

T-con

Part #EAT62473501

In Stock
Cover Assembly ACQ86682629
#350

Exploded view parts diagram

Cover assembly

Part #ACQ86682629

In Stock
Television Remote Control AGF76631012
#A2

Exploded view parts diagram

Television remote control

Part #AGF76631012

In Stock
Television Stand Base Screw FAB30016124
#A10

Exploded view parts diagram

Television stand base screw

Part #FAB30016124

This item is not returnable
$2.73
27% OFF Phone Price : $3.73
In Stock
Power Supply EAY63071901
#530

Exploded view parts diagram

Power supply

Part #EAY63071901

In Stock
Chassis Assembly EBT62874504
#540

Exploded view parts diagram

Chassis assembly

Part #EBT62874504

The manufacturer no longer makes this part, and there's no substitute part

Bracket MAZ63925531
#521

Exploded view parts diagram

Bracket

Part #MAZ63925531

The manufacturer no longer makes this part, and there's no substitute part
