Model # CGN28TB Official Desa heater

Here are the diagrams and repair parts for Official Desa CGN28TB heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

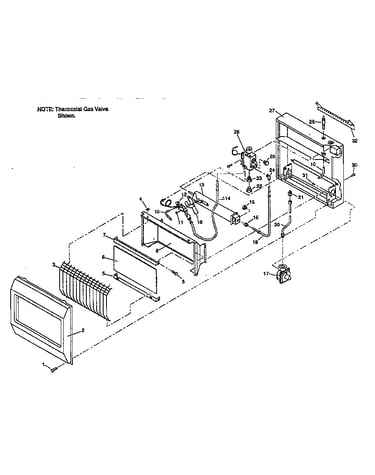

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Cabinet 098531-01
#27

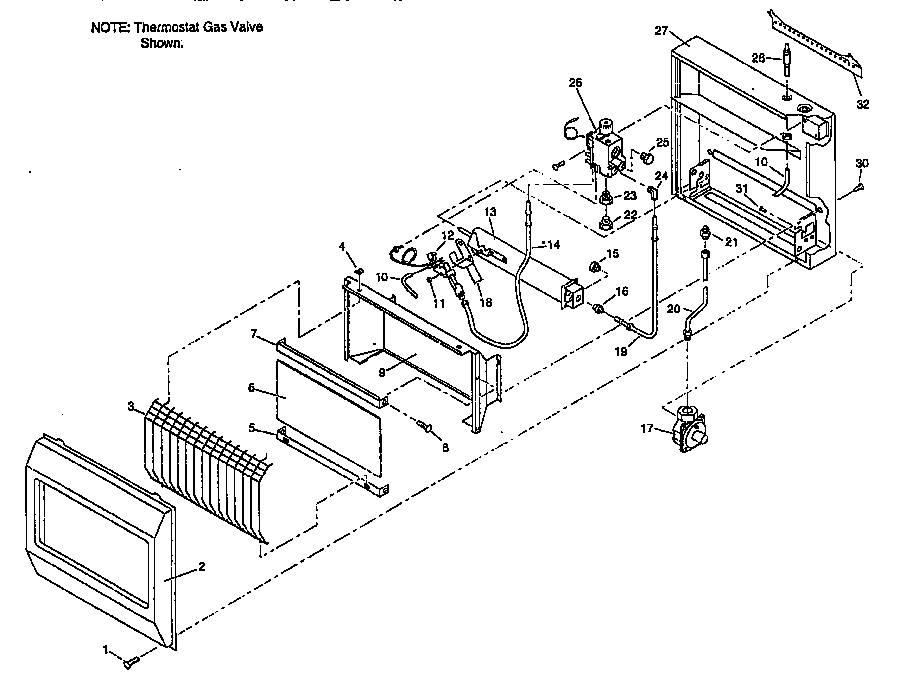

Replacement parts diagram

Cabinet

Part #098531-01

The manufacturer no longer makes this part, and there's no substitute part

Retainer 098533-02AA
#5

Replacement parts diagram

Retainer

Part #098533-02AA

The manufacturer no longer makes this part, and there's no substitute part

Wall Heater Thermocouple 098514-01
#12-1

Replacement parts diagram

Wall heater thermocouple

Part #098514-01

The manufacturer no longer makes this part, and there's no substitute part

Electrode 098515-01
#12-2

Replacement parts diagram

Electrode

Part #098515-01

The manufacturer no longer makes this part, and there's no substitute part

Stainless Pilot 099126-02
#13

Replacement parts diagram

Stainless pilot

Part #099126-02

The manufacturer no longer makes this part, and there's no substitute part

Injector 098251-04
#15

Replacement parts diagram

Injector

Part #098251-04

The manufacturer no longer makes this part, and there's no substitute part

1/8 Npt Plug 098276-01
#22

Replacement parts diagram

1/8 npt plug

Part #098276-01

The manufacturer no longer makes this part, and there's no substitute part

Piezo Ingitr 097259-01
#28

Replacement parts diagram

Piezo ingitr

Part #097259-01

The manufacturer no longer makes this part, and there's no substitute part

Cnnctr Male 098264-02
#21

Replacement parts diagram

Cnnctr male

Part #098264-02

The manufacturer no longer makes this part, and there's no substitute part

Shield Pilot 099553-01
#18

Replacement parts diagram

Shield pilot

Part #099553-01

The manufacturer no longer makes this part, and there's no substitute part
