Model # UH70040 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH70040 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Vacuum Beater Bar Belt (replaces 11041084, 38520835) 38528035
#11

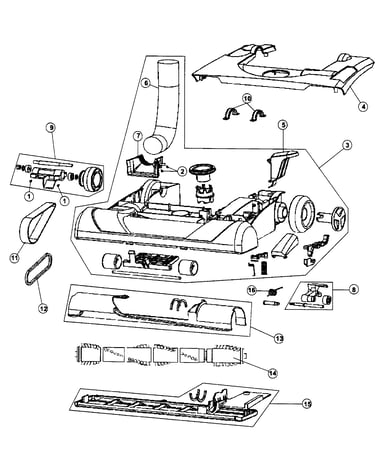

Base assy diagram

Vacuum beater bar belt (replaces 11041084, 38520835)

Part #38528035

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Holder Switch 93001703
#20

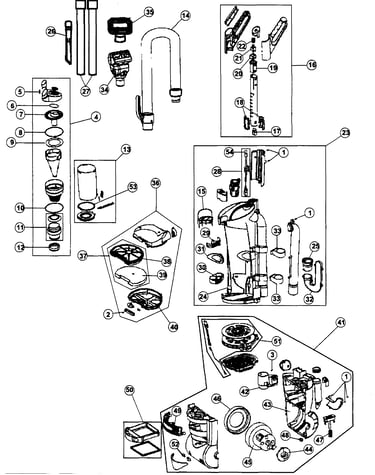

Main body diagram

Holder switch

Part #93001703

The manufacturer no longer makes this part, and there's no substitute part

Bonus Hose 93002362
#14A

Main body diagram

Bonus hose

Part #93002362

The manufacturer no longer makes this part, and there's no substitute part

Motor Plate 93001677
#44

Main body diagram

Motor plate

Part #93001677

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Base 93005500
#3

Base assy diagram

Nozzle base

Part #93005500

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Idler Arm Pulley Assembly 93005400
#9

Base assy diagram

Vacuum idler arm pulley assembly

Part #93005400

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Safety Filter 93002518
#39

Main body diagram

Vacuum motor safety filter

Part #93002518

The manufacturer no longer makes this part, and there's no substitute part

Female Control 93001717
#54

Main body diagram

Female control

Part #93001717

The manufacturer no longer makes this part, and there's no substitute part

Cycln Duct 93001650
#7

Main body diagram

Cycln duct

Part #93001650

The manufacturer no longer makes this part, and there's no substitute part

Male Connection 93001700
#17

Main body diagram

Male connection

Part #93001700

The manufacturer no longer makes this part, and there's no substitute part
