Nordyne
Central Air Conditioner

Model # T3QC030 Official Nordyne heat pump

Here are the diagrams and repair parts for Official Nordyne T3QC030 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Thermostat 626520
#NI

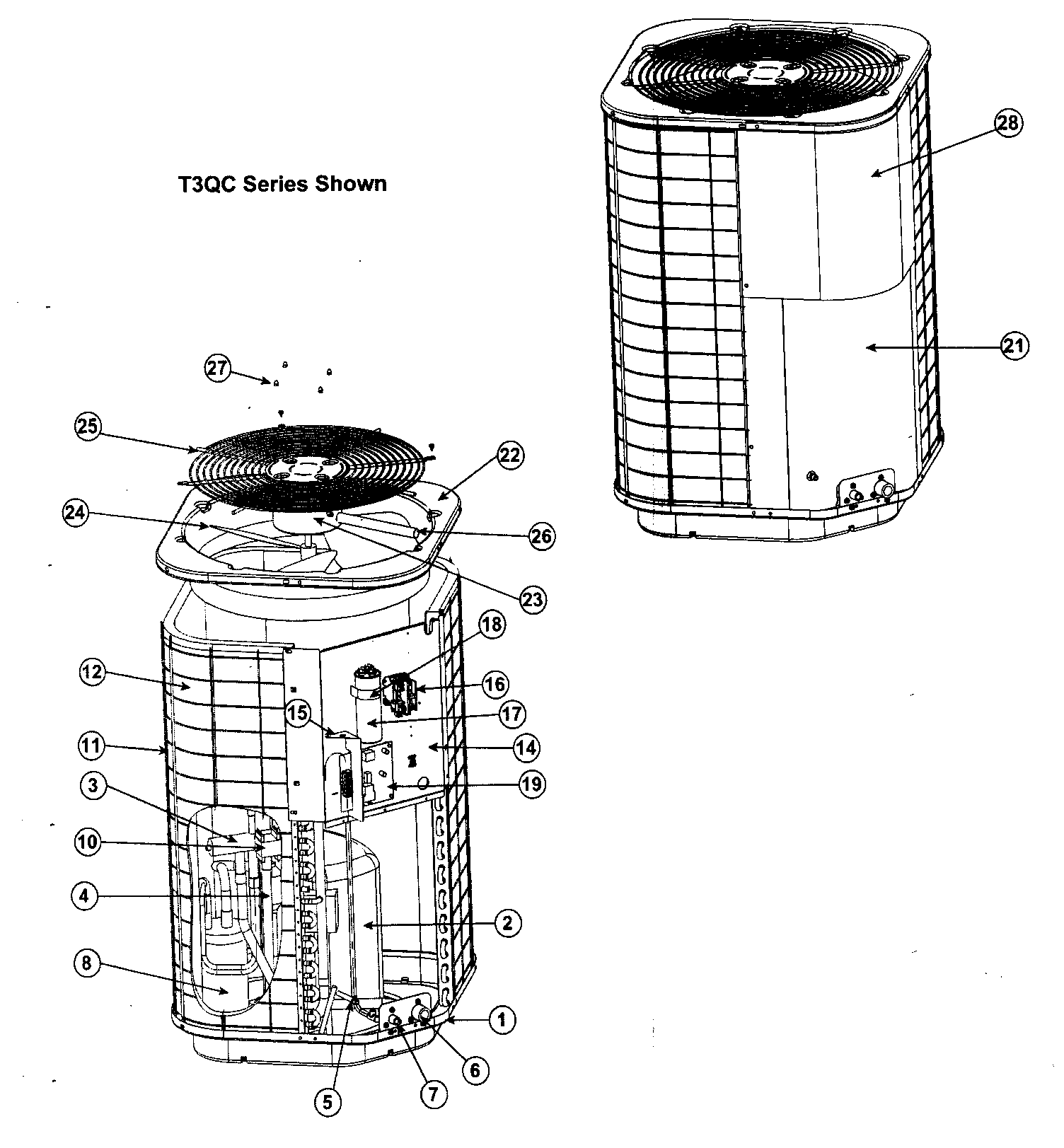

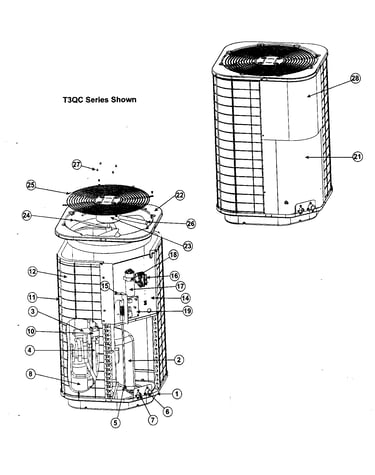

Heat pump diagram

Thermostat

Part #626520

The manufacturer no longer makes this part, and there's no substitute part

Compressor 914654
#2

Heat pump diagram

Compressor

Part #914654

The manufacturer no longer makes this part, and there's no substitute part

Cap Strap 258780
#18

Heat pump diagram

Cap strap

Part #258780

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Condenser Fan Motor 621911
#23

Heat pump diagram

Central air conditioner condenser fan motor

Part #621911

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Condenser Fan Blade 667303
#24

Heat pump diagram

Central air conditioner condenser fan blade

Part #667303

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 620763
#17

Heat pump diagram

Capacitor

Part #620763

The manufacturer no longer makes this part, and there's no substitute part

Defrst Therm 626342
#NI

Heat pump diagram

Defrst therm

Part #626342

The manufacturer no longer makes this part, and there's no substitute part

Connector 663394
#NI

Heat pump diagram

Connector

Part #663394

The manufacturer no longer makes this part, and there's no substitute part

Contactor 621661
#16

Heat pump diagram

Contactor

Part #621661

The manufacturer no longer makes this part, and there's no substitute part

Revers Valve 668767
#3

Heat pump diagram

Revers valve

Part #668767

The manufacturer no longer makes this part, and there's no substitute part
